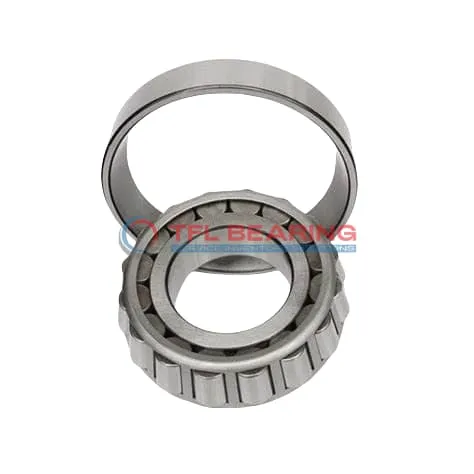

TS (Single Row Tapered Roller Bearings) (Imperial) 387A-382

TS (Single Row Tapered Roller Bearings) (Imperial) 387A-382

The 387A-382 is a single-row tapered roller bearing with a 2.25″ bore and 3.875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 24200 lbf radially and 3810 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery like gearboxes or axles where combined loads are common.

Weighing 1.4 lb, it balances strength and manageability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The standard radial clearance can be adjusted to C3, C4, or C5 for specific needs. Its ABEC-1 rating ensures consistent performance in industrial settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 387A-382
  • Brand TFL
  • Interchangeable Timken
  • Size 2.25" x 3.875" x 0.8268"
  • Bore Dia 2.25"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.864"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7018"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8268"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.48"
  • Cone Backface Backing Diameter 2.76"
  • Cup Frontface Backing Diameter 3.66"
  • Cup Backface Backing Diameter 3.54"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 387A
  • Cup Part Number 382
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 385
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24200 lbf
  • Static Radial Load 24100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6280 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3810 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.400 lb

Features

Performance Features of 387A-382 Bearing

387A-382 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24,200 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

387A-382 Bearing requires lubrication, which helps maintain smooth operation over time.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of 387A-382 Bearing
387A-382 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 387A-382 Bearing Used?
You’ll often find 387A-382 Bearing in automotive applications like truck wheel hubs, where its ability to manage radial and thrust loads keeps things running smoothly. Its inch sizing makes it a good fit for North American vehicles.

Built for Heavy-Duty Use: 387A-382 Bearing
387A-382 Bearing excels in industrial settings like conveyor systems, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it reliable for long-term use.

Automotive vs Aerospace: Applications of 387A-382 Bearing
In automotive systems, 387A-382 Bearing supports wheel assemblies, while in aerospace, it’s used in auxiliary gearboxes. Its ABEC-1 rating ensures consistent performance across different industries.

Perfect Fit for Automation: 387A-382 Bearing
387A-382 Bearing works well in automated machinery, such as packaging lines, where precision and load capacity are key. The standard radial clearance option makes it versatile for various setups.
