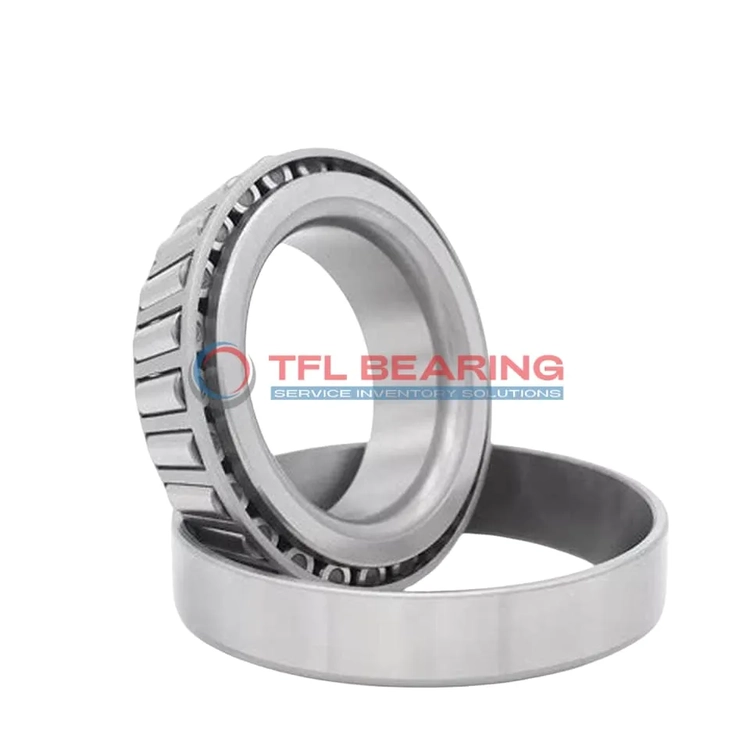

TS (Single Row Tapered Roller Bearings) (Imperial) 385X-383X

TS (Single Row Tapered Roller Bearings) (Imperial) 385X-383X

The 385X-383X is a single-row tapered roller bearing with a 2.1654″ bore and 3.937″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 24200 lbf radially and 3810 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are present.

Weighing 1.7 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 385X-383X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.1654" x 3.937" x 1.0001"
  • Bore Dia 2.1654"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.937"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.864"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0001"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 2.4"
  • Cone Backface Backing Diameter 2.64"
  • Cup Frontface Backing Diameter 3.68"
  • Cup Backface Backing Diameter 3.50"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 385X
  • Cup Part Number 383X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 385
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24200 lbf
  • Static Radial Load 24100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6280 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3810 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.7 lb

Features

Performance Features of 385X-383X Bearing

385X-383X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24,200 lbf, ensuring reliable performance in demanding conditions.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

385X-383X Bearing’s standard radial clearance allows for smooth operation under different load conditions.
Its ABEC-1 rating ensures consistent precision for industrial applications.

Application

Industrial Uses of 385X-383X Bearing
385X-383X Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in demanding environments.

Where Is 385X-383X Bearing Used?
You’ll find 385X-383X Bearing in automotive applications, particularly in wheel hubs and differentials, where its precise tolerances and load capacity are essential. Its inch sizing makes it a fit for many North American vehicles.

Built for Heavy-Duty Use: 385X-383X Bearing
In industrial gearboxes, 385X-383X Bearing provides reliable performance under high loads and speeds. The open design allows for easy lubrication, extending its service life in continuous operation.

Automotive vs Aerospace: Applications of 385X-383X Bearing
While 385X-383X Bearing excels in automotive systems like axles, it’s also suitable for aerospace ground support equipment. Its ABEC-1 rating ensures consistent performance in both fields.

Perfect Fit for Automation: 385X-383X Bearing
385X-383X Bearing works well in automated conveyor systems, where its tapered rollers manage varying loads smoothly. The steel cage adds stability, making it a dependable choice for repetitive motion.
