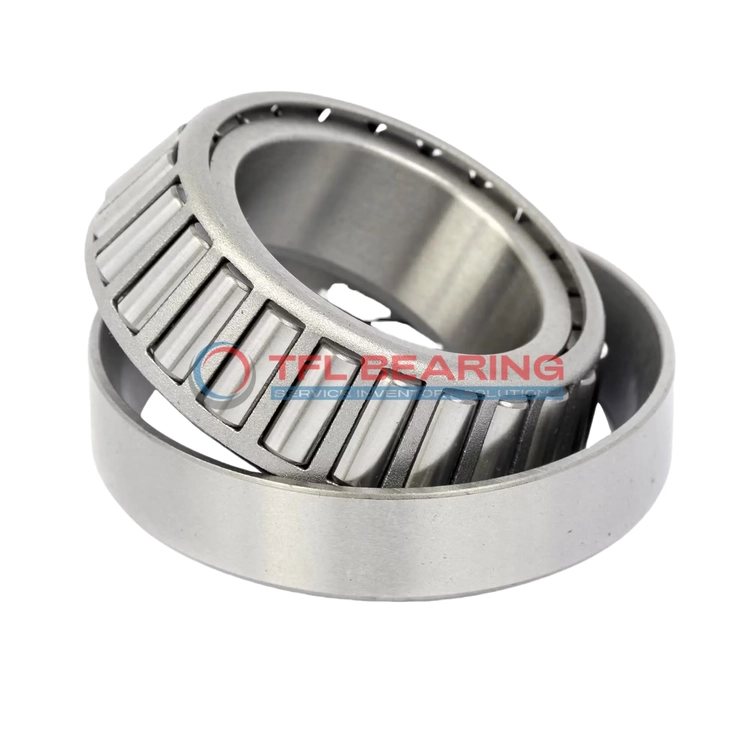

TS (Single Row Tapered Roller Bearings) (Imperial) 3776-3733

TS (Single Row Tapered Roller Bearings) (Imperial) 3776-3733

The 3776-3733 is a single-row tapered roller bearing with a 1.771″ bore and 3.9385″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 27500 lbf radially and 4120 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 2.5 lb, it balances strength and manageability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3776-3733
  • Brand TFL
  • Interchangeable Timken
  • Size 1.771" x 3.9385" x 1.1876"
  • Bore Dia 1.771"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.9385"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.193"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1876"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.09"
  • Cone Backface Backing Diameter 2.32"
  • Cup Frontface Backing Diameter 3.62"
  • Cup Backface Backing Diameter 3.43"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.06"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 3776
  • Cup Part Number 3733
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 3700
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 27500 lbf
  • Static Radial Load 34300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7120 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 4120 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.5 lb

Features

Performance Features of 3776-3733 Bearing

3776-3733 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 27,500 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

3776-3733 Bearing’s standard radial clearance allows for flexibility in different operating conditions.
Its ABEC-1 rating ensures consistent precision for industrial applications.

Application

Industrial Uses of 3776-3733 Bearing
The 3776-3733 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough conditions.

Where Is 3776-3733 Bearing Used?
You’ll often find the 3776-3733 Bearing in automotive applications like wheel hubs and differentials, thanks to its ability to manage both radial and thrust loads. The inch sizing makes it a fit for many North American vehicle models.

Built for Heavy-Duty Use: 3776-3733 Bearing
In industrial settings, the 3776-3733 Bearing excels in conveyor systems and gearboxes, where its open design allows for easy lubrication. The steel cage adds stability, even under high stress.

Automotive vs Aerospace: Applications of 3776-3733 Bearing
While the 3776-3733 Bearing is popular in trucks and tractors, its precision also suits aerospace components like landing gear. The ABEC-1 rating ensures reliable performance across different industries.

Perfect Fit for Automation: 3776-3733 Bearing
The 3776-3733 Bearing works well in robotic arms and assembly lines, where smooth rotation is key. Its standard radial clearance offers flexibility for various automation needs.
