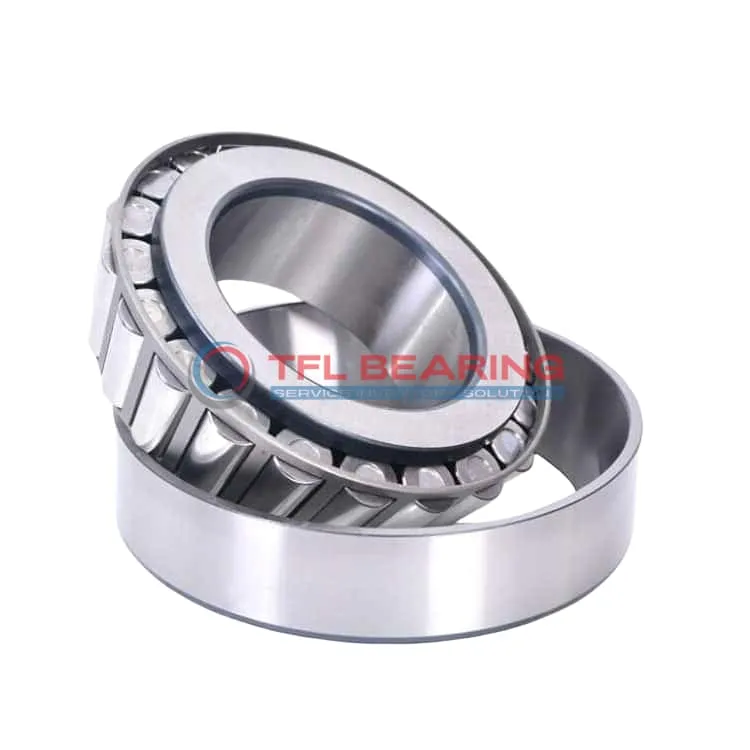

TS (Single Row Tapered Roller Bearings) (Imperial) 375-372A

TS (Single Row Tapered Roller Bearings) (Imperial) 375-372A

The 375-372A is a single-row tapered roller bearing with a 2″ bore and 3.8125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 23400 lbf radially and 3520 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or wheel hubs where combined loads are common.

Weighing 1.6 lb, it balances strength and manageability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 375-372A
  • Brand TFL
  • Interchangeable Timken
  • Size 2" x 3.8125" x 0.875"
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.8125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 2.24"
  • Cone Backface Backing Diameter 2.36"
  • Cup Frontface Backing Diameter 3.56"
  • Cup Backface Backing Diameter 3.39"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.15"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 375
  • Cup Part Number 372A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 375
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 23400 lbf
  • Static Radial Load 22700 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6070 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3520 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.6 lb

Features

Performance Features of 375-372A Bearing

375-372A Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 23,400 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures smooth operation and efficient load distribution.
With a standard radial clearance, it provides reliable performance in various conditions.

375-372A Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
Its steel cage maintains roller alignment, reducing wear and extending service life.

The bearing requires lubrication but offers long-lasting durability in demanding environments.
Its ABEC-1 rating ensures consistent performance for industrial applications.

Application

Industrial Uses of 375-372A Bearing
The 375-372A Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

Where Is 375-372A Bearing Used?
You’ll often find 375-372A Bearing in automotive applications like wheel hubs and differentials, where its precise tolerances and load capacity keep things running smoothly. The imperial sizing makes it a natural fit for North American vehicles.

Built for Heavy-Duty Use: 375-372A Bearing
375-372A Bearing excels in industrial fans and pumps, thanks to its robust steel cage and tapered rollers. The open design allows for easy lubrication, extending its service life in demanding environments.

Automotive vs Aerospace: Applications of 375-372A Bearing
In automotive settings, 375-372A Bearing supports drivetrain components, while in aerospace, it’s trusted for auxiliary systems due to its reliability. The ABEC-1 rating ensures consistent performance across both fields.

Perfect Fit for Automation: 375-372A Bearing
375-372A Bearing is a solid choice for conveyor systems and robotic arms, where its combined load capacity and standard radial clearance ensure smooth operation. The steel cage adds extra stability for high-use scenarios.
