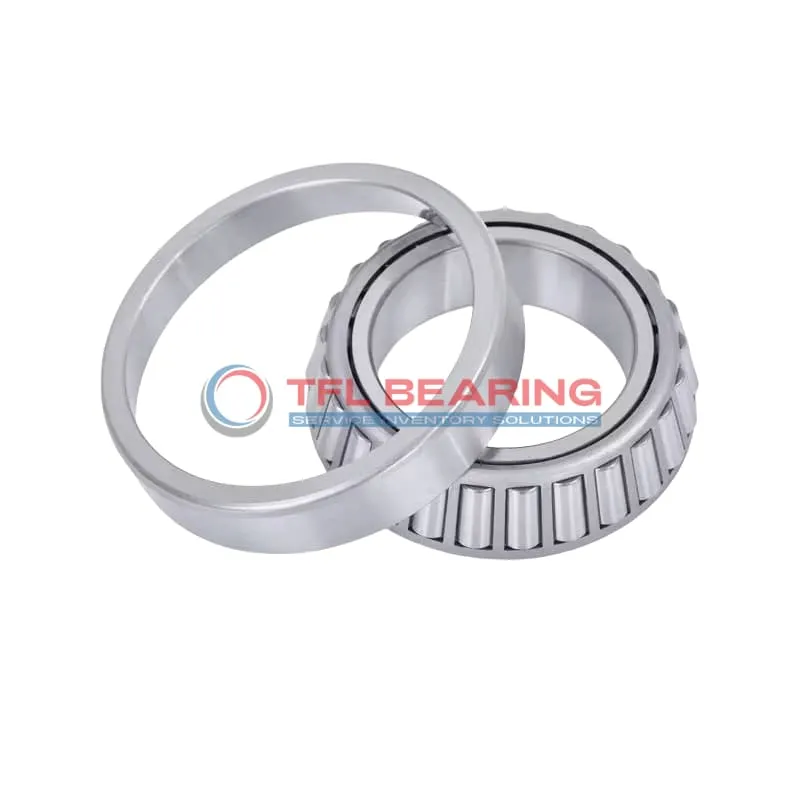

TS (Single Row Tapered Roller Bearings) (Imperial) 369-S-362

TS (Single Row Tapered Roller Bearings) (Imperial) 369-S-362

The 369-S-362 is a single-row tapered roller bearing with a 1.875″ bore and 3.5433″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 22900 lbf radially and 3250 lbf thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in heavy machinery or automotive systems where combined loads are common.

Weighing just 1.2 lb, it offers a balance of strength and portability. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 369-S-362
  • Brand TFL
  • Interchangeable Timken
  • Size 1.875" x 3.5433" x 0.7874"
  • Bore Dia 1.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5433"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7874"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 2.09"
  • Cone Backface Backing Diameter 2.24"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.19"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 369-S
  • Cup Part Number 362
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.2 lb

Features

How Is 369-S-362 Bearing Engineered for Reliability?

369-S-362 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,900 lbf, ensuring dependable performance in tough conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Why Choose 369-S-362 Bearing for Precision Tasks?

369-S-362 Bearing features precise cone and cup width tolerances, ensuring accurate alignment.
The tapered roller design efficiently handles both radial and thrust loads.
Its ABEC-1 rating guarantees consistent performance for precision applications.
The standard radial clearance option allows for flexibility in different setups.

Built for Durability: 369-S-362 Bearing

369-S-362 Bearing’s chrome steel construction provides excellent wear resistance.
The single-row design simplifies installation while maintaining high load capacity.
With a static radial load rating of 21,500 lbf, it ensures long-term reliability.
The open seal type allows for easy lubrication and maintenance.

What Makes 369-S-362 Bearing Suitable for High-Temperature Applications?

369-S-362 Bearing operates effectively in temperatures ranging from -30° to 110°C.
The chrome steel material maintains its strength even in demanding thermal conditions.
Proper lubrication ensures smooth performance across the entire temperature range.
This makes it ideal for applications where temperature fluctuations are common.

Steel vs Ceramic Bearings: Strengths of 369-S-362 Bearing

369-S-362 Bearing uses high-quality chrome steel for both rings and rollers.
This material choice provides excellent durability at a competitive cost.
The steel construction offers reliable performance in industrial applications.
It balances strength and affordability better than ceramic alternatives for many uses.

Application

Industrial Uses of 369-S-362 Bearing
369-S-362 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

What Makes 369-S-362 Bearing a Preferred Choice?
In automotive applications, 369-S-362 Bearing fits well in wheel hubs and differential systems, thanks to its precise inch sizing and robust load capacity. Its open design simplifies lubrication, extending service life in high-mileage scenarios.

Built for Heavy-Duty Use: 369-S-362 Bearing
For industrial conveyor systems, 369-S-362 Bearing offers reliable performance with its standard radial clearance and ABEC-1 rating. The steel cage adds stability, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of 369-S-362 Bearing
While 369-S-362 Bearing excels in truck axles and off-road vehicles, its temperature range also makes it viable for certain aerospace components. The inch measurements align with many North American machinery standards.

Where Is 369-S-362 Bearing Used?
You’ll often find 369-S-362 Bearing in mining equipment, where its dynamic radial load capacity handles intense vibrations. The tapered rollers distribute stress evenly, reducing wear over time.
