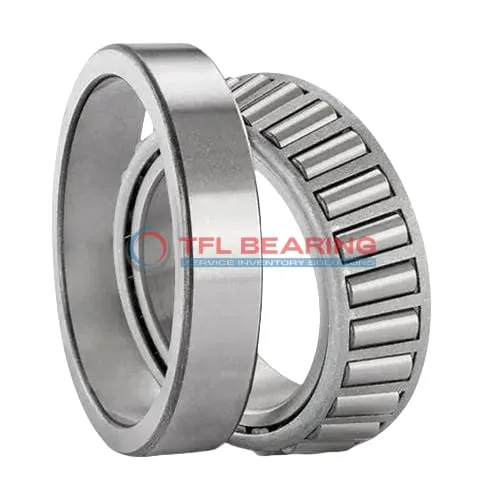

TS (Single Row Tapered Roller Bearings) (Imperial) 367-362X

TS (Single Row Tapered Roller Bearings) (Imperial) 367-362X

The 367-362X is a single-row tapered roller bearing with a 1.7717″ bore and 3.5433″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 22900 lbf radially and 3250 lbf in thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in heavy machinery or automotive systems where combined loads are common.

Weighing 1.500 lb, it offers a robust build for its size. Compliant with RoHS and REACH standards, ensuring safe and reliable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 367-362X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.7717" x 3.5433" x 0.9843"
  • Bore Dia 1.7717"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5433"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7874"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9843"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 2.01"
  • Cone Backface Backing Diameter 2.17"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.15"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 367
  • Cup Part Number 362X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.500 lb

Features

How Is 367-362X Bearing Engineered for Reliability?

367-362X Bearing features chrome steel rings and rollers, ensuring durability under combined loads.
Its dynamic radial load capacity reaches 22,900 lbf, making it suitable for heavy-duty applications.

The tapered roller design provides effective load distribution, reducing stress on components.
With a standard radial clearance, it offers flexibility for various operational requirements.

367-362X Bearing operates within a temperature range of -30° to 110°C, maintaining performance in diverse conditions.
The steel cage keeps rollers aligned, enhancing stability and extending service life.

Application

Industrial Uses of 367-362X Bearing
The 367-362X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

Where Is 367-362X Bearing Used?
You’ll often find 367-362X Bearing in automotive applications like wheel hubs and differential systems, thanks to its ability to manage both radial and thrust loads. The inch sizing makes it a good fit for American-made vehicles.

Built for Heavy-Duty Use: 367-362X Bearing
367-362X Bearing excels in industrial fans and conveyor systems, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 367-362X Bearing
In automotive settings, 367-362X Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems due to its precise load handling. The ABEC-1 rating ensures consistent performance across both fields.

Perfect Fit for Automation: 367-362X Bearing
367-362X Bearing works well in automated assembly lines, where its tapered rollers provide smooth motion control. The standard radial clearance option makes it adaptable to various precision requirements.
