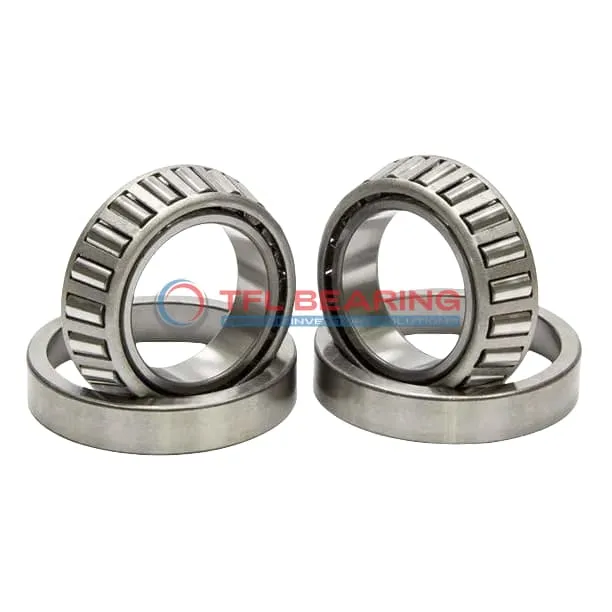

TS (Single Row Tapered Roller Bearings) (Imperial) 36691-36620

TS (Single Row Tapered Roller Bearings) (Imperial) 36691-36620

The 36691-36620 is a single-row tapered roller bearing with a 5.75″ bore and 7.625″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44200 lbf radially and 7220 lbf thrust, making it versatile for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like truck axles or heavy machinery where robust performance is needed.

Weighing 4.9 lb, it’s built to last while meeting RoHS and REACH standards for safety and compliance. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 36691-36620
  • Brand TFL
  • Interchangeable Timken
  • Size 5.75" x 7.625" x 1.125"
  • Bore Dia 5.75"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 7.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9063"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.125"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.190"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 6.89"
  • Cone Backface Backing Diameter 6.38"
  • Cup Frontface Backing Diameter 7.41"
  • Cup Backface Backing Diameter 7.17"
  • Cage Cone Frontface Clearance 0.13"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location 0.19"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 36691
  • Cup Part Number 36620
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 36600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44200 lbf
  • Static Radial Load 88600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7220 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.900 lb

Features

Built for Reliability: 36691-36620 Bearing

36691-36620 Bearing is constructed with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44,200 lbf, ensuring dependable performance in heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it provides flexibility for various industrial uses.

How Does 36691-36620 Bearing Reduce Friction?

36691-36620 Bearing features a precision-engineered tapered roller design, minimising friction during operation.
The chrome steel components ensure smooth rolling action, even under high radial or thrust loads.
Its effective centre location of 0.19″ optimises load distribution across the rollers.
This design helps maintain efficiency while handling dynamic thrust ratings up to 7,220 lbf.

Technical Highlights of 36691-36620 Bearing

36691-36620 Bearing operates within a temperature range of -30° to 110°C, suitable for diverse environments.
The ABEC-1 rated precision ensures consistent performance in industrial applications.
Its standard radial clearance can be adjusted to C3, C4 or C5 specifications as needed.
Weighing 4.900 lb, it balances durability with manageable installation requirements.

Why Choose 36691-36620 Bearing for Precision Tasks?

36691-36620 Bearing’s single row tapered design provides accurate load handling for combined forces.
The chrome steel construction resists wear, maintaining precision over extended periods.
With a static radial load capacity of 88,600 lbf, it delivers reliable performance in demanding conditions.
Its open seal type allows for easy lubrication access when maintenance is required.

Engineered for Precision: 36691-36620 Bearing

36691-36620 Bearing’s dimensional tolerances ensure precise fitment in industrial equipment.
The cone and cup assembly simplifies installation while maintaining structural integrity.
Its 36600 series design offers interchangeability with major brands like Timken.
The steel cage provides durability while keeping rollers properly spaced for optimal performance.

Application

Industrial Uses of 36691-36620 Bearing
36691-36620 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 36691-36620 Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. Its inch sizing makes it a go-to choice for American-made vehicles.

For industrial gearboxes, 36691-36620 Bearing’s open design allows for easy lubrication, extending service life in high-speed operations. The steel cage adds stability, reducing wear over time.

Where Is 36691-36620 Bearing Used?
You’ll often find 36691-36620 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design withstands rough conditions. The standard radial clearance ensures smooth operation.

In mining equipment, 36691-36620 Bearing’s high dynamic load capacity makes it suitable for crushers and conveyors. The ABEC-1 rating balances precision and cost-effectiveness for these applications.

Built for Heavy-Duty Use: 36691-36620 Bearing
36691-36620 Bearing excels in forestry equipment like log splitters, where its tapered rollers manage heavy combined loads. The chrome steel rollers resist wear, even with constant use.

For railway applications, 36691-36620 Bearing’s inch dimensions and compatibility with Timken designs make it a reliable choice. Its temperature range suits both cold and warm climates.

Automotive vs Aerospace: Applications of 36691-36620 Bearing
In automotive systems, 36691-36620 Bearing is ideal for truck axles, offering durability under heavy loads. The steel cage ensures consistent performance over long distances.

While not typically used in aerospace, 36691-36620 Bearing finds its place in ground support equipment. Its inch sizing and load capacity make it practical for these heavy-duty tasks.
