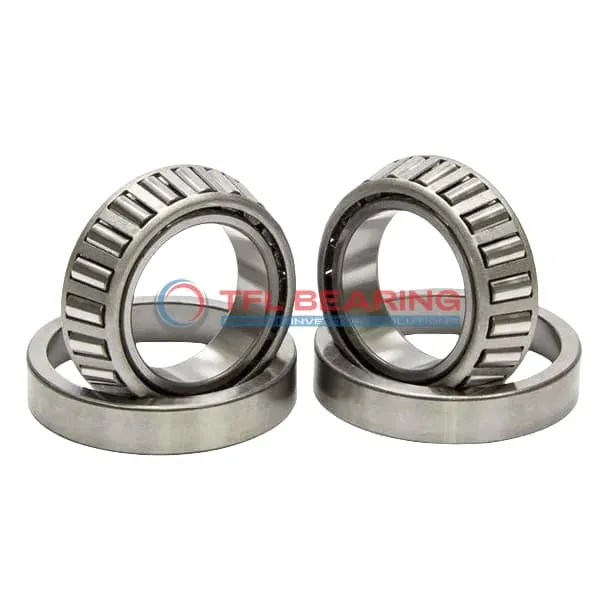

TS (Single Row Tapered Roller Bearings) (Imperial) 36690P-36620P

TS (Single Row Tapered Roller Bearings) (Imperial) 36690P-36620P

The 36690P-36620P is a single-row tapered roller bearing with a 5.75″ bore and 7.625″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 52300 lbf radially and 8560 lbf thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where combined loads are common.

Weighing 5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 36690P-36620P
  • Brand TFL
  • Interchangeable Timken
  • Size 5.75" x 7.625" x 1.1249"
  • Bore Dia 5.75"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 7.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9063"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1249"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 6.89"
  • Cone Backface Backing Diameter 6.14"
  • Cup Frontface Backing Diameter 7.41"
  • Cup Backface Backing Diameter 7.17"
  • Cage Cone Frontface Clearance 0.13"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location 0.19"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 36690P
  • Cup Part Number 36620P
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 36600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 52300 lbf
  • Static Radial Load 88600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 13600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8560 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5 lb

Features

Performance Features of 36690P-36620P Bearing

36690P-36620P Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 52,300 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending operational life.

How Is 36690P-36620P Bearing Engineered for Reliability?

36690P-36620P Bearing features precise cone and cup dimensions, ensuring smooth operation under heavy loads.
With a static radial load capacity of 88,600 lbf, it handles demanding industrial applications effortlessly.
The tapered roller design distributes loads evenly, enhancing durability and reducing wear.

Built for Durability: 36690P-36620P Bearing

36690P-36620P Bearing operates efficiently in temperatures ranging from -30° to 110°C, suitable for varied environments.
Its standard radial clearance options (C3/C4/C5) allow flexibility for different operational needs.
The open design simplifies lubrication, ensuring consistent performance over time.

Steel vs Ceramic Bearings: Strengths of 36690P-36620P Bearing

36690P-36620P Bearing uses chrome steel for both rollers and rings, providing excellent strength and wear resistance.
The ABEC-1 rating ensures reliable precision for industrial applications.
Its effective center location of 0.19″ optimises load distribution, improving overall performance.

Application

Industrial Uses of 36690P-36620P Bearing
The 36690P-36620P Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.

Where Is 36690P-36620P Bearing Used?
You’ll often find 36690P-36620P Bearing in agricultural machinery, supporting gearboxes and wheel hubs. Its inch sizing makes it a reliable choice for North American equipment manufacturers.

Built for Heavy-Duty Use: 36690P-36620P Bearing
36690P-36620P Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication. The steel cage adds stability during high-speed operations.

Automotive vs Aerospace: Applications of 36690P-36620P Bearing
In automotive systems, 36690P-36620P Bearing supports axles and transmissions, while in aerospace, it’s used in landing gear assemblies. Its ABEC-1 rating ensures consistent performance.

Perfect Fit for Automation: 36690P-36620P Bearing
36690P-36620P Bearing is ideal for conveyor systems in automated factories, thanks to its tapered rollers handling radial and thrust loads. The standard radial clearance offers flexibility in various setups.
