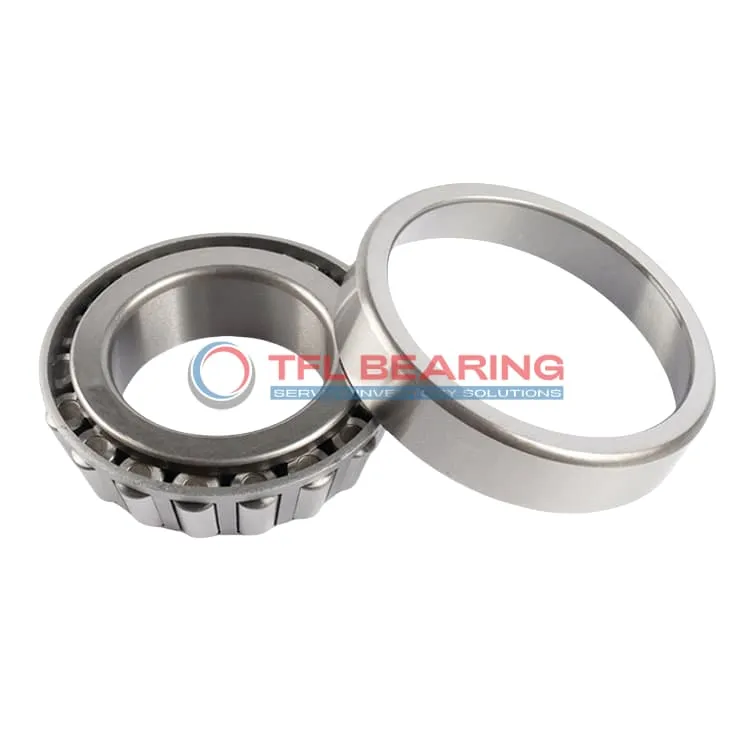

TS (Single Row Tapered Roller Bearings) (Imperial) 365-362AC

TS (Single Row Tapered Roller Bearings) (Imperial) 365-362AC

The 365-362AC is a single-row tapered roller bearing with a 1.9685″ bore and 3.7402″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 22900 lbf radially and 3250 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 1.400 lb, it offers a balance of strength and reliability. Compliant with RoHS and REACH standards for safe use.

The standard radial clearance ensures versatility, with options for C3, C4, or C5 available. Its ABEC-1 rating confirms consistent performance for general industrial use.

The tapered roller design distributes loads evenly, reducing wear over time. Perfect for applications requiring precise alignment and long service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 365-362AC
  • Brand TFL
  • Interchangeable Timken
  • Size 1.9685" x 3.7402" x 0.8125"
  • Bore Dia 1.9685"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.7402"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6501"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 2.17"
  • Cone Backface Backing Diameter 2.28"
  • Cup Frontface Backing Diameter 3.66"
  • Cup Backface Backing Diameter 3.31"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 365
  • Cup Part Number 362AC
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.400 lb

Features

Performance Features of 365-362AC Bearing

365-362AC Bearing is crafted with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,900 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environmental conditions.

365-362AC Bearing requires lubrication, which helps maintain smooth operation over time.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of 365-362AC Bearing
365-362AC Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 365-362AC Bearing Used?
You’ll often find 365-362AC Bearing in automotive applications like wheel hubs and differential systems, thanks to its ability to manage both radial and thrust loads. Its inch sizing makes it a good fit for American-made vehicles.

Built for Heavy-Duty Use: 365-362AC Bearing
365-362AC Bearing excels in industrial gearboxes, where its steel cage and open design allow for easy lubrication and maintenance. The standard radial clearance offers flexibility for various operational needs.

Automotive vs Aerospace: Applications of 365-362AC Bearing
In automotive settings, 365-362AC Bearing supports high-load components like axles, while in aerospace, its precision helps in auxiliary systems. The ABEC-1 rating ensures reliable performance across different industries.

Perfect Fit for Automation: 365-362AC Bearing
365-362AC Bearing works well in automated conveyor systems, where its tapered rollers provide smooth motion under varying loads. The temperature range of -30° to 110°C makes it suitable for diverse environments.
