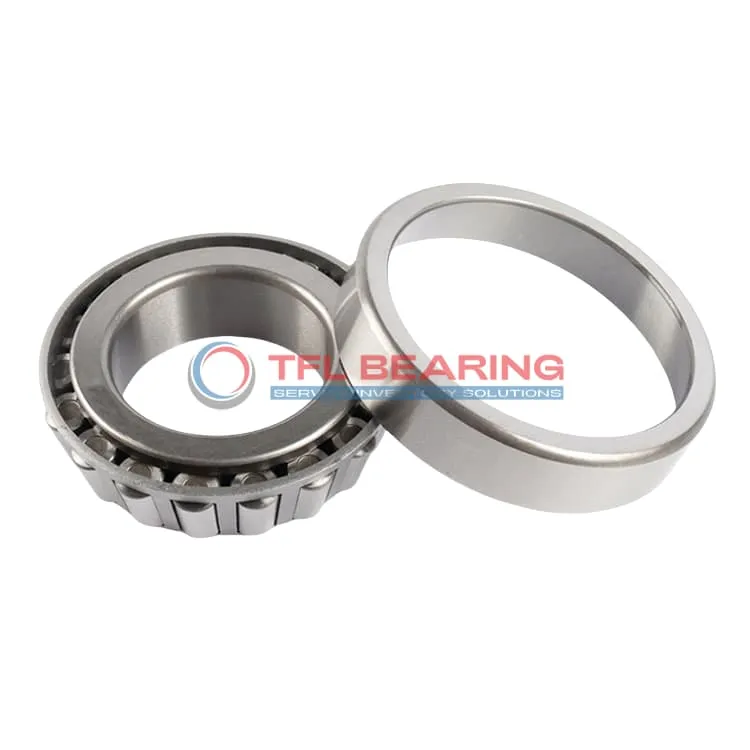

TS (Single Row Tapered Roller Bearings) (Imperial) 365-362

TS (Single Row Tapered Roller Bearings) (Imperial) 365-362

The 365-362 is a single row tapered roller bearing with a 1.9685″ bore and 3.5433″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 22900 lbf radially and 3250 lbf thrust, suitable for demanding applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

Interchangeable with Timken models, it offers a reliable replacement option. Ideal for heavy-duty machinery like gearboxes or axles where combined loads are common.

Weighing 1.2 lb, it balances strength and portability. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 365-362
  • Brand TFL
  • Interchangeable Timken
  • Size 1.9685" x 3.5433" x 0.7874"
  • Bore Dia 1.9685"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.5433"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7874"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 2.17"
  • Cone Backface Backing Diameter 2.28"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 3.19"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 365
  • Cup Part Number 362
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.2 lb

Features

Performance Features of 365-362 Bearing

365-362 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,900 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing friction.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Does 365-362 Bearing Resist Wear?

365-362 Bearing’s chrome steel construction provides excellent wear resistance, even under high stress.
The tapered roller design distributes loads evenly, minimising surface fatigue.
Its standard radial clearance options allow for flexibility in different operational settings.
This design ensures consistent performance over extended periods.

Engineered for Precision: 365-362 Bearing

365-362 Bearing features precise cone and cup width tolerances for accurate fitment.
The effective center location of -0.17″ ensures proper alignment in assembly.
With ABEC-1 rating, it delivers reliable precision for industrial applications.
The open design simplifies lubrication, maintaining optimal performance.

Steel vs Ceramic Bearings: Strengths of 365-362 Bearing

365-362 Bearing uses chrome steel for both rings and rollers, balancing cost and performance.
This material choice provides good heat resistance and load capacity compared to ceramic options.
The steel cage offers durability while maintaining smooth roller movement.
Its standard lubrication requirement ensures proper functioning in most industrial environments.

Application

Industrial Uses of 365-362 Bearing
The 365-362 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 365-362 Bearing fits well in wheel hubs and differential systems, providing reliable performance under both radial and thrust loads. The inch sizing makes it compatible with many North American vehicle models.

For industrial conveyor systems, 365-362 Bearing’s open design allows for easy lubrication, extending its service life in high-use scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

Where Is 365-362 Bearing Used?
You’ll often find 365-362 Bearing in mining equipment, where its robust design handles heavy loads and harsh conditions. The tapered rollers distribute stress evenly, reducing wear over time.

In manufacturing plants, 365-362 Bearing supports machinery like presses and gearboxes, ensuring smooth operation. Its standard radial clearance makes it versatile for various industrial settings.

Built for Heavy-Duty Use: 365-362 Bearing
365-362 Bearing excels in applications like forklifts and cranes, where its combined load capacity is essential. The chrome steel rollers and rings provide long-lasting performance.

For power transmission systems, 365-362 Bearing’s tapered design minimizes friction, improving efficiency. Its ABEC-1 rating ensures consistent quality for general industrial use.

Automotive vs Aerospace: Applications of 365-362 Bearing
In automotive systems, 365-362 Bearing is ideal for wheel assemblies, offering stability under varying loads. Its inch measurements align with many standard vehicle designs.

For aerospace ground equipment, 365-362 Bearing provides reliable support in maintenance tools and loading systems. The temperature range suits both indoor and outdoor use.
