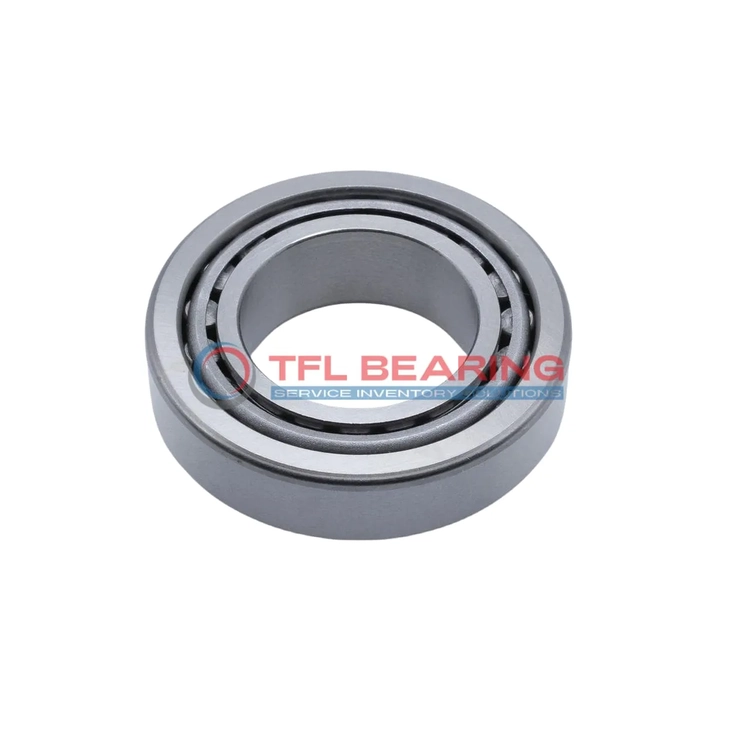

TS (Single Row Tapered Roller Bearings) (Imperial) 3583-3520

TS (Single Row Tapered Roller Bearings) (Imperial) 3583-3520

The 3583-3520 is a single-row tapered roller bearing with a 1.5″ bore and 3.3125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 25500 lbf radially and 3460 lbf in thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 1.7 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3583-3520
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5" x 3.3125" x 1.1875"
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.3125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.216"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 1.79"
  • Cone Backface Backing Diameter 2.05"
  • Cup Frontface Backing Diameter 3.15"
  • Cup Backface Backing Diameter 2.91"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.4"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 3583
  • Cup Part Number 3520
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 3500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 25500 lbf
  • Static Radial Load 30100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6610 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3460 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.7 lb

Features

Why Choose 3583-3520 Bearing for Precision Tasks?

3583-3520 Bearing features a single row tapered roller design, ideal for handling combined loads with precision.
Its chrome steel rings and rollers provide durability, supporting dynamic radial loads up to 25,500 lbf.
The steel cage ensures proper roller alignment, enhancing performance and reducing wear.
With a temperature range of -30° to 110°C, it operates reliably in various conditions.

How Is 3583-3520 Bearing Engineered for Reliability?

3583-3520 Bearing is built with chrome steel components, offering high resistance to wear and fatigue.
Its standard radial clearance and ABEC-1 rating ensure consistent performance in precision applications.
The tapered roller design efficiently manages both radial and thrust loads.
Lubrication is required to maintain smooth operation and extend service life.

Built for Durability: 3583-3520 Bearing

3583-3520 Bearing’s robust construction includes chrome steel rollers and rings for long-lasting performance.
It handles static radial loads up to 30,100 lbf, making it suitable for heavy-duty applications.
The open design allows for easy lubrication, ensuring minimal maintenance needs.
With a weight of 1.7 lb, it balances strength and practicality.

Steel vs Ceramic Bearings: Strengths of 3583-3520 Bearing

3583-3520 Bearing uses chrome steel for both rollers and rings, providing excellent strength and durability.
Its dynamic thrust rating of 3,460 lbf ensures reliable performance under varying load conditions.
The tapered roller design offers superior load distribution compared to standard bearings.
Compliant with RoHS and REACH, it meets environmental and safety standards.

Application

Industrial Uses of 3583-3520 Bearing
3583-3520 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 3583-3520 Bearing Used?
You’ll often find 3583-3520 Bearing in automotive applications like truck wheel hubs, where its ability to manage both radial and thrust loads is essential. The imperial sizing makes it a good fit for North American vehicle designs.

Built for Heavy-Duty Use: 3583-3520 Bearing
3583-3520 Bearing excels in industrial settings like conveyor systems, thanks to its robust steel cage and high dynamic load capacity. Its open design allows for easy lubrication, extending service life.

Automotive vs Aerospace: Applications of 3583-3520 Bearing
In automotive systems, 3583-3520 Bearing supports wheel assemblies, while in aerospace, it’s used in auxiliary equipment due to its reliability. The ABEC-1 rating ensures consistent performance across different environments.

Perfect Fit for Automation: 3583-3520 Bearing
3583-3520 Bearing works well in automated machinery, such as robotic arms, where precise load handling is needed. Its standard radial clearance options make it adaptable to various operational demands.
