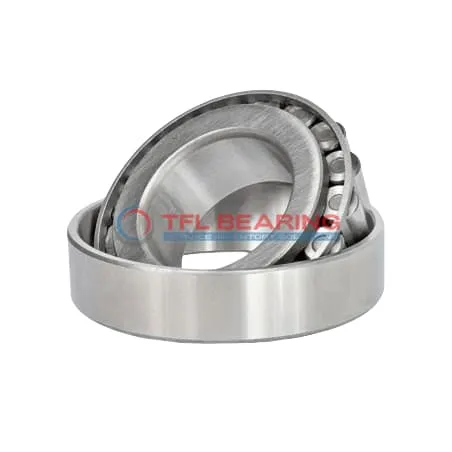

TS (Single Row Tapered Roller Bearings) (Imperial) 34307-34500

TS (Single Row Tapered Roller Bearings) (Imperial) 34307-34500

The 34307-34500 is a single-row tapered roller bearing with a 3.0625″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 23000 lbf radially and 4600 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 2.4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 34307-34500
  • Brand TFL
  • Interchangeable Timken
  • Size 3.0625" x 5" x 1.0625"
  • Bore Dia 3.0625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.906"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7812"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0625"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.06"
  • Cone Backface Backing Diameter 3.78"
  • Cup Frontface Backing Diameter 4.67"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.09"
  • Effective Center Location 0.06"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 34307
  • Cup Part Number 34500
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 34000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 23000 lbf
  • Static Radial Load 30600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5960 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 4600 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.4 lb

Features

Why Choose 34307-34500 Bearing for Precision Tasks?

34307-34500 Bearing features a single row tapered roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The bearing’s dynamic radial load capacity reaches 23,000 lbf, providing reliable performance under heavy loads.
With a standard radial clearance, it offers flexibility for various industrial uses.

34307-34500 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, ensuring smooth operation and extended service life.

Designed for easy lubrication, 34307-34500 Bearing reduces maintenance needs.
The ABEC-1 rating confirms its precision and suitability for high-performance tasks.

Application

Industrial Uses of 34307-34500 Bearing
The 34307-34500 Bearing is commonly used in heavy machinery like conveyor systems and industrial gearboxes, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

Where Is 34307-34500 Bearing Used?
You’ll often find the 34307-34500 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its precise inch sizing makes it a reliable choice for vehicles requiring consistent performance under heavy loads.

Built for Heavy-Duty Use: 34307-34500 Bearing
The 34307-34500 Bearing excels in construction equipment, such as bulldozers and cranes, thanks to its robust steel cage and high dynamic load capacity. Its open design allows for easy lubrication, extending service life.

Automotive vs Aerospace: Applications of 34307-34500 Bearing
In automotive settings, the 34307-34500 Bearing supports drivetrain components, while in aerospace, it’s suited for auxiliary systems requiring reliable performance. Its ABEC-1 rating ensures adequate precision for both fields.

Perfect Fit for Automation: 34307-34500 Bearing
The 34307-34500 Bearing works well in automated machinery, like robotic arms, where its tapered rollers provide smooth motion control. Its standard radial clearance options make it adaptable to various precision needs.
