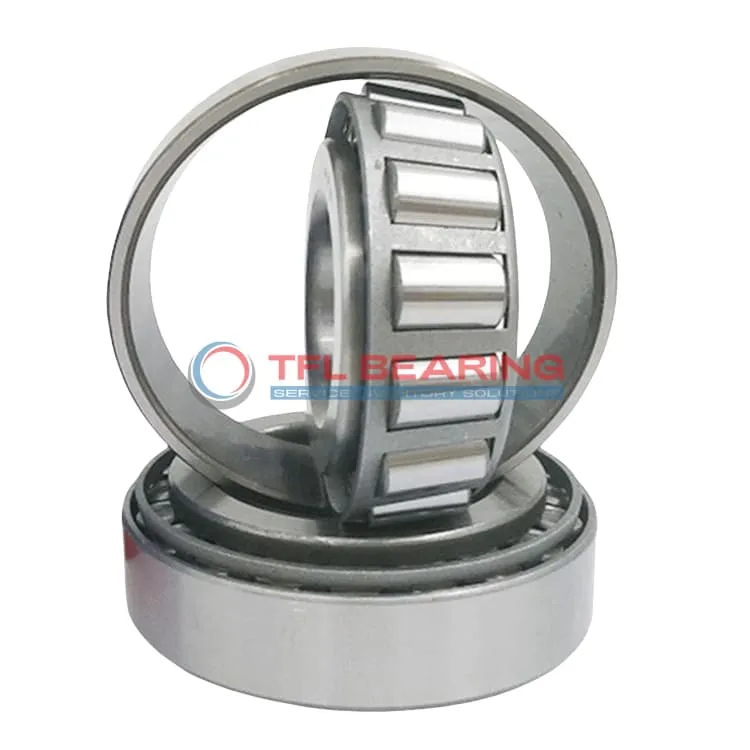

TS (Single Row Tapered Roller Bearings) (Imperial) 33891-33822

TS (Single Row Tapered Roller Bearings) (Imperial) 33891-33822

The 33891-33822 is a single-row tapered roller bearing with a 2.0625″ bore and 3.75″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 29200 lbf radially and 4270 lbf in thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 1.8 lb, it offers a robust yet manageable size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 33891-33822
  • Brand TFL
  • Interchangeable Timken
  • Size 2.0625" x 3.75" x 1.0939"
  • Bore Dia 2.0625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0939"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.32"
  • Cone Backface Backing Diameter 2.6"
  • Cup Frontface Backing Diameter 3.56"
  • Cup Backface Backing Diameter 3.39"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.3"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 33891
  • Cup Part Number 33822
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 33800
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 29200 lbf
  • Static Radial Load 36200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7560 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 4270 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.8 lb

Features

Performance Features of 33891-33822 Bearing

33891-33822 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 29,200 lbf, ensuring reliable performance in demanding applications.

The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

33891-33822 Bearing requires lubrication, ensuring smooth operation and reduced wear over time.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of 33891-33822 Bearing
The 33891-33822 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

Where Is 33891-33822 Bearing Used?
You’ll often find the 33891-33822 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a good fit for American-made vehicles and industrial machinery.

Built for Heavy-Duty Use: 33891-33822 Bearing
This bearing excels in conveyor systems and mining equipment, thanks to its robust steel cage and high dynamic load capacity. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 33891-33822 Bearing
In automotive settings, the 33891-33822 Bearing supports wheel assemblies, while in aerospace, it’s used in auxiliary systems requiring reliable performance. Its ABEC-1 rating ensures consistent operation.

What Makes 33891-33822 Bearing a Preferred Choice?
The 33891-33822 Bearing is a go-to for industrial fans and pumps due to its ability to handle both radial and thrust loads. Its standard radial clearance offers flexibility for various applications.
