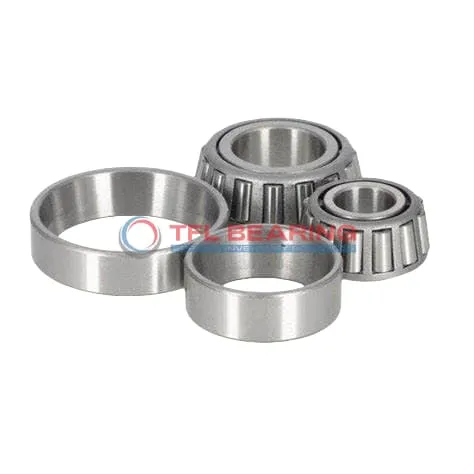

TS (Single Row Tapered Roller Bearings) (Imperial) 33262A-33462

TS (Single Row Tapered Roller Bearings) (Imperial) 33262A-33462

The 33262A-33462 is a single-row tapered roller bearing with a 2.625″ bore and 4.625″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 31100 lbf radially and 6020 lbf thrust, making it a sturdy choice for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance under stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in industrial machinery or automotive systems where combined loads are common.

Weighing 3 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 33262A-33462
  • Brand TFL
  • Interchangeable Timken
  • Size 2.625" x 4.625" x 1.1875"
  • Bore Dia 2.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.62"
  • Cone Backface Backing Diameter 3.03"
  • Cup Frontface Backing Diameter 4.45"
  • Cup Backface Backing Diameter 4.09"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.11"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 33262A
  • Cup Part Number 33462
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 33000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 31100 lbf
  • Static Radial Load 44300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 8060 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 6020 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3 lb

Features

Performance Features of 33262A-33462 Bearing

33262A-33462 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 31,100 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

33262A-33462 Bearing’s standard radial clearance allows for flexibility in different operating conditions.
Its ABEC-1 rating ensures consistent performance for general industrial use.

Application

Industrial Uses of 33262A-33462 Bearing
The 33262A-33462 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

Where Is 33262A-33462 Bearing Used?
You’ll often find 33262A-33462 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its precise imperial sizing makes it a reliable choice for vehicles requiring robust load support.

Built for Heavy-Duty Use: 33262A-33462 Bearing
In industrial settings, 33262A-33462 Bearing excels in conveyor systems and gearboxes, thanks to its open design and steel cage. The standard radial clearance allows for smooth operation under varying loads.

Automotive vs Aerospace: Applications of 33262A-33462 Bearing
While 33262A-33462 Bearing is popular in automotive wheel assemblies, it’s also suitable for aerospace landing gear components. Its ABEC-1 rating ensures consistent performance in both high and low-speed scenarios.

Key Fields for 33262A-33462 Bearing
The 33262A-33462 Bearing is a go-to for mining equipment, where its dynamic radial load capacity of 31,100 lbf handles intense stress. The tapered rollers distribute weight evenly, reducing wear over time.
