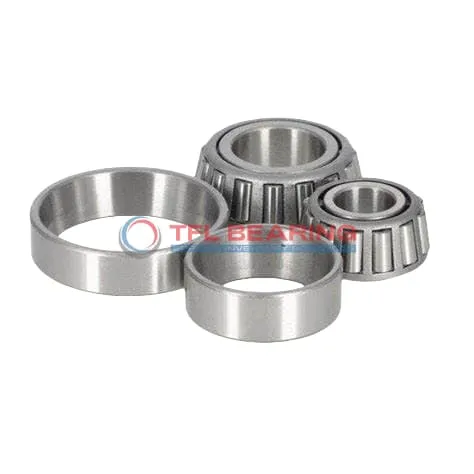

TS (Single Row Tapered Roller Bearings) (Imperial) 33262-33462

TS (Single Row Tapered Roller Bearings) (Imperial) 33262-33462

The 33262-33462 is a single-row tapered roller bearing with a 2.625″ bore and 4.625″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 31100 lbf radially and 6020 lbf thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy machinery or automotive uses where combined loads are common.

Weighing 2.9 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 33262-33462
  • Brand TFL
  • Interchangeable Timken
  • Size 2.625" x 4.625" x 1.1875"
  • Bore Dia 2.625"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.57"
  • Cone Backface Backing Diameter 3.19"
  • Cup Frontface Backing Diameter 4.45"
  • Cup Backface Backing Diameter 4.09"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.11"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 33262
  • Cup Part Number 33462
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 33000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 31100 lbf
  • Static Radial Load 44300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 8060 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 6020 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.9 lb

Features

How Is 33262-33462 Bearing Engineered for Reliability?

33262-33462 Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 31,100 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

What Makes 33262-33462 Bearing Suitable for High-Temperature Applications?

33262-33462 Bearing operates efficiently in temperatures from -30° to 110°C, maintaining performance in demanding conditions.
The chrome steel construction resists wear, ensuring longevity even under high stress.
Its tapered roller design distributes loads evenly, reducing heat buildup.
This makes it ideal for applications where temperature fluctuations are common.

Built for Durability: 33262-33462 Bearing

33262-33462 Bearing is crafted with high-quality chrome steel for enhanced strength and wear resistance.
The single-row tapered roller design handles combined loads efficiently, ensuring smooth operation.
Its standard radial clearance options (C3/C4/C5) allow for flexibility in different applications.
With a static radial load capacity of 44,300 lbf, it excels in heavy industrial use.

Steel vs Ceramic Bearings: Strengths of 33262-33462 Bearing

33262-33462 Bearing uses chrome steel for both rings and rollers, offering excellent durability and cost-effectiveness.
Its tapered roller design provides superior load distribution compared to ball bearings.
The steel cage ensures stable roller movement, reducing maintenance needs.
With a dynamic thrust rating of 6,020 lbf, it handles axial loads reliably.

Performance Features of 33262-33462 Bearing

33262-33462 Bearing combines chrome steel construction with a tapered roller design for optimal load handling.
Its dynamic radial rating of 8,060 lbf (C90) ensures long service life under continuous use.
The open seal type allows for easy lubrication, maintaining smooth operation.
Weighing just 2.9 lb, it balances strength and portability for various industrial applications.

Application

Industrial Uses of 33262-33462 Bearing
This bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 33262-33462 Bearing Used?
You’ll often find this bearing in automotive applications, particularly in wheel hubs and differential systems. Its precise imperial sizing makes it a reliable choice for older or custom-built vehicles.

Built for Heavy-Duty Use: 33262-33462 Bearing
With its high dynamic radial load capacity, this bearing excels in industrial fans and conveyor systems. The open design allows for easy lubrication, extending its service life in dusty environments.

Automotive vs Aerospace: Applications of 33262-33462 Bearing
In automotive settings, this bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems. The ABEC-1 rating ensures consistent performance across different applications.

Perfect Fit for Automation: 33262-33462 Bearing
This bearing works well in automated assembly lines, where its tapered rollers provide smooth motion control. The steel cage adds stability, making it suitable for high-speed operations.
