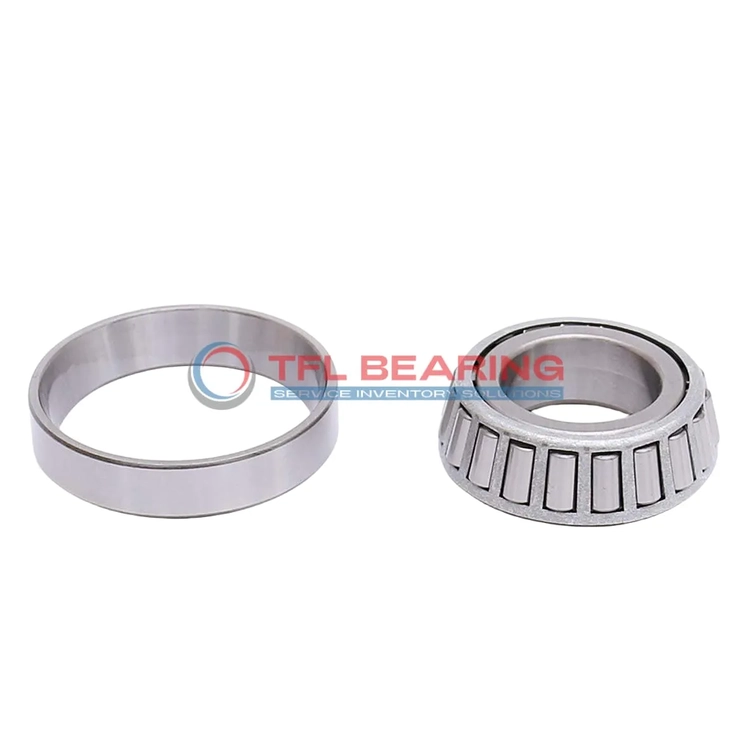

TS (Single Row Tapered Roller Bearings) (Imperial) 3196-3120

TS (Single Row Tapered Roller Bearings) (Imperial) 3196-3120

The 3196-3120 is a single-row tapered roller bearing with a 1.3125″ bore and 2.8593″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 21300 lbf radially and 3140 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 1.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

The 3196-3120 tapered roller bearing features a standard radial clearance and is rated ABEC-1 for precision. Its effective centre location at -0.4″ ensures stable performance under load.

The chrome steel rollers and rings provide long-lasting wear resistance. The bearing’s design allows for easy maintenance and lubrication.

Suitable for industrial equipment or vehicle axles, it handles both radial and thrust loads efficiently. Its dimensions (1.3125″ x 2.8593″ x 1.1875″) make it compact yet powerful.

Compliant with environmental standards, it’s a dependable choice for various engineering needs.

This tapered roller bearing (3196-3120) is built for durability with chrome steel components and a steel cage. It supports dynamic radial loads up to 21300 lbf and thrust loads up to 3140 lbf.

The open seal type simplifies maintenance, and the standard radial clearance ensures smooth operation. It performs well in temperatures from -30°C to 110°C.

Interchangeable with Timken bearings, it’s a practical option for replacements. Perfect for applications like gearboxes or conveyor systems.

Weighing 1.2 lb, it balances strength and ease of handling. RoHS and REACH compliant for safe usage.

The 3196-3120 is a robust single-row tapered roller bearing, measuring 1.3125″ in bore and 2.8593″ in outer diameter. Made from chrome steel, it handles heavy combined loads with ease.

Its open design facilitates lubrication, and the steel cage enhances longevity. The bearing operates efficiently between -30°C and 110°C.

A direct replacement for Timken bearings, it’s ideal for industrial or automotive use. Its compact size (1.1875″ width) fits well in tight spaces.

Compliant with RoHS and REACH, it’s a reliable and safe choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 3196-3120
  • Brand TFL
  • Interchangeable Timken
  • Size 1.3125" x 2.8593" x 1.1875"
  • Bore Dia 1.3125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.8593"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.181"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 1.59"
  • Cone Backface Backing Diameter 1.85"
  • Cup Frontface Backing Diameter 2.68"
  • Cup Backface Backing Diameter 2.40"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.4"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 3196
  • Cup Part Number 3120
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 3100
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 21300 lbf
  • Static Radial Load 22800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5520 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3140 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.2 lb

Features

How Is 3196-3120 Bearing Engineered for Reliability?

3196-3120 Bearing features chrome steel rings and rollers, providing robust performance under combined loads.
Its dynamic radial load capacity reaches 21,300 lbf, making it suitable for demanding industrial applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it offers reliable performance across a temperature range of -30° to 110°C.

Designed for easy lubrication, 3196-3120 Bearing maintains smooth operation with minimal maintenance.
Its tapered roller construction efficiently handles both radial and thrust loads in a single row design.

Application

Industrial Uses of 3196-3120 Bearing
3196-3120 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 3196-3120 Bearing Used?
You’ll often find 3196-3120 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a good fit for older or custom-built vehicles that require imperial measurements.

Built for Heavy-Duty Use: 3196-3120 Bearing
3196-3120 Bearing works well in conveyor systems and industrial fans, thanks to its ability to manage both radial and thrust loads. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 3196-3120 Bearing
While 3196-3120 Bearing is popular in truck transmissions, it’s also suitable for light aircraft landing gear due to its reliable performance. The steel cage provides extra strength for high-stress environments.

Perfect Fit for Automation: 3196-3120 Bearing
3196-3120 Bearing fits nicely in robotic arms and assembly line equipment, where precision and load capacity matter. Its standard radial clearance offers smooth operation in repetitive motion applications.
