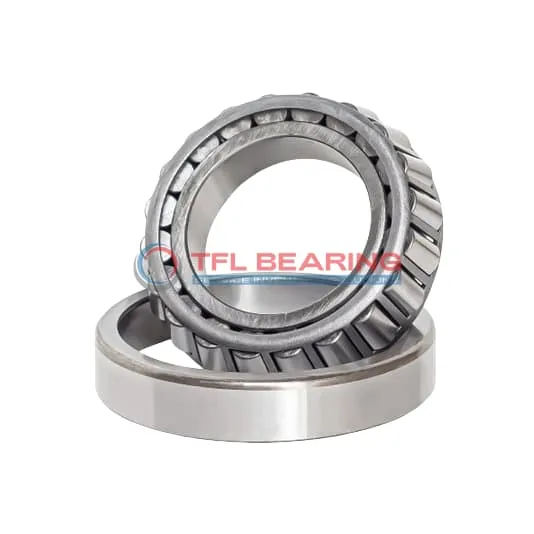

TS (Single Row Tapered Roller Bearings) (Imperial) 29685-29620

TS (Single Row Tapered Roller Bearings) (Imperial) 29685-29620

The 29685-29620 is a single-row tapered roller bearing with a 2.875″ bore and 4.4375″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 24800 lbf radially and 5370 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 1.9 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse environments.

The 29685-29620 features a standard radial clearance and is rated ABEC-1 for precision. Its tapered roller design provides effective load distribution, enhancing performance in demanding conditions.

With a cone width of 1″ and cup width of 0.75″, it fits snugly in compact spaces. The chrome steel rollers and rings ensure long-lasting wear resistance.

Suitable for applications like gearboxes or wheel hubs, this bearing offers reliable performance. Its design allows for easy maintenance, making it a practical choice for engineers and repairers alike.

The bearing’s effective center location of 0.04″ ensures stable operation under load. Its compliance with international standards adds to its reliability.

This tapered roller bearing is designed for combined load scenarios, with a dynamic radial rating of 6440 lbf at 90 million revolutions. Its sturdy construction handles high stress without compromising performance.

The open seal type simplifies lubrication, while the steel cage maintains roller alignment. It’s a dependable option for heavy-duty machinery and transport systems.

Interchangeable with Timken’s 29685-29620, it provides flexibility in sourcing. The bearing’s temperature tolerance makes it suitable for varied climates.

Weighing under 2 lb, it balances strength and ease of handling. Its compliance with RoHS and REACH ensures environmental safety.

The 29685-29620’s single-row design offers simplicity and efficiency in load handling. Its chrome steel components resist wear, extending service life in tough conditions.

With a standard radial clearance, it accommodates slight misalignments. The bearing’s ABEC-1 rating ensures consistent performance for general industrial use.

Ideal for applications like conveyor systems or agricultural equipment, it handles both radial and thrust loads effectively. Its open design allows for straightforward maintenance.

The bearing’s weight and dimensions make it easy to install in various setups. Compliant with global standards, it’s a trustworthy choice for diverse needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29685-29620
  • Brand TFL
  • Interchangeable Timken
  • Size 2.875" x 4.4375" x 1"
  • Bore Dia 2.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.82"
  • Cone Backface Backing Diameter 3.39"
  • Cup Frontface Backing Diameter 4.33"
  • Cup Backface Backing Diameter 3.98"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location 0.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 29685
  • Cup Part Number 29620
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 29600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24800 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6440 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5370 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.900 lb

Features

Performance Features of 29685-29620 Bearing

29685-29620 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24,800 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a standard radial clearance, it provides reliable performance in various operating conditions.

29685-29620 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its tapered roller design ensures smooth operation under both radial and thrust loads.

Application

Industrial Uses of 29685-29620 Bearing
29685-29620 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

Where Is 29685-29620 Bearing Used?
You’ll often find 29685-29620 Bearing in automotive axles and wheel hubs, thanks to its ability to manage both radial and thrust loads smoothly. Its inch sizing makes it a go-to for American-made vehicles and machinery.

Built for Heavy-Duty Use: 29685-29620 Bearing
29685-29620 Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 29685-29620 Bearing
In automotive settings, 29685-29620 Bearing supports drivetrain components, while in aerospace, its precision helps with landing gear systems. The ABEC-1 rating ensures consistent performance across both fields.

Practical Applications of 29685-29620 Bearing
29685-29620 Bearing is a solid choice for conveyor systems in mining, where its robust build handles high loads. The standard radial clearance option makes it adaptable to various operational needs.
