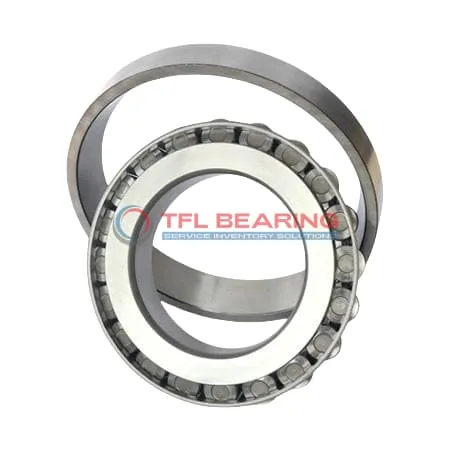

TS (Single Row Tapered Roller Bearings) (Imperial) 29680-29624

TS (Single Row Tapered Roller Bearings) (Imperial) 29680-29624

The 29680-29624 is a single-row tapered roller bearing with a 2.781″ bore and 4.5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 24800 lbf radially and 5370 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 2.3 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29680-29624
  • Brand TFL
  • Interchangeable Timken
  • Size 2.781" x 4.5" x 1.0937"
  • Bore Dia 2.781"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0937"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.74"
  • Cone Backface Backing Diameter 3.15"
  • Cup Frontface Backing Diameter 4.33"
  • Cup Backface Backing Diameter 4.06"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location 0.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 29680
  • Cup Part Number 29624
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 29600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24800 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6440 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5370 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.3 lb

Features

Performance Features of 29680-29624 Bearing

29680-29624 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24,800 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 29680-29624 Bearing Engineered for Reliability?

29680-29624 Bearing features a tapered roller design, providing efficient load distribution.
The chrome steel construction resists wear, ensuring a long service life.
Its standard radial clearance allows for smooth operation in different settings.
The bearing requires lubrication, which helps maintain performance over time.

Built for Durability: 29680-29624 Bearing

29680-29624 Bearing’s single-row construction ensures stability under combined loads.
The open seal type allows for easy lubrication and maintenance.
With an ABEC-1 rating, it balances precision and cost-effectiveness.
The bearing’s weight of 2.3 lb makes it manageable for various installations.

Steel vs Ceramic Bearings: Strengths of 29680-29624 Bearing

29680-29624 Bearing uses chrome steel for both rings and rollers, offering high strength.
Its dynamic thrust rating of 5,370 lbf ensures reliable performance under pressure.
The steel cage provides durability without the need for costly materials.
This bearing is a practical choice for applications requiring robust load handling.

Application

Industrial Uses of 29680-29624 Bearing
29680-29624 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 29680-29624 Bearing supports wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it a preferred choice for American and British vehicle models.

For industrial conveyor systems, 29680-29624 Bearing’s open design allows for easy lubrication, extending service life in high-use scenarios. The steel cage adds extra strength to withstand continuous operation.

Where Is 29680-29624 Bearing Used?
29680-29624 Bearing finds its place in agricultural machinery, such as tractors and harvesters, where its robust design copes with rough terrain. The standard radial clearance ensures smooth operation even under heavy loads.

In mining equipment, 29680-29624 Bearing’s ability to handle dynamic radial loads makes it ideal for crushers and screens. The ABEC-1 rating balances precision and cost-effectiveness for industrial applications.

Built for Heavy-Duty Use: 29680-29624 Bearing
29680-29624 Bearing is a go-to solution for forestry machinery, where its tapered rollers manage uneven loads from logging operations. The chrome steel rollers resist wear in abrasive conditions.

For railway applications, 29680-29624 Bearing’s combined load capacity ensures stability in bogies and axles. The temperature range of -30° to 110°C suits diverse climatic conditions.

Automotive vs Aerospace: Applications of 29680-29624 Bearing
In automotive systems, 29680-29624 Bearing supports drivetrain components, offering a balance of strength and precision. Its inch measurements align with standard automotive designs.

For aerospace ground equipment, 29680-29624 Bearing’s reliability is key in maintenance tools and loading systems. The steel cage provides lightweight durability without compromising performance.
