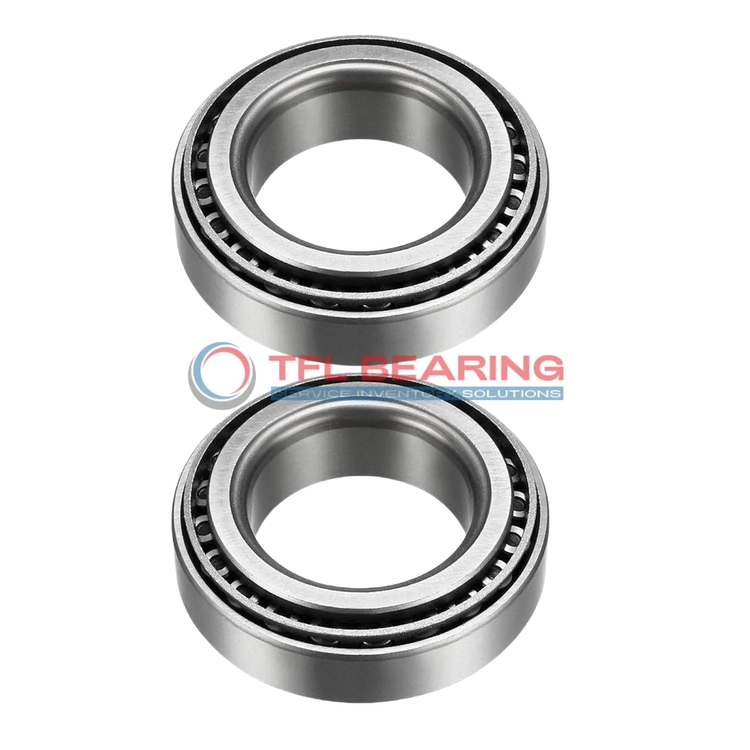

TS (Single Row Tapered Roller Bearings) (Imperial) 29676-29630

TS (Single Row Tapered Roller Bearings) (Imperial) 29676-29630

The 29676-29630 is a single-row tapered roller bearing with a 2.75″ bore and 4.75″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 24800 lbf radially and 5370 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 2.6 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29676-29630
  • Brand TFL
  • Interchangeable Timken
  • Size 2.75" x 4.75" x 1.0001"
  • Bore Dia 2.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0001"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.66"
  • Cone Backface Backing Diameter 3.15"
  • Cup Frontface Backing Diameter 4.49"
  • Cup Backface Backing Diameter 4.09"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location 0.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 29676
  • Cup Part Number 29630
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 29600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24800 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6440 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5370 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.6 lb

Features

Performance Features of 29676-29630 Bearing

29676-29630 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24,800 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 29676-29630 Bearing Engineered for Reliability?

29676-29630 Bearing features a single-row tapered roller design, providing stability under combined loads.
The chrome steel construction enhances durability, while the steel cage maintains roller positioning.
Its dynamic thrust rating of 5,370 lbf ensures consistent performance in demanding environments.
The standard radial clearance options allow for flexibility in different applications.

Designed for Durability: 29676-29630 Bearing

29676-29630 Bearing’s tapered roller design efficiently handles both radial and thrust loads.
The chrome steel components resist wear, ensuring a long service life even under heavy stress.
With an ABEC-1 rating, it balances precision and reliability for industrial use.
The open seal type simplifies maintenance, reducing downtime and operational costs.

Application

Industrial Uses of 29676-29630 Bearing
The 29676-29630 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined radial and thrust loads effectively. Its chrome steel construction ensures durability in tough working conditions.

Where Is 29676-29630 Bearing Used?
You’ll often find 29676-29630 Bearing in automotive axles and wheel hubs, providing reliable performance under varying loads. The inch sizing makes it a good fit for North American vehicle designs.

Built for Heavy-Duty Use: 29676-29630 Bearing
This bearing excels in industrial fans and pumps, thanks to its robust steel cage and high dynamic load capacity. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 29676-29630 Bearing
In automotive applications, 29676-29630 Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems where precision and reliability are key. The ABEC-1 rating ensures consistent performance.

Perfect Fit for Automation: 29676-29630 Bearing
For conveyor systems and automated assembly lines, 29676-29630 Bearing offers smooth operation and low maintenance. Its standard radial clearance makes it versatile for various industrial setups.
