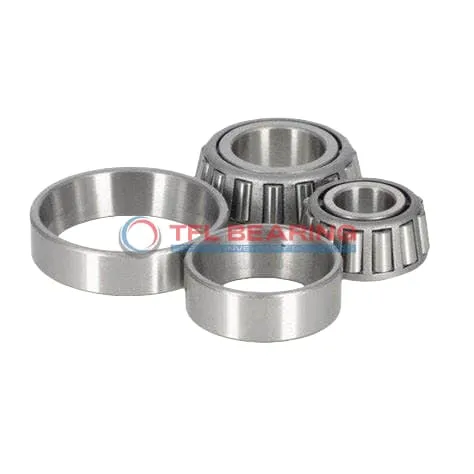

TS (Single Row Tapered Roller Bearings) (Imperial) 29590-29520

The 29590-29520 is a single-row tapered roller bearing with a 2.625″ bore and 4.25″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 29400 lbf radially and 5970 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 1.9 lb, it balances strength and practicality. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 29590-29520
Brand TFL
Interchangeable Timken
Size 2.625" x 4.25" x 1"
Bore Dia 2.625"
Bore Dia Tolerance +0.005" to 0
Outer Dia 4.25"
Outer Dia Tolerance +0.001" to 0
Cone Width 1"
Cone Width Tolerance +0.003" to -0.01
Cup Width 0.75"
Cup Width Tolerance +0.002" to -0.01
Width 1"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.14"
Cup Backface ToClear Radius 0.130"
Cone Frontface Backing Diameter 3.52"
Cone Backface Backing Diameter 3.15"
Cup Frontface Backing Diameter 4.09"
Cup Backface Backing Diameter 3.78"
Cage Cone Frontface Clearance 0.08"
Cage Cone Backface Clearance 0.07"
Effective Center Location -0.03"
System of Measurement Inch
Type Bearing
Cone Part Number 29590
Cup Part Number 29520
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 29500
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 29400 lbf
Static Radial Load 36300 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 7610 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5970 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 1.900 lb

Features

How Is 29590-29520 Bearing Engineered for Reliability?

29590-29520 Bearing features a single row tapered roller design, optimised for combined load applications.
Its chrome steel construction ensures durability and resistance to wear under heavy radial and thrust loads.
The bearing can handle dynamic radial loads up to 29,400 lbf, making it suitable for demanding industrial uses.
With a standard radial clearance, it offers reliable performance across a temperature range of -30° to 110°C.

What Makes 29590-29520 Bearing Suitable for High-Temperature Applications?

29590-29520 Bearing is built with chrome steel rollers and rings, capable of operating in temperatures up to 110°C.
Its robust design maintains performance even under high stress, with a static radial load capacity of 36,300 lbf.
The steel cage ensures proper roller alignment, reducing friction and heat generation.
This makes it a dependable choice for machinery exposed to varying thermal conditions.

Built for Durability: 29590-29520 Bearing

29590-29520 Bearing’s tapered roller design provides excellent load distribution, enhancing its lifespan.
The chrome steel components resist wear, even under continuous heavy-duty operation.
Its dynamic thrust rating of 5,970 lbf ensures reliable performance in thrust load scenarios.
With an ABEC-1 rating, it balances precision and durability for industrial applications.

Steel vs Ceramic Bearings: Strengths of 29590-29520 Bearing

29590-29520 Bearing uses high-quality chrome steel for both rollers and rings, offering superior strength.
This material choice ensures it can withstand dynamic radial loads up to 29,400 lbf without compromising performance.
The steel cage provides stability, keeping rollers aligned under stress.
Its design is ideal for applications where durability and load capacity are critical.

Performance Features of 29590-29520 Bearing

29590-29520 Bearing is designed for combined load applications, with a dynamic radial rating of 7,610 lbf.
The tapered roller construction ensures smooth operation, even under heavy stress.
Its chrome steel components resist wear, extending service life in demanding environments.
With standard radial clearance options, it offers flexibility for various industrial uses.

Application

Industrial Uses of 29590-29520 Bearing
The 29590-29520 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in tough working conditions.

In automotive applications, 29590-29520 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The imperial sizing makes it a straightforward replacement for Timken bearings in many vehicles.

For industrial conveyor systems, 29590-29520 Bearing’s open design allows for easy lubrication, extending service life in high-load scenarios. The standard radial clearance offers flexibility for different operational needs.

Where Is 29590-29520 Bearing Used?
You’ll often find 29590-29520 Bearing in mining equipment, where its robust design copes with extreme loads and harsh environments. The steel cage adds extra strength, making it a dependable choice.

In manufacturing plants, 29590-29520 Bearing supports machinery like presses and rollers, ensuring smooth operation. Its ABEC-1 rating provides sufficient precision for most industrial applications.

Built for Heavy-Duty Use: 29590-29520 Bearing
The 29590-29520 Bearing excels in applications like gearboxes and drivetrains, where its tapered rollers manage both radial and thrust loads. Its temperature range suits most industrial settings.

For farm equipment, 29590-29520 Bearing’s durability stands out in tractors and harvesters. The easy interchangeability with Timken bearings simplifies maintenance and replacements.

Automotive vs Aerospace: Applications of 29590-29520 Bearing
In automotive systems, 29590-29520 Bearing is ideal for axles and transmissions, offering reliable performance under stress. Its inch measurements align with many US-made components.

For heavy industrial use, 29590-29520 Bearing handles the demands of large machinery, where its load capacity and durability are key. The open design allows for straightforward maintenance.
