TS (Single Row Tapered Roller Bearings) (Imperial) 25592-25528

TS (Single Row Tapered Roller Bearings) (Imperial) 25592-25528

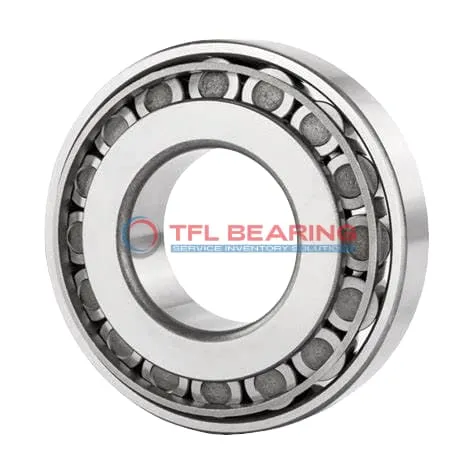

The 25592-25528 is a single-row tapered roller bearing with a 1.8125″ bore and 3.625″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 20300 lbf radially and 3020 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery, automotive systems, or industrial equipment where combined loads are common.

Weighing 1.6 lb, it balances strength and manageability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 25592-25528
  • Brand TFL
  • Interchangeable Timken
  • Size 1.8125" x 3.625" x 0.9376"
  • Bore Dia 1.8125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9376"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.05"
  • Cone Backface Backing Diameter 2.28"
  • Cup Frontface Backing Diameter 3.18"
  • Cup Backface Backing Diameter 3.07"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.25"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 25592
  • Cup Part Number 25528
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 25500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 20300 lbf
  • Static Radial Load 24900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5270 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3020 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.6 lb

Features

Performance Features of 25592-25528 Bearing

25592-25528 Bearing is built with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 20,300 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing friction.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

How Is 25592-25528 Bearing Engineered for Reliability?

25592-25528 Bearing features precise cone and cup dimensions, ensuring smooth operation under high loads.
The tapered roller design distributes stress evenly, extending the bearing’s service life.
Its standard radial clearance allows for flexibility in different applications.
The ABEC-1 rating confirms its consistent quality and performance.

Built for Durability: 25592-25528 Bearing

25592-25528 Bearing’s chrome steel construction resists wear, even in demanding conditions.
The single-row design simplifies installation while maintaining high load capacity.
Its dynamic thrust rating of 3,020 lbf ensures reliable performance in thrust applications.
The bearing requires lubrication, but its sturdy build minimises maintenance needs.

Steel vs Ceramic Bearings: Strengths of 25592-25528 Bearing

25592-25528 Bearing uses chrome steel for both rollers and rings, providing excellent strength and durability.
This material choice ensures reliable performance under high radial and thrust loads.
The steel cage further enhances stability, keeping rollers aligned during operation.
With a weight of 1.6 lb, it balances robustness and practicality.

Application

Industrial Uses of 25592-25528 Bearing
25592-25528 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 25592-25528 Bearing fits well in wheel hubs and differential systems, thanks to its precise imperial sizing. Its open design simplifies lubrication, making maintenance straightforward for mechanics.

For industrial conveyor systems, 25592-25528 Bearing’s robust build and standard radial clearance provide reliable performance. The steel cage adds extra strength, ideal for continuous operation in factories.

Why Is 25592-25528 Bearing Essential in Machinery?
25592-25528 Bearing plays a key role in agricultural machinery, supporting heavy loads in tractors and harvesters. Its ABEC-1 rating ensures consistent performance under varying conditions.

The bearing’s compatibility with Timken models makes it a versatile choice for repair and replacement. Its temperature range of -30° to 110°C suits both indoor and outdoor applications.

Built for Heavy-Duty Use: 25592-25528 Bearing
25592-25528 Bearing excels in mining equipment, where its dynamic radial load capacity of 20300 lbf handles extreme stress. The tapered rollers distribute weight evenly, reducing wear.

In manufacturing plants, 25592-25528 Bearing’s standard radial clearance allows for smooth operation in assembly lines. Its steel cage and chrome steel rollers ensure long service life.

Automotive vs Aerospace: Applications of 25592-25528 Bearing
In automotive systems, 25592-25528 Bearing is often found in drivetrains, where its combined load capacity supports smooth power transmission. The inch sizing aligns with many US-made vehicles.

For aerospace ground equipment, 25592-25528 Bearing’s reliability and temperature tolerance make it suitable for maintenance tools. However, its ABEC-1 rating limits use in high-precision flight components.
