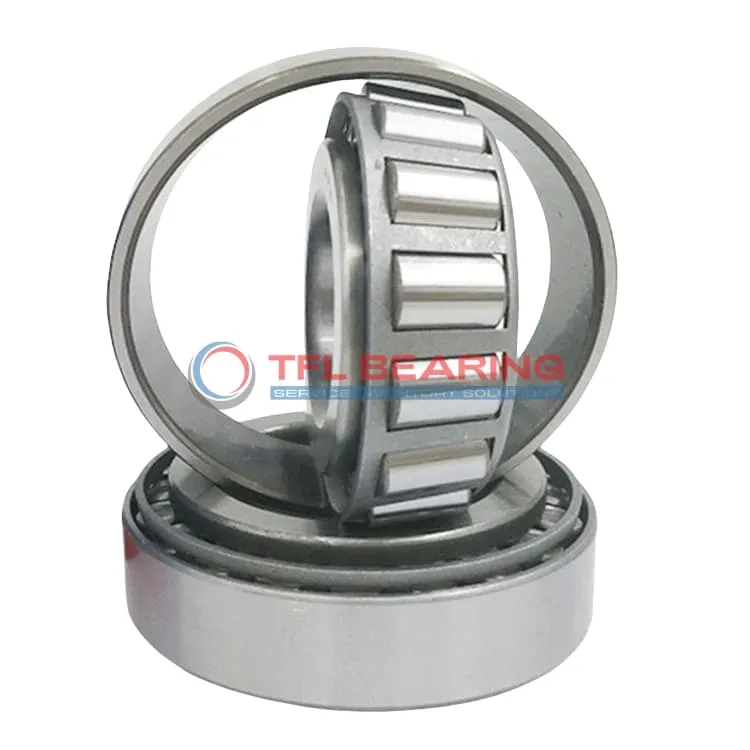

TS (Single Row Tapered Roller Bearings) (Imperial) 18204X-18335E

TS (Single Row Tapered Roller Bearings) (Imperial) 18204X-18335E

The 18204X-18335E is a single-row tapered roller bearing with a 2.0472″ bore and 3.3465″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 11600 lbf radially and 2920 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing just 0.9 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 18204X-18335E
  • Brand TFL
  • Interchangeable Timken
  • Size 2.0472" x 3.3465" x 0.9646"
  • Bore Dia 2.0472"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.3465"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.719"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7087"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9646"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 2.24"
  • Cone Backface Backing Diameter 2.36"
  • Cup Frontface Backing Diameter 3.34"
  • Cup Backface Backing Diameter 2.99"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location 0.08"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 18204X
  • Cup Part Number 18335E
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 18000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 11600 lbf
  • Static Radial Load 14400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3010 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2920 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

How Is 18204X-18335E Bearing Engineered for Reliability?

18204X-18335E Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity of 11600 lbf makes it suitable for demanding industrial applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it offers reliable performance across a temperature range of -30° to 110°C.

Structural Advantages of 18204X-18335E Bearing

18204X-18335E Bearing’s single-row tapered roller design efficiently handles both radial and thrust loads.
The precise cone and cup width tolerances ensure smooth operation and easy installation.
Its effective center location of 0.08″ enhances stability during high-speed rotations.
The open seal type allows for easy lubrication, maintaining optimal performance over time.

Why Choose 18204X-18335E Bearing for Precision Tasks?

18204X-18335E Bearing’s ABEC-1 rating guarantees consistent precision in various applications.
The chrome steel construction resists wear, even under heavy dynamic radial loads up to 11600 lbf.
Its standard radial clearance options provide flexibility for different operational requirements.
The bearing operates reliably within a broad temperature range, ensuring versatility in diverse environments.

Application

Where Is 18204X-18335E Bearing Used?
18204X-18335E Bearing is commonly used in industrial gearboxes, where its tapered roller design efficiently handles combined radial and thrust loads. The chrome steel construction ensures durability in high-stress environments like mining equipment and heavy machinery.

In automotive applications, 18204X-18335E Bearing supports wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models, simplifying maintenance and replacements.

For agricultural machinery, 18204X-18335E Bearing’s robust design withstands the demands of tractors and harvesters. The steel cage enhances stability, even in dusty or uneven operating conditions.

In construction equipment, 18204X-18335E Bearing excels in cranes and excavators, where its dynamic load capacity ensures smooth operation. The standard radial clearance allows for easy integration into existing systems.
