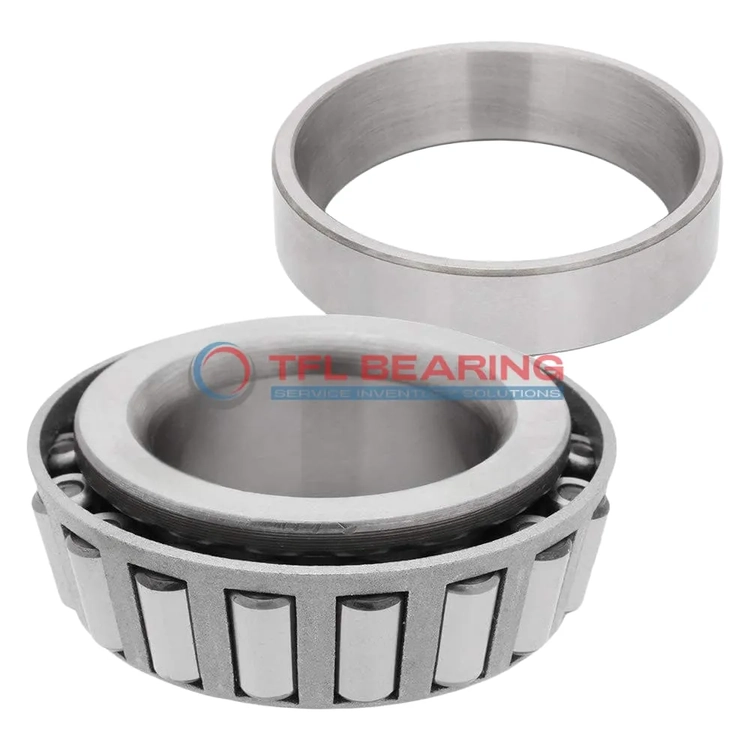

TS (Single Row Tapered Roller Bearings) (Imperial) 15117-15245

TS (Single Row Tapered Roller Bearings) (Imperial) 15117-15245

The 15117-15245 is a single-row tapered roller bearing with a 1.18″ bore and 2.44″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 13500 lbf and works well in temperatures from -30°C to 110°C.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing is interchangeable with Timken models, making it a practical choice for replacements.

With a standard radial clearance and ABEC-1 rating, it offers reliable performance for various applications. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing just 0.6lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and versatile use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 15117-15245
  • Brand TFL
  • Interchangeable Timken
  • Size 1.1806" x 2.4409" x 0.75"
  • Bore Dia 1.1806"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.4409"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.75"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 1.38"
  • Cone Backface Backing Diameter 1.44"
  • Cup Frontface Backing Diameter 2.30"
  • Cup Backface Backing Diameter 2.17"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.23"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 15117
  • Cup Part Number 15245
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 15000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 13500 lbf
  • Static Radial Load 12100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3490 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.600 lb

Features

Performance Features of 15117-15245 Bearing

15117-15245 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 13,500 lbf, ensuring reliable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

How Is 15117-15245 Bearing Engineered for Reliability?

15117-15245 Bearing features a single-row tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction enhances durability, while the standard radial clearance allows for smooth operation.
Its effective centre location of -0.23″ ensures stability under load.
With an ABEC-1 rating, it provides consistent precision in industrial applications.

Built for Durability: 15117-15245 Bearing

15117-15245 Bearing’s tapered roller design distributes loads evenly, reducing stress on components.
The steel cage and chrome steel rollers work together to minimise wear over time.
It supports dynamic thrust ratings up to 2,090 lbf, making it versatile for various machinery.
Maintenance is straightforward, with standard lubrication requirements ensuring long service life.

Steel vs Ceramic Bearings: Strengths of 15117-15245 Bearing

15117-15245 Bearing uses chrome steel for both rings and rollers, offering a balance of strength and affordability.
Its construction handles high dynamic radial loads up to 13,500 lbf without compromising performance.
The standard radial clearance provides flexibility in different operating conditions.
Weighing just 0.600 lb, it combines robustness with ease of handling in industrial settings.

Application

Industrial Uses of 15117-15245 Bearing
15117-15245 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

What Makes 15117-15245 Bearing a Preferred Choice?
In automotive applications, 15117-15245 Bearing supports wheel hubs and axles, providing reliable performance under varying loads. Its inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 15117-15245 Bearing
For industrial gearboxes, 15117-15245 Bearing offers smooth operation and long service life, thanks to its steel cage and precise tolerances. The open design allows for easy lubrication and maintenance.

Automotive vs Aerospace: Applications of 15117-15245 Bearing
While 15117-15245 Bearing excels in automotive systems like differentials, it’s also suitable for aerospace ground support equipment. Its ABEC-1 rating ensures consistent performance in both fields.

Perfect Fit for Automation: 15117-15245 Bearing
In automated conveyor systems, 15117-15245 Bearing handles high radial and thrust loads with ease. The standard radial clearance option makes it versatile for various industrial setups.
