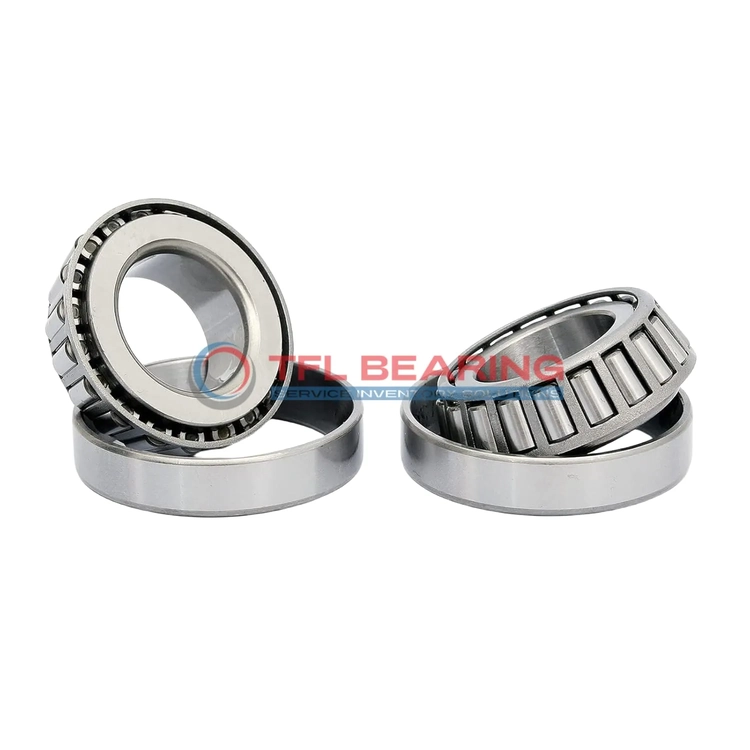

TS (Single Row Tapered Roller Bearings) (Imperial) 15116-15243

TS (Single Row Tapered Roller Bearings) (Imperial) 15116-15243

The 15116-15243 is a single row tapered roller bearing with a 1.1855″ bore and 2.4375″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 13500 lbf radially and 2090 lbf thrust, suitable for demanding applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are present.

Weighing just 0.600 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets essential safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 15116-15243
  • Brand TFL
  • Interchangeable Timken
  • Size 1.1855" x 2.4375" x 0.75"
  • Bore Dia 1.1855"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.75"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.08"
  • Cone Frontface Backing Diameter 1.4"
  • Cone Backface Backing Diameter 1.42"
  • Cup Frontface Backing Diameter 2.30"
  • Cup Backface Backing Diameter 2.13"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.23"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 15116
  • Cup Part Number 15243
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 15000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 13500 lbf
  • Static Radial Load 12100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3490 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.600 lb

Features

How Does 15116-15243 Bearing Handle Combined Loads?

15116-15243 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 13,500 lbf, making it suitable for demanding industrial applications.
The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Why Choose 15116-15243 Bearing for Precision Tasks?

15116-15243 Bearing features precise cone and cup width tolerances, ensuring accurate performance in machinery.
The tapered roller design distributes loads evenly, enhancing stability during operation.
Its ABEC-1 rating confirms consistent quality for general precision applications.
The standard radial clearance allows for smooth rotation under combined loads.

Engineered for Durability: 15116-15243 Bearing

15116-15243 Bearing uses high-quality chrome steel for both rings and rollers, providing excellent wear resistance.
The steel cage maintains roller positioning, preventing misalignment and reducing maintenance needs.
With a static radial load capacity of 12,100 lbf, it handles heavy-duty operations with ease.
Its open design simplifies lubrication, ensuring long-lasting performance.

Application

Industrial Uses of 15116-15243 Bearing
This bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 15116-15243 Bearing Used?
You’ll often find it in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a good fit for older or custom-built vehicles.

Built for Heavy-Duty Use: 15116-15243 Bearing
It’s a reliable choice for industrial fans and pumps, thanks to its ability to manage both radial and thrust loads. The open design allows for easy lubrication and maintenance.

Automotive vs Aerospace: Applications of 15116-15243 Bearing
In automotive settings, it supports drivetrain components, while in aerospace, it’s used in auxiliary systems. The steel cage adds strength without adding unnecessary weight.

Perfect Fit for Automation: 15116-15243 Bearing
This bearing works well in conveyor systems and robotic arms, where precision and load capacity are key. The standard radial clearance ensures smooth operation in various setups.
