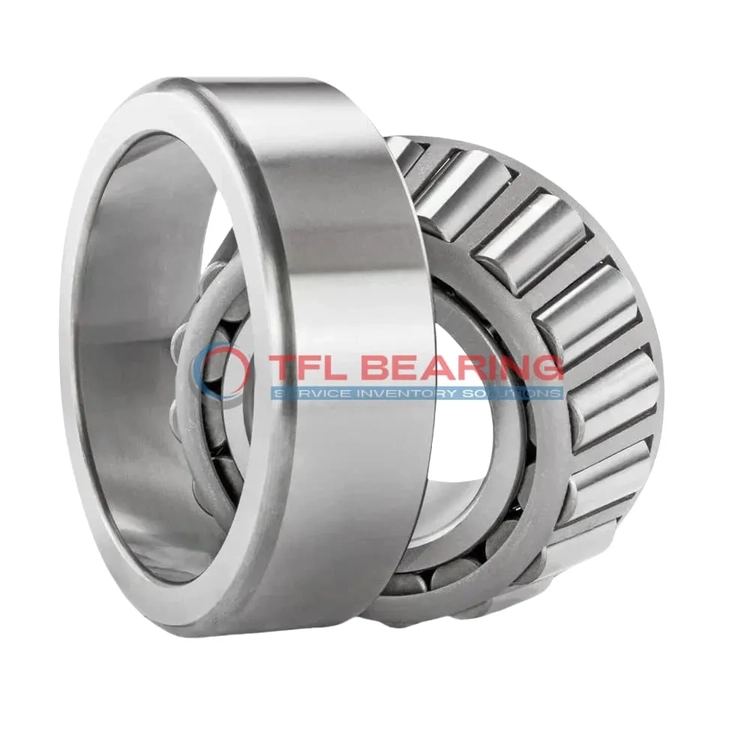

TS (Single Row Tapered Roller Bearings) (Imperial) 13686-13623X

TS (Single Row Tapered Roller Bearings) (Imperial) 13686-13623X

The 13686-13623X is a single-row tapered roller bearing with a 1.5″ bore and 2.717″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 15100 lbf radially and 2700 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance under stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for use in automotive or industrial settings where combined loads are common.

Weighing just 0.8 lb, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 13686-13623X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.5" x 2.717" x 1.1644"
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.717"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.0313"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7269"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1644"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.02"
  • Cone Frontface Backing Diameter 1.69"
  • Cone Backface Backing Diameter 1.79"
  • Cup Frontface Backing Diameter 2.60"
  • Cup Backface Backing Diameter 2.40"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.3"
  • Effective Center Location -0.4"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 13686
  • Cup Part Number 13623X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 13600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 15100 lbf
  • Static Radial Load 15300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.8 lb

Features

How Does 13686-13623X Bearing Handle Combined Loads?

13686-13623X Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 15100 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains proper roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

What Makes 13686-13623X Bearing Suitable for High-Temperature Applications?

13686-13623X Bearing operates effectively in temperatures from -30° to 110°C, maintaining performance under thermal stress.
The chrome steel construction resists deformation, ensuring stability in high-heat conditions.
Its tapered roller design distributes loads evenly, reducing heat buildup.
This makes it a dependable choice for industrial applications with varying temperatures.

Engineered for Precision: 13686-13623X Bearing

13686-13623X Bearing features precise tolerances, with bore diameter accuracy within +0.005″ to 0.
The tapered roller design ensures smooth operation and accurate load distribution.
Its effective center location of -0.4″ enhances alignment in complex assemblies.
This precision engineering makes it ideal for applications requiring exacting standards.

Application

Industrial Uses of 13686-13623X Bearing
13686-13623X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

What Makes 13686-13623X Bearing a Preferred Choice?
In automotive applications, 13686-13623X Bearing fits well in wheel hubs and drivetrains, thanks to its precise imperial sizing and robust load capacity. The open design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 13686-13623X Bearing
For industrial conveyor systems, 13686-13623X Bearing provides reliable performance under constant radial and thrust loads. Its steel cage offers added stability, making it suitable for high-demand environments.

Automotive vs Aerospace: Applications of 13686-13623X Bearing
While 13686-13623X Bearing excels in automotive wheel assemblies, its precision also makes it useful in aerospace landing gear components. The ABEC-1 rating ensures consistent performance across different industries.

Perfect Fit for Automation: 13686-13623X Bearing
In automated production lines, 13686-13623X Bearing supports robotic arms and moving parts with smooth operation. Its standard radial clearance allows for flexibility in various speed settings.
