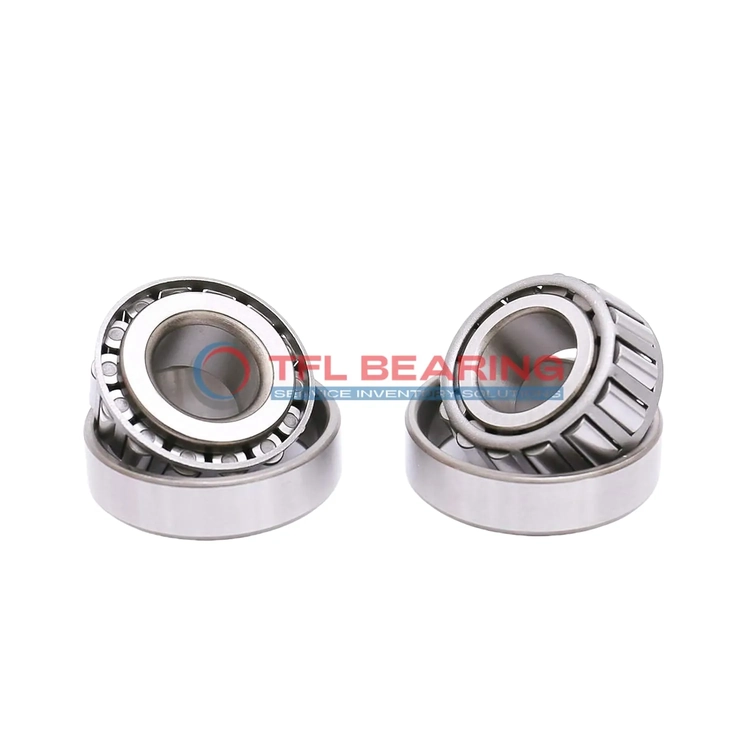

TS (Single Row Tapered Roller Bearings) (Imperial) 02476-02421

TS (Single Row Tapered Roller Bearings) (Imperial) 02476-02421

The 02476-02421 is a single-row tapered roller bearing with a 1.25″ bore and 2.6875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 14300 lbf radially and 2650 lbf thrust, suitable for moderate-speed applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, axles, or industrial equipment where combined loads are present.

Weighing just 0.8 lb, it’s a compact yet robust choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

The standard radial clearance and ABEC-1 rating ensure consistent performance. Its tapered roller design provides excellent load distribution, reducing wear over time.

Perfect for maintenance tasks or new installations, this bearing balances strength and ease of use. Its inch measurements make it a straightforward fit for imperial system machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 02476-02421
  • Brand TFL
  • Interchangeable Timken
  • Size 1.25" x 2.6875" x 0.875"
  • Bore Dia 1.25"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.6875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.52"
  • Cone Backface Backing Diameter 1.54"
  • Cup Frontface Backing Diameter 2.52"
  • Cup Backface Backing Diameter 2.32"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.2"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2476
  • Cup Part Number 2421
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2400
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 14300 lbf
  • Static Radial Load 15800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3720 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2650 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.8 lb

Features

Performance Features of 02476-02421 Bearing

02476-02421 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 14,300 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

02476-02421 Bearing requires lubrication, ensuring smooth operation and extended service life.
Its standard radial clearance options provide flexibility for different industrial needs.

Application

Industrial Uses of 02476-02421 Bearing
02476-02421 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

In automotive applications, 02476-02421 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many American-made vehicles.

For industrial conveyor systems, 02476-02421 Bearing’s open design allows for easy lubrication, extending its service life. The steel cage adds extra strength, making it suitable for high-load scenarios.

Where Is 02476-02421 Bearing Used?
02476-02421 Bearing can be found in agricultural machinery, particularly in gearboxes and PTO shafts. Its robust design handles the demanding conditions of farming equipment.

The bearing also works well in mining equipment, where its ability to manage heavy radial and thrust loads is essential. The standard radial clearance ensures smooth operation even in dusty environments.

Built for Heavy-Duty Use: 02476-02421 Bearing
02476-02421 Bearing is ideal for forestry machinery, where its tapered rollers provide stability under uneven loads. The chrome steel rollers resist wear, even in harsh outdoor conditions.

In material handling systems, 02476-02421 Bearing’s single-row design simplifies installation and maintenance. Its ABEC-1 rating ensures consistent performance for general industrial use.

Automotive vs Aerospace: Applications of 02476-02421 Bearing
In automotive applications, 02476-02421 Bearing is often used in truck axles, where its load capacity meets heavy-duty requirements. The inch measurements align with standard automotive parts.

For aerospace ground support equipment, 02476-02421 Bearing provides reliable performance in load-handling systems. Its temperature range suits various operational environments.
