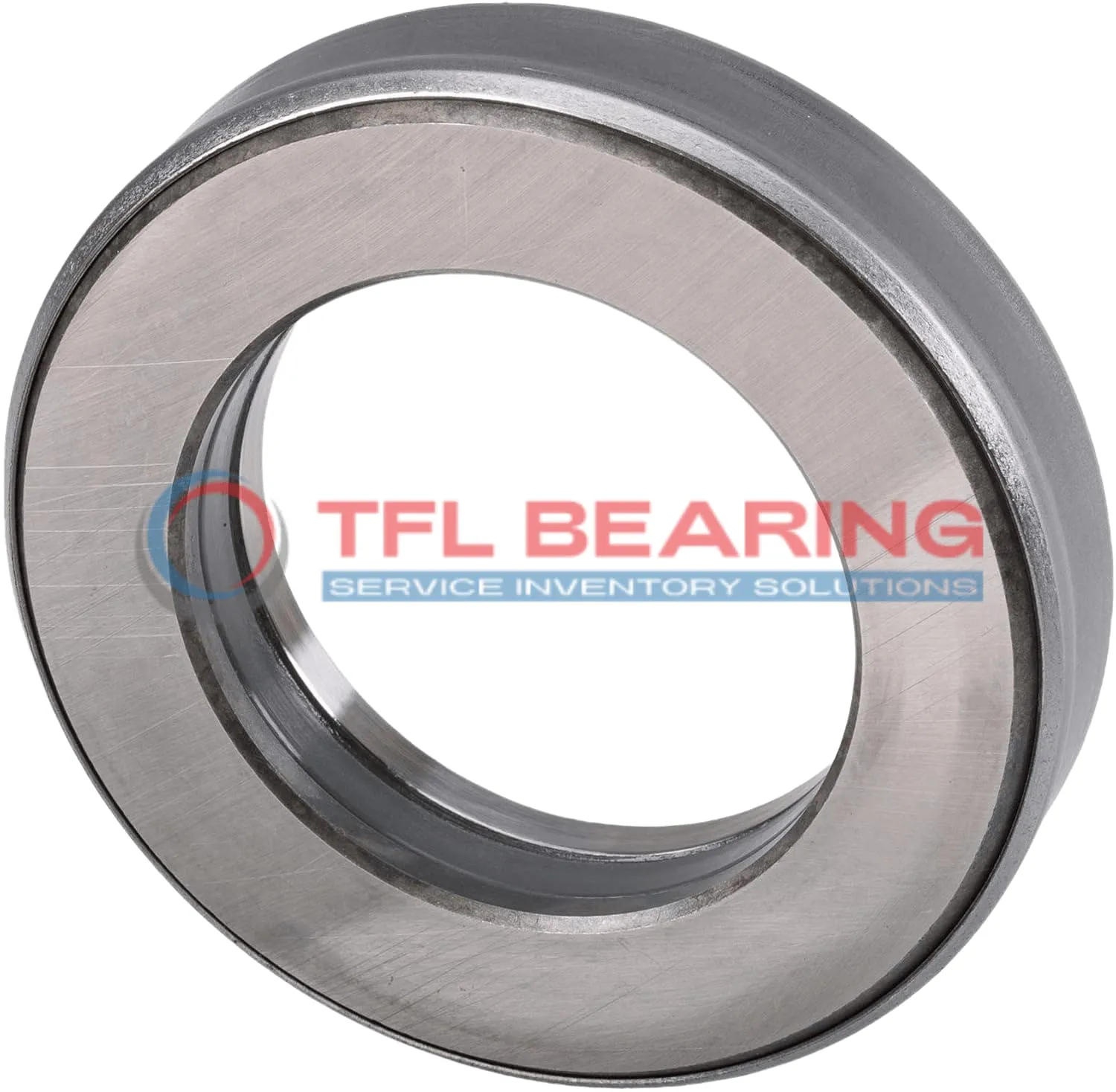

Thrust Ball Bearing With Outside Band T-100-54

Thrust Ball Bearing With Outside Band T-100-54

The T-100-54 is a thrust ball bearing measuring 5″ by 7″ by 1.25″, crafted from durable 52100 chrome steel for strength and longevity. It handles thrust loads up to 11135 lbf, with performance varying by speed, such as 7335 lbf at 100 RPM.

Its open design requires regular lubrication but offers easy maintenance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, making it versatile for various environments.

With 37 balls of 1/2″ diameter, it ensures even load distribution and reliable performance. Ideal for heavy-duty applications like industrial machinery or automotive systems where high thrust loads are common.

Weighing 2.28kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for replacements or new installations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-54
  • Brand TFL
  • Bore Dia 5"
  • Bore Dia Tolerance +0.003" to +0.007"
  • Inner Dia Housing Washer 5.062500"
  • Outer Dia 7"
  • Outer Dia Tolerance -0.031" to +0.031"
  • Width 1.25"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 1/2"
  • Ball Qty 37
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 11135 lbf
  • Dynamic Thrust Load(100 RPM) 7335 lbf
  • Dynamic Thrust Load(500 RPM) 4520 lbf
  • Static Thrust Load 82647 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.28 kg
Thrust Ball Bearing With Outside Band T-100-54 dimension drawing
Download DWG Download PDF

Features

What Makes T-100-54 Bearing Suitable for High-Temperature Applications?

T-100-54 Bearing is crafted from 52100 chrome steel, offering reliable performance in temperatures ranging from -30° to 110°C.
The material ensures durability and resistance to wear, even under high thrust loads.

With a static thrust load capacity of 82647 lbf, it handles demanding applications with ease.
The bearing’s design includes 37 balls, each measuring 1/2″, for balanced load distribution.

Its inch-based measurements, like the 5″ bore diameter, make it compatible with various industrial systems.
T-100-54 Bearing requires lubrication to maintain smooth operation over extended periods.

The outer diameter tolerance of -0.031″ to +0.031″ ensures a precise fit in most assemblies.
This bearing is ideal for heavy-duty machinery where temperature fluctuations are common.

Application

Industrial Uses of T-100-54 Bearing
T-100-54 Bearing is commonly used in heavy machinery, such as hydraulic presses and industrial pumps, where its high thrust load capacity is essential. The inch sizing makes it a good fit for equipment designed to imperial standards.

What Makes T-100-54 Bearing a Preferred Choice?
In automotive applications, T-100-54 Bearing handles thrust loads in components like steering systems and transmissions. Its chrome steel construction ensures durability even under constant stress.

Built for Heavy-Duty Use: T-100-54 Bearing
For construction equipment, T-100-54 Bearing provides reliable performance in cranes and excavators. The required lubrication helps maintain smooth operation in demanding environments.

Automotive vs Aerospace: Applications of T-100-54 Bearing
In automotive settings, T-100-54 Bearing supports high-load scenarios like differential assemblies. For aerospace, its precision and load capacity make it suitable for auxiliary systems.

Perfect Fit for Automation: T-100-54 Bearing
T-100-54 Bearing works well in automated production lines, particularly in robotic arms and conveyor systems. Its consistent performance helps maintain efficiency in high-speed operations.
