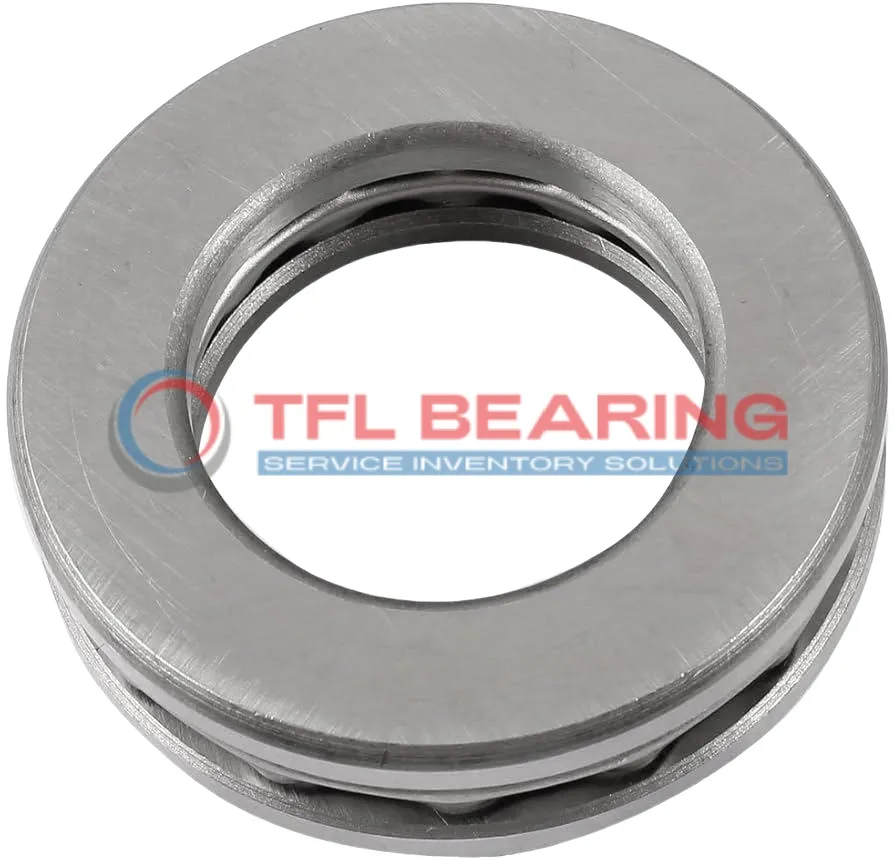

Thrust Ball Bearing With Outside Band T-100-50

Thrust Ball Bearing With Outside Band T-100-50

The T-100-50 is a sturdy thrust ball bearing measuring 3.44″ in bore diameter and 6.25″ in outer diameter, with a width of 2″. Made from durable 52100 chrome steel, it handles heavy thrust loads up to 27,300 lbf.

Its design includes 18 steel balls, each 7/8″ in diameter, ensuring smooth operation under pressure. The bearing performs well in temperatures ranging from -30°C to 110°C, making it suitable for various environments.

Regular lubrication is needed to maintain its performance. This model is compliant with RoHS and REACH standards, ensuring safety and reliability.

Ideal for heavy-duty applications like industrial machinery or equipment requiring high thrust load capacity. Weighing 4.62kg, it’s built to last in demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-50
  • Brand TFL
  • Bore Dia 3.437500"
  • Bore Dia Tolerance +0.002" to +0.004"
  • Inner Dia Housing Washer 3.468750"
  • Outer Dia 6.25"
  • Outer Dia Tolerance -0.031" to +0.031"
  • Width 2"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 7/8"
  • Ball Qty 18
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 27300 lbf
  • Dynamic Thrust Load(100 RPM) 17985 lbf
  • Dynamic Thrust Load(500 RPM) 11080 lbf
  • Static Thrust Load 123132 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.62 kg
Thrust Ball Bearing With Outside Band T-100-50 dimension drawing
Download DWG Download PDF

Features

How Is T-100-50 Bearing Engineered for Reliability?

T-100-50 Bearing is built with 52100 chrome steel rings and balls, ensuring durability under heavy thrust loads.
Its static thrust load capacity reaches 123132 lbf, making it suitable for demanding industrial applications.
The bearing’s inch-based design provides precise measurements, with a bore diameter of 3.437500″ and an outer diameter of 6.25″.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Application

Industrial Uses of T-100-50 Bearing
T-100-50 Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its high thrust load capacity is essential. The inch sizing makes it a good fit for equipment designed to imperial standards.

In automotive applications, T-100-50 Bearing handles axial loads in components like steering systems and heavy-duty transmissions. Its chrome steel construction ensures durability even under constant stress.

For industrial automation, T-100-50 Bearing supports robotic arms and conveyor systems, providing reliable performance in repetitive motion tasks. The required lubrication helps maintain smooth operation over long periods.

Where Is T-100-50 Bearing Used?
You’ll find T-100-50 Bearing in construction equipment, such as cranes and bulldozers, where its robust design handles extreme loads. The wide temperature range also makes it suitable for outdoor use.

In manufacturing plants, T-100-50 Bearing is often used in assembly lines and heavy-duty presses. Its precise tolerances ensure consistent performance in high-demand environments.
