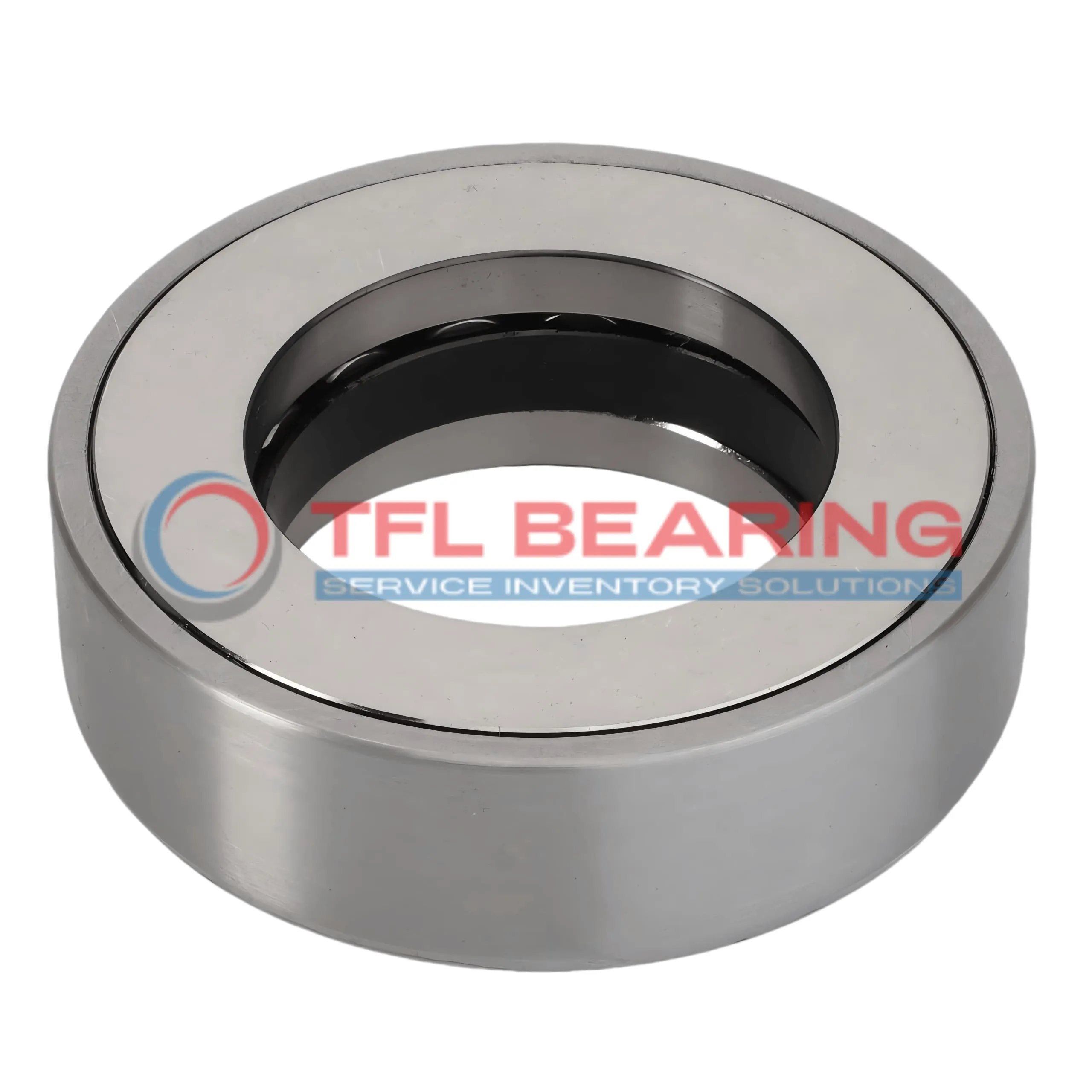

Thrust Ball Bearing With Outside Band T-100-22

Thrust Ball Bearing With Outside Band T-100-22

The T-100-22 is a thrust ball bearing with a 1.5-inch bore and 2.59-inch outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 5945 lbf and performs well across various speeds, from 100 to 1500 RPM.

Its design includes an outside band for added stability, and the 17 steel balls ensure smooth operation. The bearing requires regular lubrication to maintain optimal performance.

Suitable for temperatures between -30°C and 110°C, this model is compliant with RoHS and REACH standards. It’s a reliable choice for industrial machinery or automotive applications where thrust loads are frequent.

Weighing 0.33kg, it’s compact yet durable, with tight tolerances for precise fitting. The inch measurements make it compatible with standard imperial systems.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-22
  • Brand TFL
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.531250"
  • Outer Dia 2.593750"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.937500"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 3/8"
  • Ball Qty 17
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 5945 lbf
  • Dynamic Thrust Load(100 RPM) 3915 lbf
  • Dynamic Thrust Load(500 RPM) 2410 lbf
  • Dynamic Thrust Load(1500 RPM) 1735 lbf
  • Static Thrust Load 21360 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.33 kg

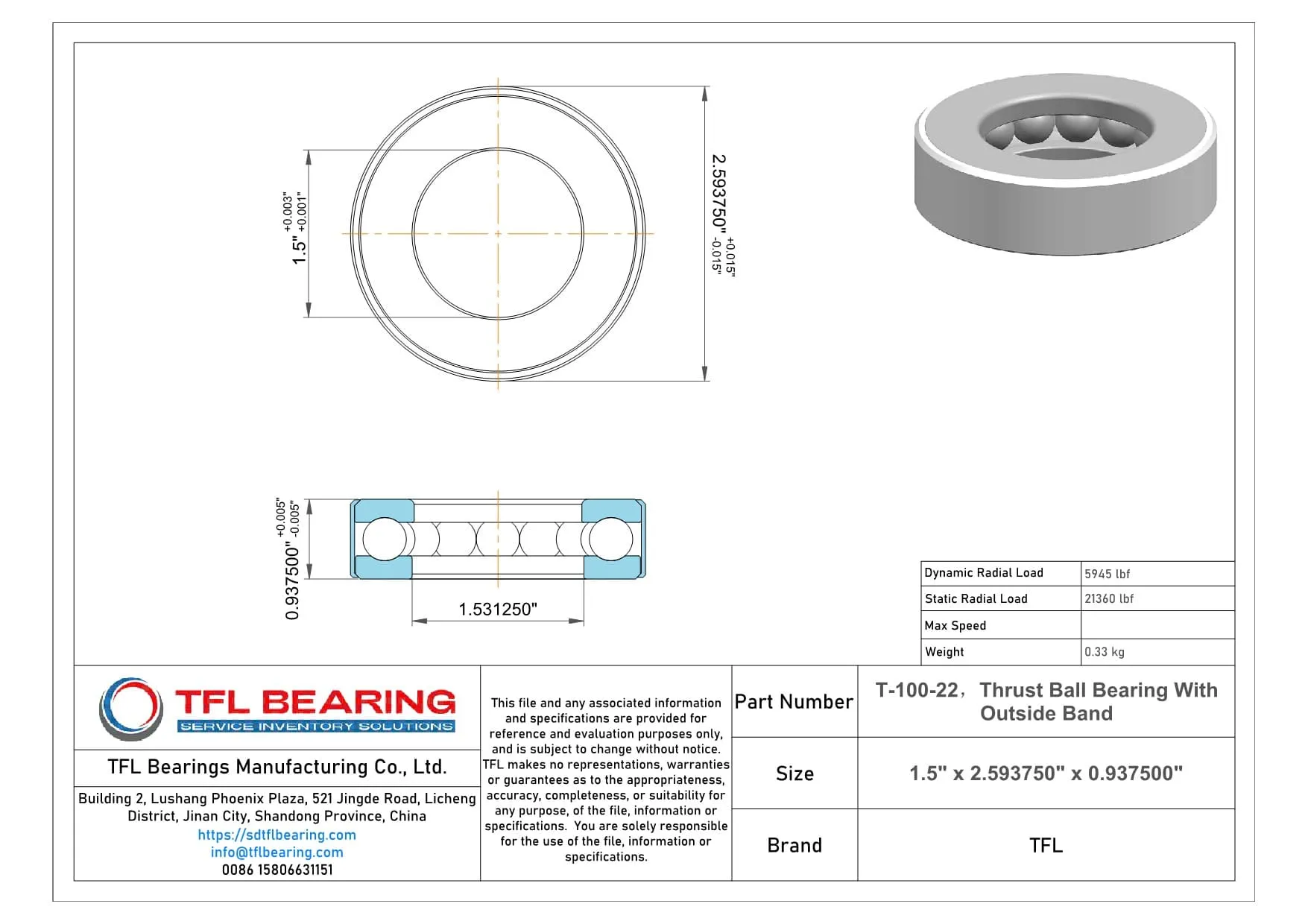

Thrust Ball Bearing With Outside Band T-100-22 dimension drawing
Download DWG Download PDF

Features

How Does T-100-22 Bearing Handle Heavy Loads?

T-100-22 Bearing is crafted from 52100 chrome steel, offering robust resistance to high thrust loads.
Its static thrust load capacity reaches 21360 lbf, making it suitable for demanding industrial applications.
The bearing’s 17 chrome steel balls ensure even load distribution, enhancing durability and performance.
With a temperature range of -30° to 110°C, it operates reliably in various environmental conditions.

Application

Industrial Uses of T-100-22 Bearing
T-100-22 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gear reducers, where its thrust load capacity ensures reliable performance. The inch sizing makes it a good fit for equipment designed to imperial measurements.

Where Is T-100-22 Bearing Used?
You’ll often find T-100-22 Bearing in automotive applications like steering systems, where its durability handles high thrust loads. Its chrome steel construction also makes it suitable for industrial fans and compressors.

Built for Heavy-Duty Use: T-100-22 Bearing
T-100-22 Bearing excels in construction equipment, such as excavators, thanks to its robust design and high static thrust load rating. The required lubrication ensures smooth operation even under demanding conditions.

Automotive vs Aerospace: Applications of T-100-22 Bearing
In automotive settings, T-100-22 Bearing supports components like transmissions, while in aerospace, it’s used in auxiliary systems where precision and reliability are key. Its temperature range suits both environments well.

Perfect Fit for Automation: T-100-22 Bearing
T-100-22 Bearing works well in automated assembly lines, particularly in robotic arms that require precise movement under load. The bearing’s consistent performance helps maintain efficiency in high-speed operations.
