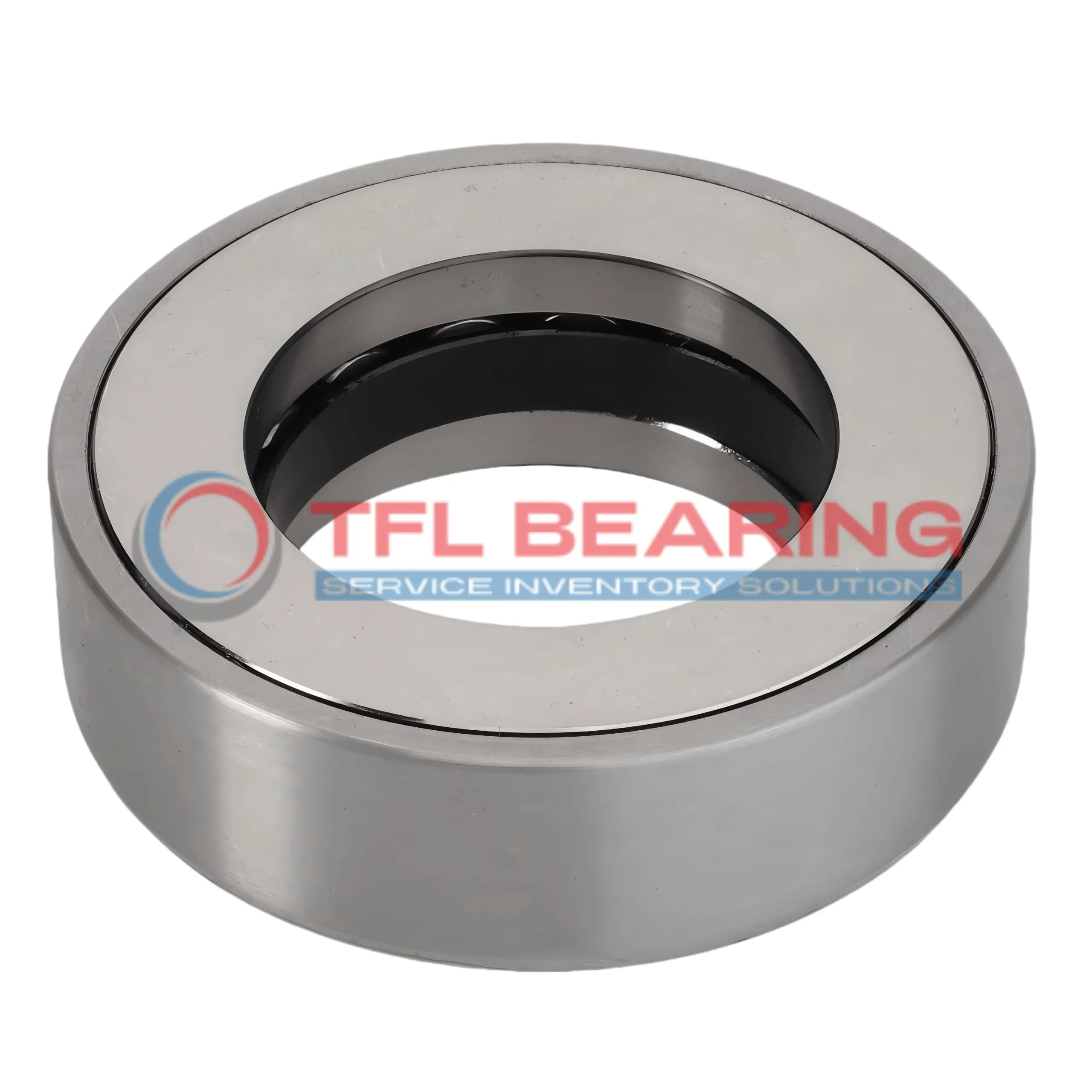

Thrust Ball Bearing With Outside Band T-100-17

Thrust Ball Bearing With Outside Band T-100-17

The T-100-17 is a thrust ball bearing with an outside band, measuring 1.31″ in bore diameter and 2.41″ in outer diameter. Made from durable 52100 chrome steel, it handles thrust loads up to 4395 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its design includes 18 balls, each 5/16″ in diameter, ensuring even load distribution. The bearing requires regular lubrication for optimal performance, making it easy to maintain over time.

This model is suitable for applications with varying speeds, offering reliable performance at 100 RPM (2895 lbf), 500 RPM (1785 lbf), and 1500 RPM (1280 lbf). Ideal for industrial machinery or automotive systems where thrust loads are common.

Weighing just 0.23kg, it’s a robust yet lightweight option. Compliant with RoHS and REACH standards, it’s a safe and reliable choice for various engineering needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-17
  • Brand TFL
  • Bore Dia 1.312500"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.343750"
  • Outer Dia 2.406250"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.687500"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 5/16"
  • Ball Qty 18
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 4395 lbf
  • Dynamic Thrust Load(100 RPM) 2895 lbf
  • Dynamic Thrust Load(500 RPM) 1785 lbf
  • Dynamic Thrust Load(1500 RPM) 1280 lbf
  • Static Thrust Load 15706 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.23 kg
Thrust Ball Bearing With Outside Band T-100-17 dimension drawing
Download DWG Download PDF

Features

Performance Features of T-100-17 Bearing

T-100-17 Bearing is crafted from 52100 chrome steel, offering strong resistance to thrust loads.
Its dynamic thrust load capacity reaches 4395 lbf, ensuring reliable operation under pressure.

The bearing’s 18-ball design distributes load evenly, enhancing durability and smooth performance.
With a temperature range of -30° to 110°C, it adapts well to various working conditions.

T-100-17 Bearing requires lubrication, which helps maintain efficiency and prolongs service life.
Its precise dimensions and tolerances ensure a secure fit and consistent performance.

Application

Industrial Uses of T-100-17 Bearing
T-100-17 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gearboxes, where its robust design handles significant thrust loads. The inch sizing makes it a reliable choice for equipment requiring precise measurements.

Where Is T-100-17 Bearing Used?
In automotive applications, T-100-17 Bearing supports components like steering systems and transmissions, ensuring smooth operation under pressure. Its chrome steel construction offers durability in high-stress environments.

Built for Heavy-Duty Use: T-100-17 Bearing
For industrial fans and compressors, T-100-17 Bearing provides consistent performance with its ability to manage dynamic thrust loads. The required lubrication ensures long-term reliability in demanding conditions.

Automotive vs Aerospace: Applications of T-100-17 Bearing
T-100-17 Bearing is versatile, fitting both automotive transmissions and aerospace actuators, thanks to its high static thrust load capacity. Its temperature range also makes it suitable for varied operational environments.

Essential Roles of T-100-17 Bearing
In robotics, T-100-17 Bearing is often found in joint mechanisms, where its precision and load-handling capabilities are crucial. The stainless steel components enhance its resistance to wear over time.
