Thrust Ball Bearing With Outside Band D7

Thrust Ball Bearing With Outside Band D7

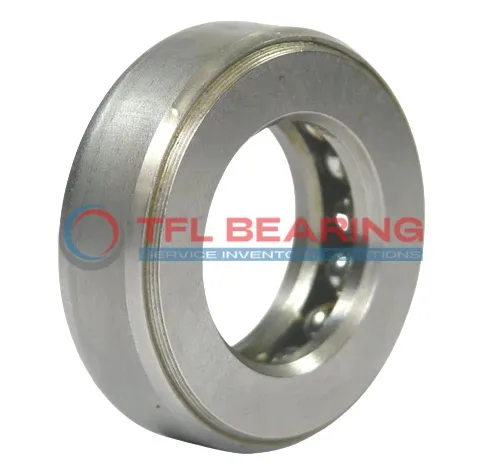

The D7 thrust ball bearing is a compact unit measuring 0.875″×1.844″×0.625″, made from durable 52100 chrome steel. It handles thrust loads up to 6600 lbf and operates smoothly at speeds up to 4100 RPM.

Its outside band design provides stability, while the chrome steel construction ensures long-lasting performance. Regular lubrication is needed to maintain optimal function.

This bearing works well in temperatures from -30°C to 110°C, making it suitable for various industrial applications. It’s compliant with RoHS and REACH standards for safe use.

Weighing just 0.28 lbs, it’s a lightweight yet robust choice for machinery requiring reliable thrust load support. Ideal for gearboxes or heavy-duty equipment.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D7
  • Brand TFL
  • Bore Dia 0.875"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 0.906"
  • Outer Dia 1.844"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.625"
  • Width Tolerance -0.005" to +0.005"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 6600 lbf
  • Static Thrust Load 12200 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4100 rpm
  • Weight 0.28 lbs

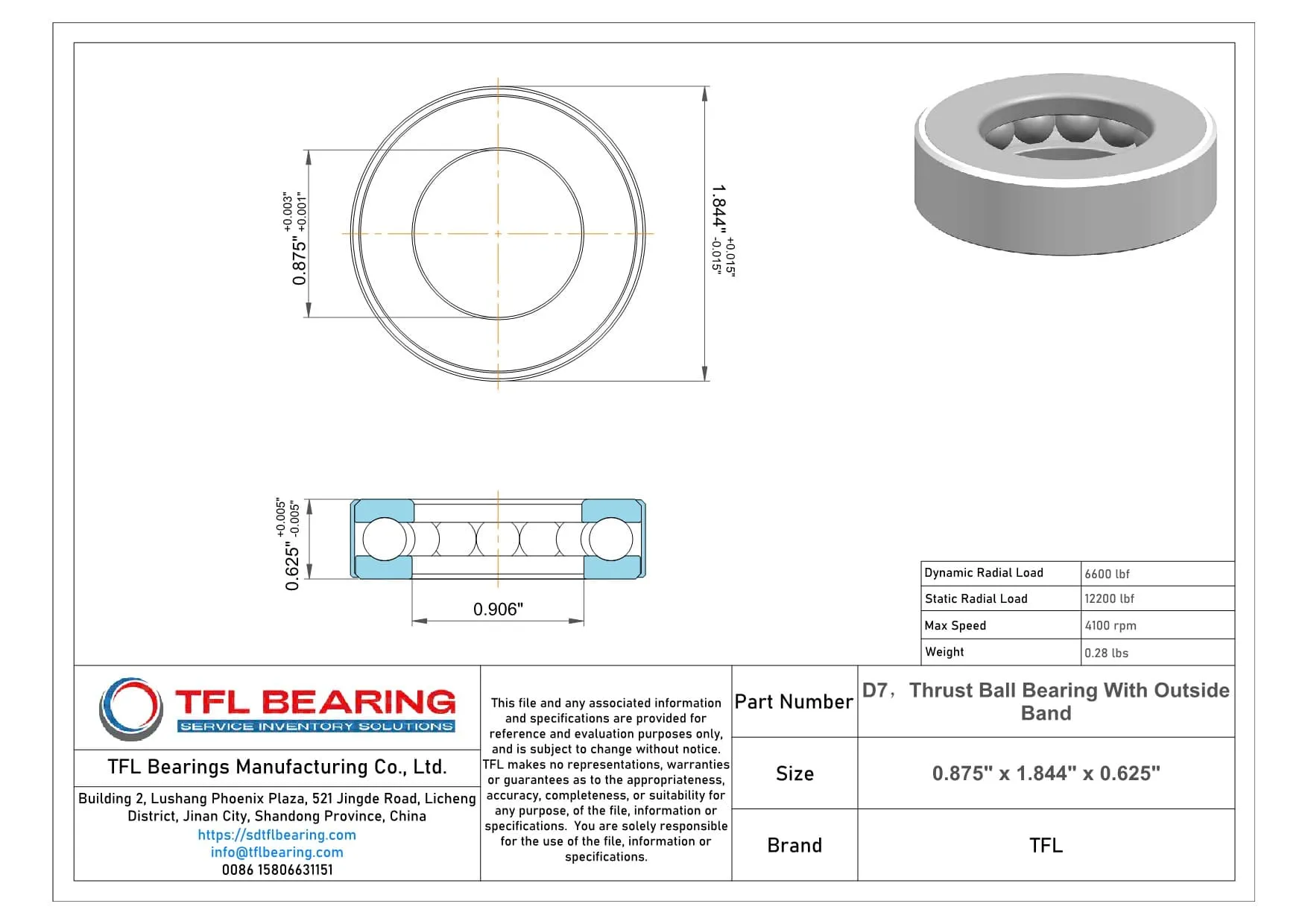

Thrust Ball Bearing With Outside Band D7 dimension drawing
Download DWG Download PDF

Features

How Does D7 Bearing Handle Heavy Loads?

D7 Bearing is crafted from 52100 chrome steel, offering robust resistance to high thrust loads.
Its static thrust load capacity reaches 12,200 lbf, making it suitable for demanding applications.

The inch-sized design ensures compatibility with systems requiring precise measurements.
With a maximum speed of 4,100 rpm, it balances performance and durability.

D7 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its chrome steel construction provides reliable performance in various conditions.

Application

Industrial Uses of D7 Bearing
D7 Bearing is commonly used in industrial settings, especially in machinery that handles axial loads like hydraulic pumps and gear reducers. Its inch sizing makes it a good fit for equipment designed to imperial measurements.

Where Is D7 Bearing Used?
You’ll often find D7 Bearing in automotive applications, such as clutch mechanisms and steering systems, where its high static thrust load capacity ensures reliable performance. The chrome steel construction also helps it withstand demanding conditions.

Built for Heavy-Duty Use: D7 Bearing
D7 Bearing works well in heavy machinery like construction equipment, thanks to its robust design and ability to handle significant thrust loads. The lubrication requirement ensures smooth operation over long periods.

Automotive vs Industrial: Applications of D7 Bearing
In automotive systems, D7 Bearing supports components like transmissions, while in industrial gearboxes, it manages axial forces efficiently. Its temperature range makes it suitable for both hot and cold environments.

Perfect Fit for Automation: D7 Bearing
D7 Bearing is a reliable choice for automated systems, including conveyor belts and robotic arms, where precise axial load management is needed. The chrome steel rings provide durability for continuous operation.
