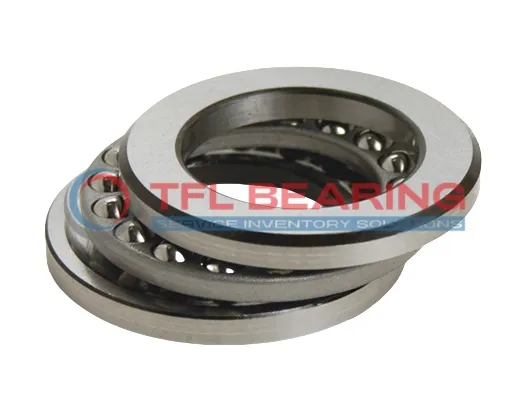

Thrust Ball Bearing With Outside Band D18

Thrust Ball Bearing With Outside Band D18

The D18 is a thrust ball bearing with a 1.563-inch bore and 2.594-inch outer diameter, crafted from durable 52100 chrome steel. It manages thrust loads up to 7700 lbf and operates smoothly at speeds up to 2800 RPM.

Its robust design includes an outside band for added stability, while the chrome steel construction ensures long-lasting performance. The bearing requires regular lubrication for optimal function.

Suitable for temperatures ranging from -30°C to 110°C, it’s a reliable choice for various industrial applications. Ideal for machinery where consistent thrust load handling is needed.

Weighing just 0.45 lbs, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, making it safe and environmentally friendly.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D18
  • Brand TFL
  • Bore Dia 1.563"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.594"
  • Outer Dia 2.594"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.625"
  • Width Tolerance -0.005" to +0.005"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 7700 lbf
  • Static Thrust Load 18300 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2800 rpm
  • Weight 0.45 lbs
Thrust Ball Bearing With Outside Band D18 dimension drawing
Download DWG Download PDF

Features

How Does D18 Bearing Handle Heavy Loads?

D18 Bearing is crafted from 52100 chrome steel, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 7700 lbf, making it suitable for demanding applications.
The precise tolerances in bore and outer diameters ensure a secure fit and smooth operation.
With a maximum speed of 2,800 rpm, it delivers reliable performance under stress.

Application

Industrial Uses of D18 Bearing
D18 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gear reducers, where its thrust load capacity handles axial forces effectively. The inch sizing makes it a good fit for equipment designed to imperial standards.

Where Is D18 Bearing Used?
You’ll find D18 Bearing in automotive applications like steering systems, where its chrome steel construction ensures durability under constant pressure. Its precise tolerances help maintain smooth operation over time.

Built for Heavy-Duty Use: D18 Bearing
D18 Bearing works well in industrial fans and compressors, thanks to its ability to manage high thrust loads. The required lubrication ensures long service life even in demanding conditions.

Automotive vs Industrial: Applications of D18 Bearing
In automotive settings, D18 Bearing supports clutch mechanisms, while in industrial gearboxes, it handles axial loads reliably. Its temperature range suits both environments without compromising performance.

Practical Applications of D18 Bearing
D18 Bearing fits nicely into conveyor systems, where its thrust capacity keeps operations running smoothly. The stainless steel components resist wear, making it a low-maintenance option for busy production lines.
