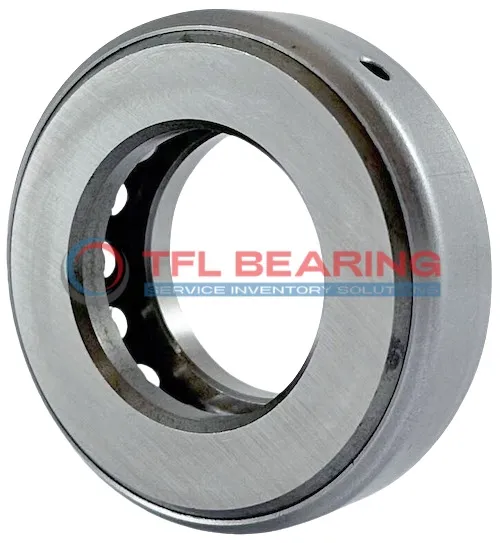

Thrust Ball Bearing With Outside Band B30

Thrust Ball Bearing With Outside Band B30

The B30 is a thrust ball bearing with a 2.313″ bore and 3.719″ outer diameter, crafted from sturdy 52100 chrome steel. It handles heavy thrust loads up to 14000 lbf and operates smoothly at speeds up to 2000 RPM.

Its compact width of 0.875″ makes it suitable for tight spaces, while the chrome steel construction ensures durability. The bearing requires regular lubrication for optimal performance.

Designed for thrust applications, it works well in industrial machinery or automotive systems where space is limited. It performs reliably in temperatures ranging from -30°C to 110°C.

Weighing 0.54kg, it’s a robust yet manageable component. Compliant with RoHS and REACH standards, it’s a safe choice for various engineering needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number B30
  • Brand TFL
  • Bore Dia 2.313"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 2.344"
  • Outer Dia 3.719"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.875"
  • Width Tolerance -0.005" to +0.005"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 14000 lbf
  • Static Thrust Load 36000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2000 rpm
  • Weight 0.54 kg
Thrust Ball Bearing With Outside Band B30 dimension drawing
Download DWG Download PDF

Features

Why Choose B30 Bearing for Precision Tasks?

B30 Bearing is crafted from 52100 chrome steel, offering strong resistance to wear and high thrust loads.
Its dynamic thrust load capacity reaches 14,000 lbf, making it suitable for demanding applications.
The precise tolerances in bore and outer diameters ensure smooth operation and easy installation.
With a temperature range of -30° to 110°C, B30 Bearing performs reliably in various conditions.

Application

Industrial Uses of B30 Bearing
B30 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gear reducers, where its inch sizing fits standard industrial equipment. The chrome steel construction ensures durability under high thrust loads.

Where Is B30 Bearing Used?
You’ll often find B30 Bearing in automotive applications like steering systems, where its precise tolerances help maintain smooth operation. Its robust design also handles the demands of frequent use.

Built for Heavy-Duty Use: B30 Bearing
B30 Bearing excels in construction equipment, supporting components like crane hooks and winches. The wide temperature range makes it suitable for both indoor and outdoor environments.

Automotive vs Aerospace: Applications of B30 Bearing
In automotive settings, B30 Bearing is ideal for transmissions, while in aerospace, it supports auxiliary systems. Its balance of strength and precision meets diverse industry needs.

Practical Applications of B30 Bearing
B30 Bearing works well in industrial fans, where its open design allows for easy lubrication. The high static thrust load capacity ensures reliability in continuous operation.
