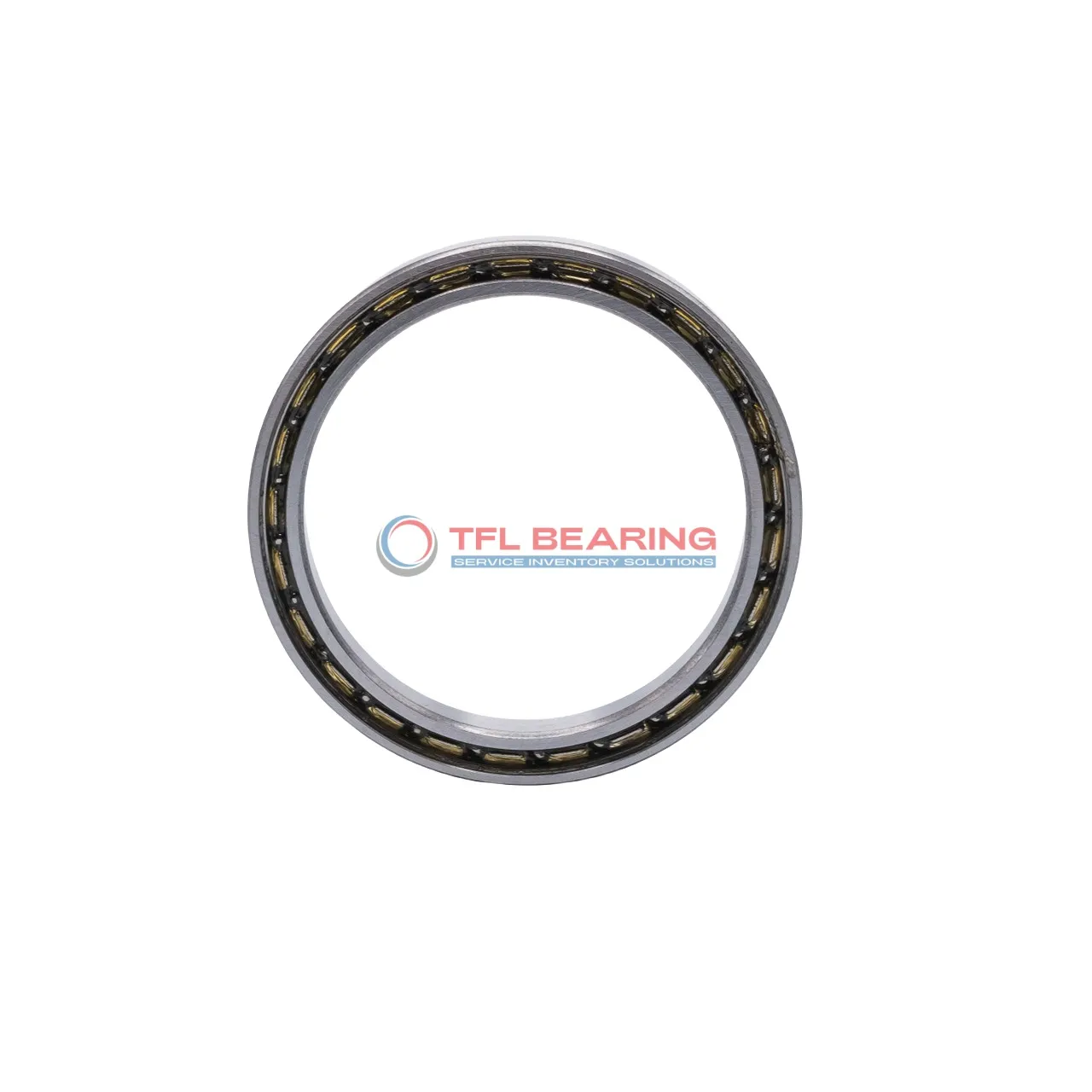

Thin Section Ball Bearings S6916

Thin Section Ball Bearings S6916

The S6916 is a thin-section ball bearing with an 80mm bore and 110mm outer diameter, crafted entirely from stainless steel for durability. Its slim 16mm width makes it ideal for space-constrained applications.

This bearing handles radial loads up to 5018 lbf and operates smoothly at speeds reaching 5100 RPM. The open design requires lubrication but allows for easy maintenance when needed.

With ABEC-1 precision and C0 clearance, it offers reliable performance in temperatures from -86°F to 230°F. The all-stainless construction resists corrosion in demanding environments.

Weighing 382g, it’s a lightweight solution for machinery where precision and space efficiency matter. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6916
  • Brand TFL
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 16 mm
  • Width Tolerance -0.150mm to 0
  • Radial Clearance 0.01mm to 0.03mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 5018 lbf
  • Static Radial Load 4836 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5100 rpm
  • Weight 382 g
  • Price（$） 3.5
Thin Section Ball Bearings S6916 dimension drawing
Download DWG Download PDF

Features

Performance Features of S6916 Bearing

S6916 Bearing is constructed with stainless steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity reaches 5018 lbf, making it suitable for various applications.

The thin-section design of S6916 Bearing saves space while maintaining high performance.
With a maximum speed of 5,100 rpm, it ensures smooth operation in demanding conditions.

S6916 Bearing operates efficiently within a wide temperature range of -86 to 230 °F.
Its stainless steel construction provides resistance to corrosion, enhancing durability.

The open seal design of S6916 Bearing allows for easy lubrication and maintenance.
Its ABEC-1 tolerance ensures consistent performance in precision applications.

Application

Industrial Uses of S6916 Bearing
S6916 Bearing is commonly used in industrial machinery where space is limited but radial load support is essential, such as in packaging equipment and textile machines. Its thin-section design allows for compact installations without sacrificing performance.

Where Is S6916 Bearing Used?
You’ll often find S6916 Bearing in automation systems, particularly in robotic arms and conveyor belts, where its stainless steel construction ensures durability. The open seal design also makes it easier to lubricate for long-term use.

Built for Heavy-Duty Use: S6916 Bearing
S6916 Bearing handles radial loads efficiently in applications like printing presses and medical imaging devices. Its ABEC-1 tolerance ensures reliable performance in precision-driven environments.

Automotive vs Aerospace: Applications of S6916 Bearing
In automotive systems, S6916 Bearing fits well in steering columns and electric motors due to its compact size. For aerospace, it’s suitable for auxiliary equipment where weight and space are critical factors.

Perfect Fit for Automation: S6916 Bearing
S6916 Bearing works seamlessly in 3D printers and CNC machines, offering smooth motion control. The stainless steel materials also resist corrosion, making it ideal for humid or demanding environments.
