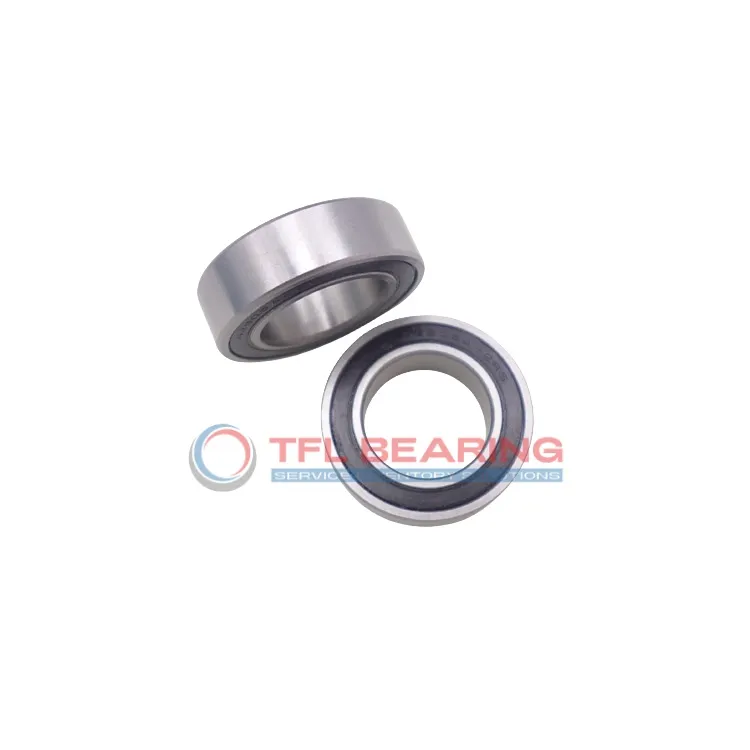

Thin Section Ball Bearings S6916 2rs

Thin Section Ball Bearings S6916 2rs

The S6916 2RS is a slim, sealed ball bearing measuring 80mm by 110mm by 16mm, crafted entirely from stainless steel for corrosion resistance. It handles radial loads up to 5018 lbf and operates smoothly at speeds up to 5100 RPM.

Its sealed design keeps out dust and moisture, making it low-maintenance, while the stainless steel cage ensures durability. The bearing works in temperatures from -86°F to 230°F, suitable for varied environments.

With a radial clearance of 0.01mm to 0.03mm, it offers precise movement for applications needing accuracy. Ideal for use in medical equipment, robotics, or small machinery where space is limited.

Weighing just 382g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a reliable choice for eco-conscious projects.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6916 2rs
  • Brand TFL
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 16 mm
  • Width Tolerance -0.150mm to 0
  • Radial Clearance 0.01mm to 0.03mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 5018 lbf
  • Static Radial Load 4836 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5100 rpm
  • Weight 382 g
  • Price（$） 3.5
Thin Section Ball Bearings S6916 2rs dimension drawing
Download DWG Download PDF

Features

Why Choose S6916 2rs Bearing for Precision Tasks?

S6916 2rs Bearing features a sealed design, protecting against contaminants while maintaining smooth operation.
Its stainless steel construction ensures resistance to corrosion, making it suitable for various environments.

The bearing handles dynamic radial loads up to 5018 lbf, providing reliable performance in demanding applications.
With a maximum speed of 5,100 rpm, it balances efficiency and durability.

S6916 2rs Bearing’s ABEC-1 tolerance class ensures consistent precision for radial load applications.
Its compact 16 mm width makes it ideal for space-constrained installations.

Application

Industrial Uses of S6916 2RS Bearing
S6916 2RS Bearing is commonly used in industrial machinery, especially where space is limited but radial load support is needed, like in packaging equipment. Its sealed design helps keep contaminants out, extending service life in dusty environments.

Where Is S6916 2RS Bearing Used?
In robotics, S6916 2RS Bearing fits well in joint assemblies due to its slim profile and smooth operation. The stainless steel construction also resists corrosion, ideal for humid or washdown settings.

Perfect Fit for Automation: S6916 2RS Bearing
S6916 2RS Bearing works seamlessly in automated conveyor systems, where its low friction reduces energy consumption. The ABEC-1 tolerance ensures reliable performance without over-engineering.

Medical vs Industrial: Where S6916 2RS Bearing Excels
S6916 2RS Bearing suits medical devices like MRI scanners, where quiet operation matters, while also handling industrial loads in food processing mixers. The wide temperature range adds versatility.

How Does S6916 2RS Bearing Support High-Speed Operations?
S6916 2RS Bearing maintains stability in high-speed dental drills thanks to its balanced design. The sealed lubrication stays intact even during rapid rotations.
