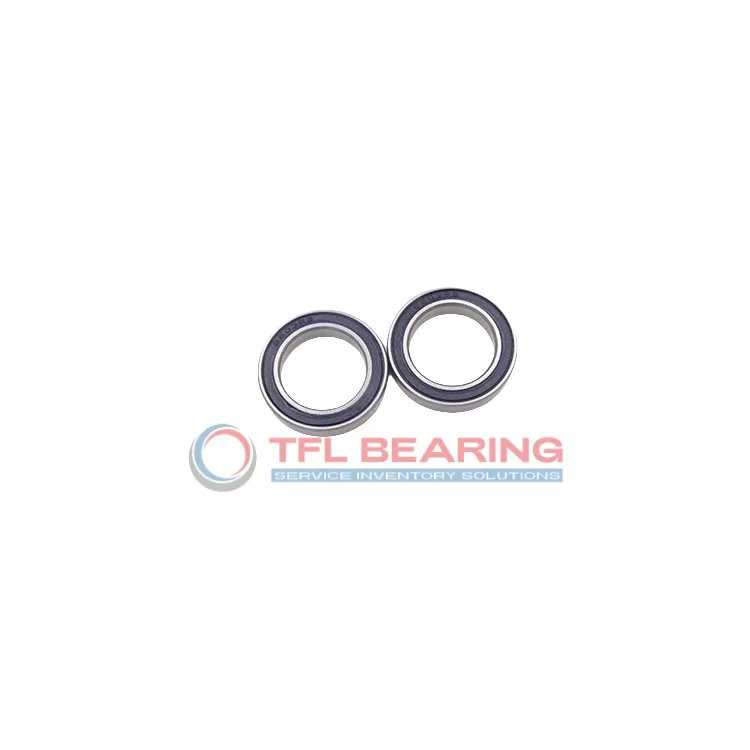

Thin Section Ball Bearings S6817 2rs

Thin Section Ball Bearings S6817 2rs

The S6817 2RS is a thin-section ball bearing with an 85mm bore and 110mm outer diameter, designed for radial loads. Its compact 13mm width makes it ideal for space-constrained applications.

Made entirely from stainless steel, it offers good corrosion resistance and handles radial loads up to 3784 lbf. The sealed design keeps lubrication in and contaminants out, extending service life.

With a maximum speed of 5000 RPM, it performs well in moderate-speed operations. The bearing operates in temperatures from -86°F to 230°F, suitable for various environments.

Weighing 266g, it’s a lightweight solution for machinery where weight matters. Compliant with RoHS and REACH standards, it’s a reliable choice for food processing or medical equipment.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6817 2rs
  • Brand TFL
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 13 mm
  • Width Tolerance -0.200mm to 0
  • Radial Clearance 0.012mm to 0.036mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 3784 lbf
  • Static Radial Load 3844 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 266 g
  • Price（$） 2.8
Thin Section Ball Bearings S6817 2rs dimension drawing
Download DWG Download PDF

Features

How Does S6817 2rs Bearing Reduce Friction?

S6817 2rs Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design helps retain lubrication, reducing wear and maintaining performance over time.

The ABEC-1 tolerance class ensures consistent precision, suitable for radial load applications.
With a dynamic radial load capacity of 3784 lbf, it handles demanding conditions reliably.

S6817 2rs Bearing operates efficiently in temperatures ranging from -86 to 230 °F.
Its compact 13 mm width makes it ideal for space-constrained installations.

Application

Common Applications of S6817 2rs Bearing
S6817 2rs Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery, where its thin section design saves space without compromising performance. The sealed construction keeps contaminants out, ensuring long service life.

In automotive applications, S6817 2rs Bearing fits well in electric motor assemblies and steering systems, thanks to its stainless steel components that resist corrosion. Its ABEC-1 tolerance provides reliable performance under radial loads.

For medical devices like surgical robots, S6817 2rs Bearing offers smooth operation due to its low friction and consistent radial clearance. The temperature range makes it suitable for various sterilisation processes.

In consumer electronics, S6817 2rs Bearing can be found in high-end printers and scanners, where quiet operation and durability are key. The lightweight design also helps in reducing overall device weight.
