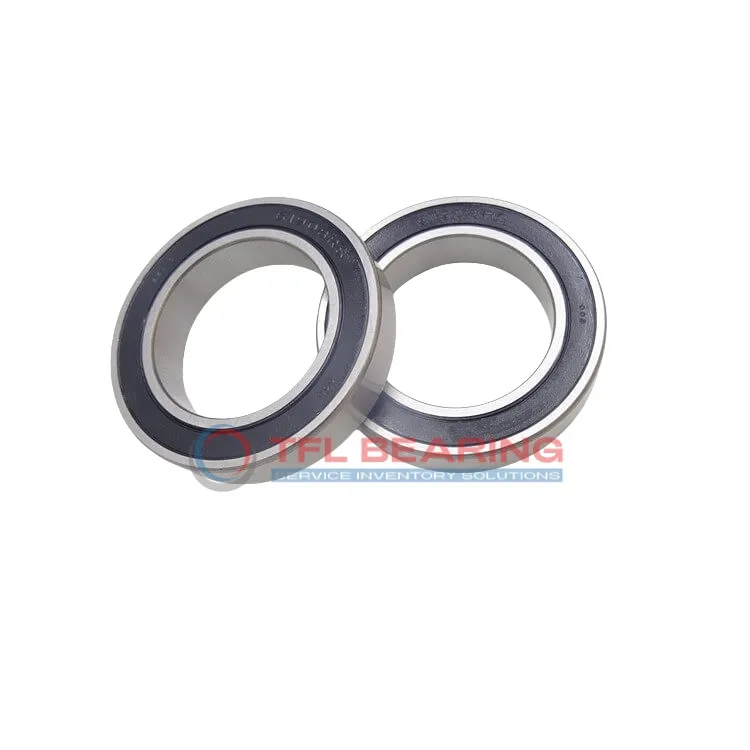

Thin Section Ball Bearings S6813 2rs

Brand: TFL Bearing 65 mm × 85 mm × 10 mm Metric Sealed
Part number: S6813 2rs
Thin Section Ball Bearings S6813 2rs
In Stock
US$2.80 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia65 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia85 mm
Outer Dia Tolerance-0.015mm to 0
Width10 mm
Width Tolerance-0.150mm to 0
Performance
Dynamic Radial Load2,408 lbf
Static Radial Load2,327 lbf
Temperature Range-86 to 230 °F
Max Speed7,740 rpm
Characteristics
Radial Clearance0.008mm to 0.028mm
System of MeasurementMetric
Bearing TypeBall
For Load DirectionRadial
ConstructionSingle Row
Seal TypeSealed
Tolerance ClassABEC-1
Radial Clearance Trade NoC0
LubricationRequired
Weight126 g
Material
Ring MaterialStainless Steel
Ball MaterialStainless Steel
Cage MaterialStainless Steel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The S6813 2RS is a slim, sealed ball bearing measuring 65mm by 85mm by 10mm, crafted entirely from stainless steel for durability. It handles radial loads up to 2408 lbf and spins smoothly at speeds reaching 7740 RPM.

Its sealed design keeps out dust and moisture, making maintenance easier. The bearing operates in temperatures from -86°F to 230°F, suitable for various environments.

With a C0 radial clearance, it offers reliable performance in precision applications. Ideal for use in robotics or medical equipment where space is limited but performance is key.

Weighing just 126g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for diverse industries.

Features

How Does S6813 2rs Bearing Reduce Friction?

S6813 2rs Bearing features a sealed design with stainless steel components, ensuring smooth operation and reduced friction.

Its precision-engineered single row construction maintains consistent performance under radial loads up to 2408 lbf.

The ABEC-1 tolerance class and C0 radial clearance contribute to its reliable and efficient functionality.

With a maximum speed of 7,740 rpm, it is suitable for various applications requiring durability and precision.

Application

Common Applications of S6813 2rs Bearing
S6813 2rs Bearing is widely used in industrial automation, especially in robotic arms and precision machinery, where its thin section design saves space without compromising performance. The sealed construction keeps contaminants out, ensuring long service life in dusty environments.

In automotive applications, S6813 2rs Bearing fits well in compact electric motors and steering systems, thanks to its stainless steel build and reliable radial load capacity. Its ABEC-1 tolerance makes it suitable for standard precision needs.

For medical devices like portable imaging equipment, S6813 2rs Bearing offers smooth operation and resistance to corrosion, crucial for maintaining hygiene and reliability. The wide temperature range also ensures stability in various clinical settings.

Around the home, S6813 2rs Bearing can be found in high-end kitchen appliances and power tools, where its durability and quiet operation enhance user experience. The lightweight design makes it ideal for handheld devices.
