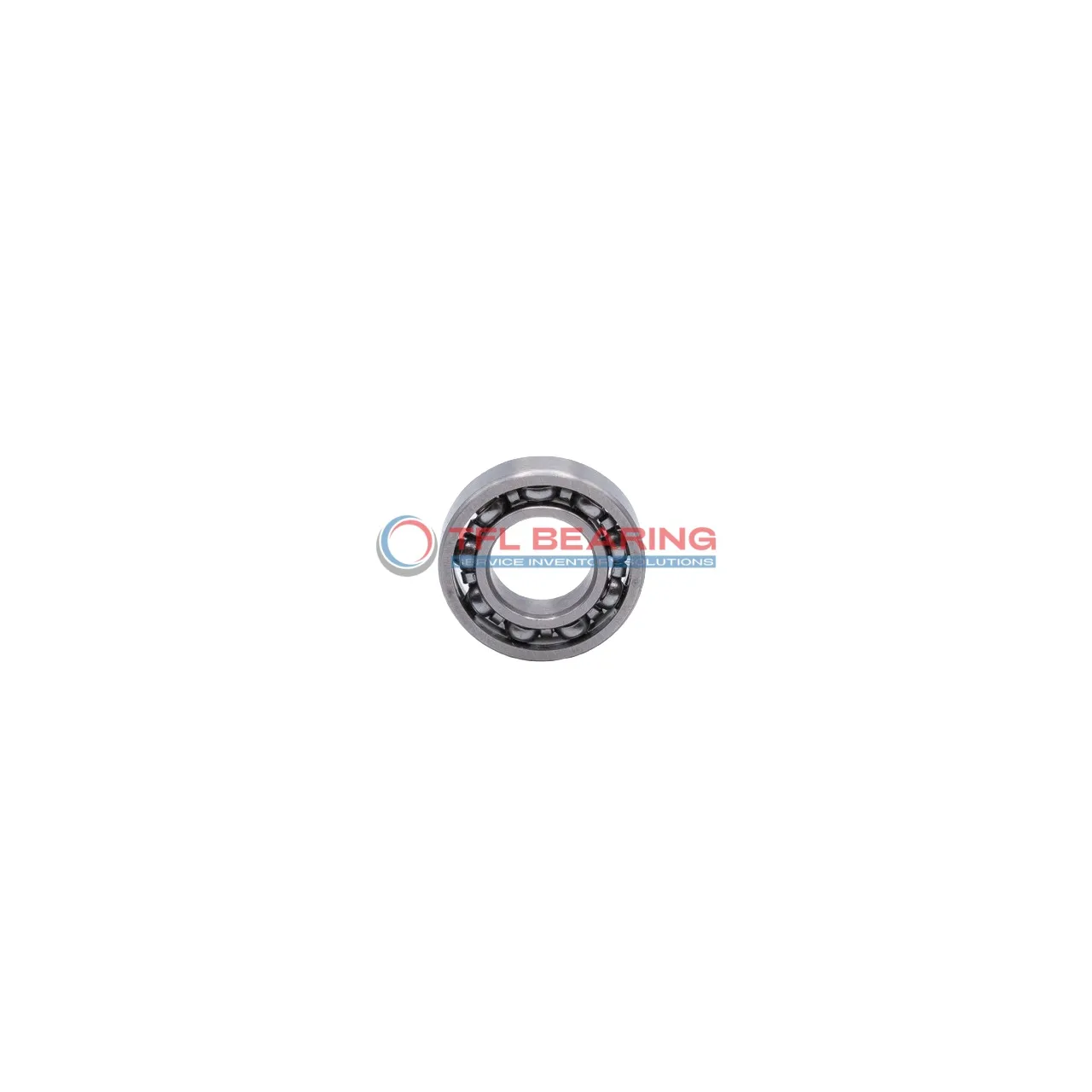

Thin Section Ball Bearings S6805

Thin Section Ball Bearings S6805

The S6805 is a slim, single-row ball bearing measuring 25mm by 37mm by 7mm, crafted entirely from stainless steel for durability. It handles radial loads up to 870 lbf and spins smoothly at speeds up to 16,200 RPM.

Its open design allows for easy lubrication, while the ABEC-1 tolerance ensures reliable performance. The bearing operates in temperatures from -86°F to 230°F, making it versatile for various environments.

With a lightweight build of just 24g, it’s ideal for applications where space and weight are critical, such as robotics or small machinery. Compliant with RoHS and REACH standards, it’s a safe and practical choice for many industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6805
  • Brand TFL
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 37 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 870 lbf
  • Static Radial Load 595 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 16200 rpm
  • Weight 24 g
  • Price（$） 3
Thin Section Ball Bearings S6805 dimension drawing
Download DWG Download PDF

Features

Performance Features of S6805 Bearing

S6805 Bearing is constructed with stainless steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity of 870 lbf ensures steady performance in various applications.

The thin section design at 7 mm width makes S6805 Bearing ideal for space-constrained installations.
With a maximum speed of 16,200 rpm, it balances efficiency and durability.

Why Choose S6805 Bearing for Precision Tasks?

S6805 Bearing features ABEC-1 tolerance and C0 radial clearance for consistent precision.
The stainless steel cage maintains ball alignment, reducing friction and wear.

Its temperature range of -86 to 230°F allows operation in diverse environments.
The lightweight design at 24 g ensures easy handling without compromising strength.

Designed for Durability: S6805 Bearing

S6805 Bearing’s all-stainless steel construction resists corrosion and extends service life.
The open seal design simplifies lubrication, ensuring smooth operation over time.

With a static radial load capacity of 595 lbf, it handles moderate loads reliably.
Its compact size (25 mm×37 mm×7 mm) suits applications where space is limited.

Application

Industrial Uses of S6805 Bearing
S6805 Bearing is commonly used in industrial machinery where space is limited, such as compact gearboxes and small conveyor systems. Its thin section design ensures it fits neatly without compromising performance.

What Makes S6805 Bearing a Preferred Choice?
In robotics, S6805 Bearing provides smooth motion in joints and pivots, thanks to its stainless steel construction. The open design allows for easy lubrication, extending its lifespan in high-movement applications.

Perfect Fit for Automation: S6805 Bearing
For automated production lines, S6805 Bearing offers reliable radial load support in components like linear guides. Its lightweight design helps reduce overall system weight while maintaining durability.

Medical vs Industrial: Where S6805 Bearing Excels
In medical devices, S6805 Bearing’s stainless steel material ensures hygiene and corrosion resistance, ideal for surgical tools. Meanwhile, in industrial settings, it handles moderate radial loads efficiently in equipment like packaging machines.
