Thin Section Ball Bearings S6804zz

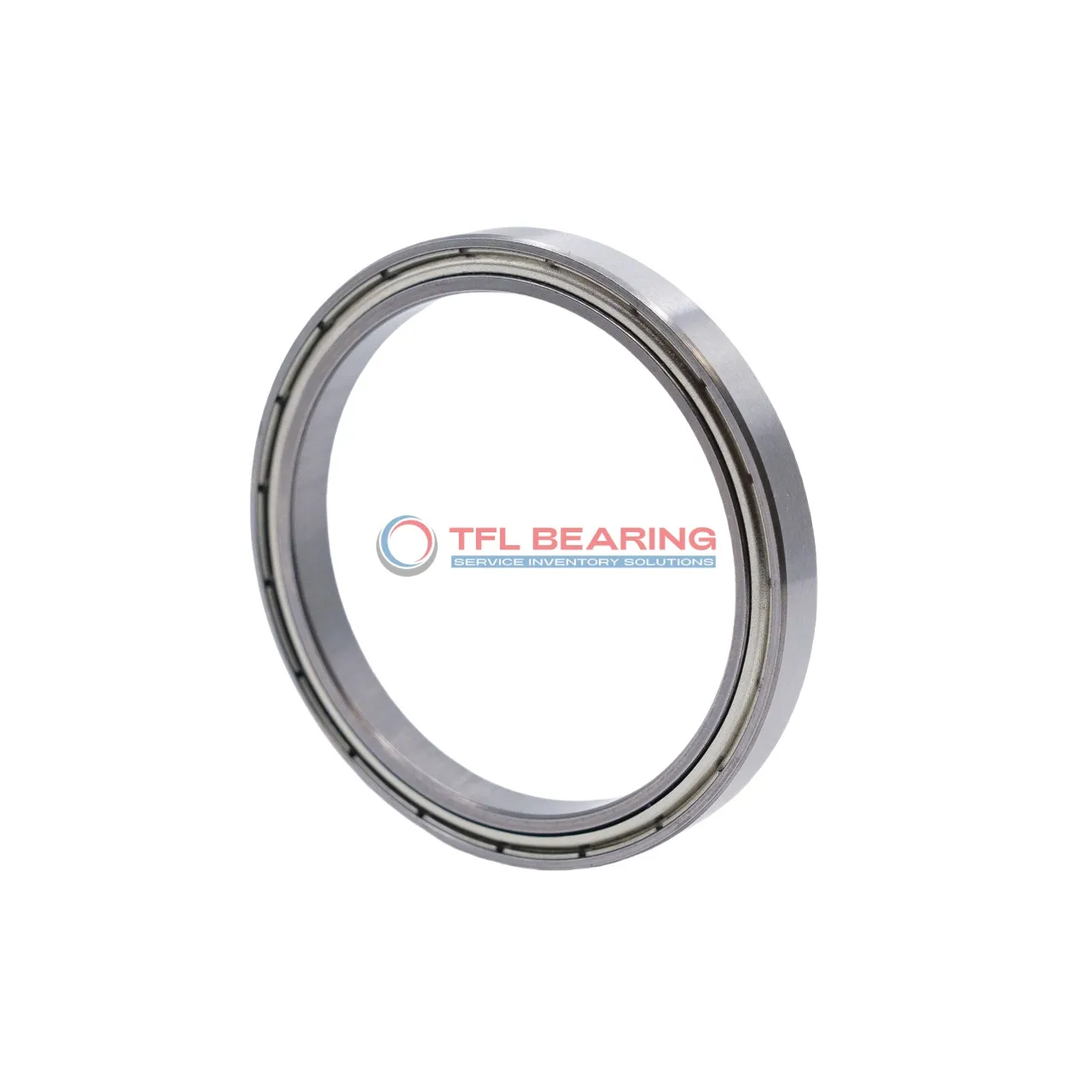

Thin Section Ball Bearings S6804zz

The S6804zz is a slim, shielded ball bearing measuring 20mm by 32mm by 7mm, crafted entirely from stainless steel for durability. It handles radial loads up to 813 lbf and spins smoothly at speeds up to 18,900 RPM.

Its shielded design keeps dust out while maintaining easy access for lubrication, ideal for long-term use. The bearing operates reliably in temperatures from -86°F to 230°F.

With a lightweight design at just 18g, it fits neatly into compact spaces without sacrificing strength. Perfect for small machinery or precision instruments where space is limited.

Compliant with RoHS and REACH standards, it’s a safe choice for various applications. The ABEC-1 tolerance ensures consistent performance for everyday industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6804zz
  • Brand TFL
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 813 lbf
  • Static Radial Load 498 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 18900 rpm
  • Weight 18 g
  • Price（$） 2
Thin Section Ball Bearings S6804zz dimension drawing
Download DWG Download PDF

Features

Performance Features of S6804zz Bearing

S6804zz Bearing is crafted with stainless steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity reaches 813 lbf, making it suitable for various applications.

The shielded design protects S6804zz Bearing from dust and debris, enhancing its durability.
With a maximum speed of 18,900 rpm, it ensures smooth operation in high-speed environments.

S6804zz Bearing operates efficiently in temperatures ranging from -86 to 230 °F.
Its compact size of 20 mm×32 mm×7 mm makes it ideal for space-constrained installations.

Application

Common Applications of S6804zz Bearing
S6804zz Bearing is widely used in automation systems, particularly in robotic arms where its thin section design saves space without compromising performance. The shielded seals help keep contaminants out, ensuring smooth operation in dusty environments.

In consumer electronics, S6804zz Bearing can be found in devices like printers and small fans, where its lightweight and compact size are advantageous. The stainless steel construction also makes it resistant to corrosion in humid conditions.

For medical equipment, S6804zz Bearing’s precision and reliability make it suitable for delicate instruments like surgical tools. Its ability to handle moderate radial loads ensures consistent performance in critical applications.

The automotive industry benefits from S6804zz Bearing in components like electric window mechanisms, where its low friction and durability are key. The ABEC-1 tolerance class provides sufficient precision for most standard applications.

In industrial settings, S6804zz Bearing is often used in conveyor systems where space constraints exist. Its high-speed capability and stainless steel materials make it a dependable choice for continuous operation.
