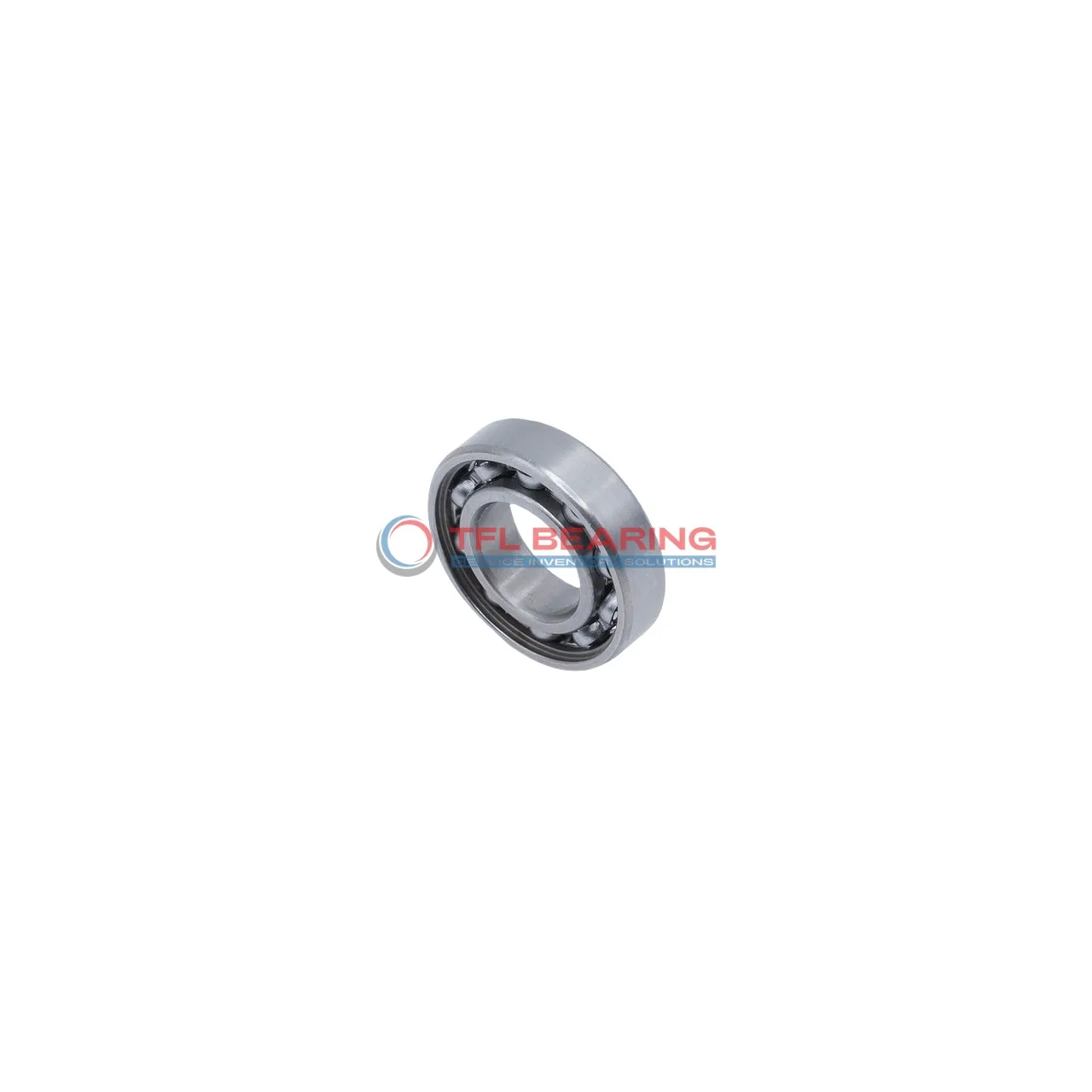

Thin Section Ball Bearings S63800

Thin Section Ball Bearings S63800

The S63800 is a slim radial ball bearing measuring 10mm by 19mm by 7mm, crafted entirely from stainless steel for durability. It supports radial loads up to 348 lbf and can spin at speeds up to 36,000 RPM.

Its open design simplifies lubrication, while the ABEC-1 tolerance ensures reliable performance. The bearing operates in temperatures from -86°F to 230°F, making it versatile for various conditions.

Weighing only 7.4 grams, it’s lightweight yet sturdy. Ideal for precision instruments or small machinery where space is limited. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S63800
  • Brand TFL
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 348 lbf
  • Static Radial Load 170 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 36000 rpm
  • Weight 7.4 g
  • Price（$） 3.2
Thin Section Ball Bearings S63800 dimension drawing
Download DWG Download PDF

Features

Performance Features of S63800 Bearing

S63800 Bearing is crafted with stainless steel rings and balls, offering excellent resistance to corrosion.
Its compact size of 10 mm×19 mm×7 mm makes it ideal for applications where space is limited.
The ABEC-1 tolerance ensures reliable performance, while the C0 radial clearance provides smooth operation.
With a maximum speed of 36,000 rpm, it delivers efficiency in high-speed radial load applications.

Application

Common Applications of S63800 Bearing
S63800 Bearing is widely used in industrial equipment, especially where space is limited, such as in small conveyor systems or compact machinery. Its thin section design offers a good balance between load capacity and size efficiency.

In the automotive sector, S63800 Bearing fits well in components like electric motors or gear mechanisms, thanks to its stainless steel construction. The ABEC-1 tolerance ensures reliable performance without overcomplicating the design.

For medical devices, S63800 Bearing is suitable for precision instruments like handheld surgical tools, where its lightweight and corrosion resistance are beneficial. The open seal type allows for easy cleaning and maintenance in sterile environments.

Automation and robotics often utilise S63800 Bearing in joints or small actuators, where its high-speed capability and durability are key. The C0 radial clearance provides smooth operation in repetitive motion applications.

In consumer electronics, S63800 Bearing can be found in devices like compact printers or small cooling fans. Its low weight and quiet operation make it a practical choice for everyday gadgets.
