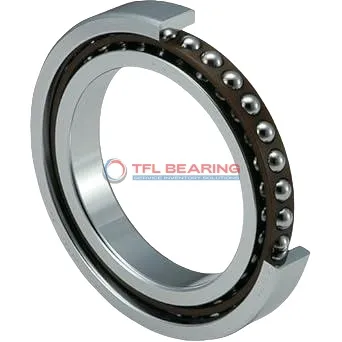

Super Precision Angular Contact Ball Bearings S71902 ACD/HCP4ADBA

Brand: TFL Bearing Interchangeable: SKF S71902 ACD/HCP4ADBA 15 mm × 28 mm × 14 mm Metric Sealed
Part number: S71902 ACD/HCP4ADBA
Super Precision Angular Contact Ball Bearings S71902 ACD/HCP4ADBA
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia15 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia28 mm
Outer Dia Tolerance-0.004mm to 0
Width14 mm
Width Tolerance-0.2mm to 0
Ball Dia3.969 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load1,390 lbf
Static Radial Load810 lbf
Temperature Range- 30°C to 110 °C
Max Speed95,000 rpm
Characteristics
Ball Qty13
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeSealed
Matched Arrangement2 bearings <> DB
Number Of Bearings In Matched Set2
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationGrease
Weight0.028 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S71902 ACD/HCP4ADBA is a super precision angular contact ball bearing, measuring 15mm by 28mm by 14mm. Made from chrome steel with ceramic balls, it offers smooth operation and durability.

With a 25° contact angle and sealed design, it handles radial loads up to 1390 lbf and spins at speeds up to 95,000 RPM. The phenolic cage ensures stability and reduces friction.

This matched set of two bearings comes with extra light preload for precise alignment. Ideal for high-speed applications like spindles or small machinery where accuracy is key.

Weighing just 0.028kg, it’s lightweight yet robust. Compliant with P4A tolerance standards, it’s a reliable choice for demanding environments. Works well in temperatures from -30°C to 110°C.

Features

Engineered for Precision: S71902 ACD/HCP4ADBA Bearing

S71902 ACD/HCP4ADBA Bearing features a 25° contact angle, optimised for high-precision angular contact applications.

The ceramic balls and chrome steel rings ensure smooth operation, even at speeds up to 95,000 rpm.

With a matched arrangement of two bearings, it provides extra light preload for consistent performance.

Its phenolic cage keeps the ceramic balls aligned, reducing friction and wear.

Application

Essential Roles of S71902 ACD/HCP4ADBA Bearing
S71902 ACD/HCP4ADBA Bearing is widely used in high-speed machine tools, where its ceramic balls and phenolic cage ensure smooth operation. The sealed design keeps contaminants out, making it ideal for precision environments.

In robotics, S71902 ACD/HCP4ADBA Bearing provides excellent angular contact support for articulated arms. Its extra-light preload reduces friction, enhancing movement accuracy in automated systems.

For medical imaging devices, S71902 ACD/HCP4ADBA Bearing’s P4A tolerance class guarantees consistent performance. The chrome steel rings and ceramic balls offer durability in critical diagnostic equipment.

Where Is S71902 ACD/HCP4ADBA Bearing Used?
S71902 ACD/HCP4ADBA Bearing finds its place in aerospace applications, handling radial and axial loads in compact spaces. The matched arrangement ensures balanced performance in demanding conditions.

In 3D printers, S71902 ACD/HCP4ADBA Bearing’s high-speed capability and precision are key for accurate layering. The grease lubrication extends its lifespan even with continuous use.

Built for Heavy-Duty Use: S71902 ACD/HCP4ADBA Bearing
S71902 ACD/HCP4ADBA Bearing excels in industrial pumps, where its sealed construction resists harsh fluids. The 25° contact angle efficiently manages combined loads.

For electric vehicle motors, S71902 ACD/HCP4ADBA Bearing’s ceramic balls reduce heat buildup. This makes it a reliable choice for high-efficiency, long-lasting performance.

Automotive vs Aerospace: Applications of S71902 ACD/HCP4ADBA Bearing
In automotive transmissions, S71902 ACD/HCP4ADBA Bearing handles high rotational speeds with minimal wear. The metric sizing ensures compatibility with global designs.

Aerospace systems benefit from S71902 ACD/HCP4ADBA Bearing’s lightweight and precision. Its temperature range suits both ground and flight conditions.
