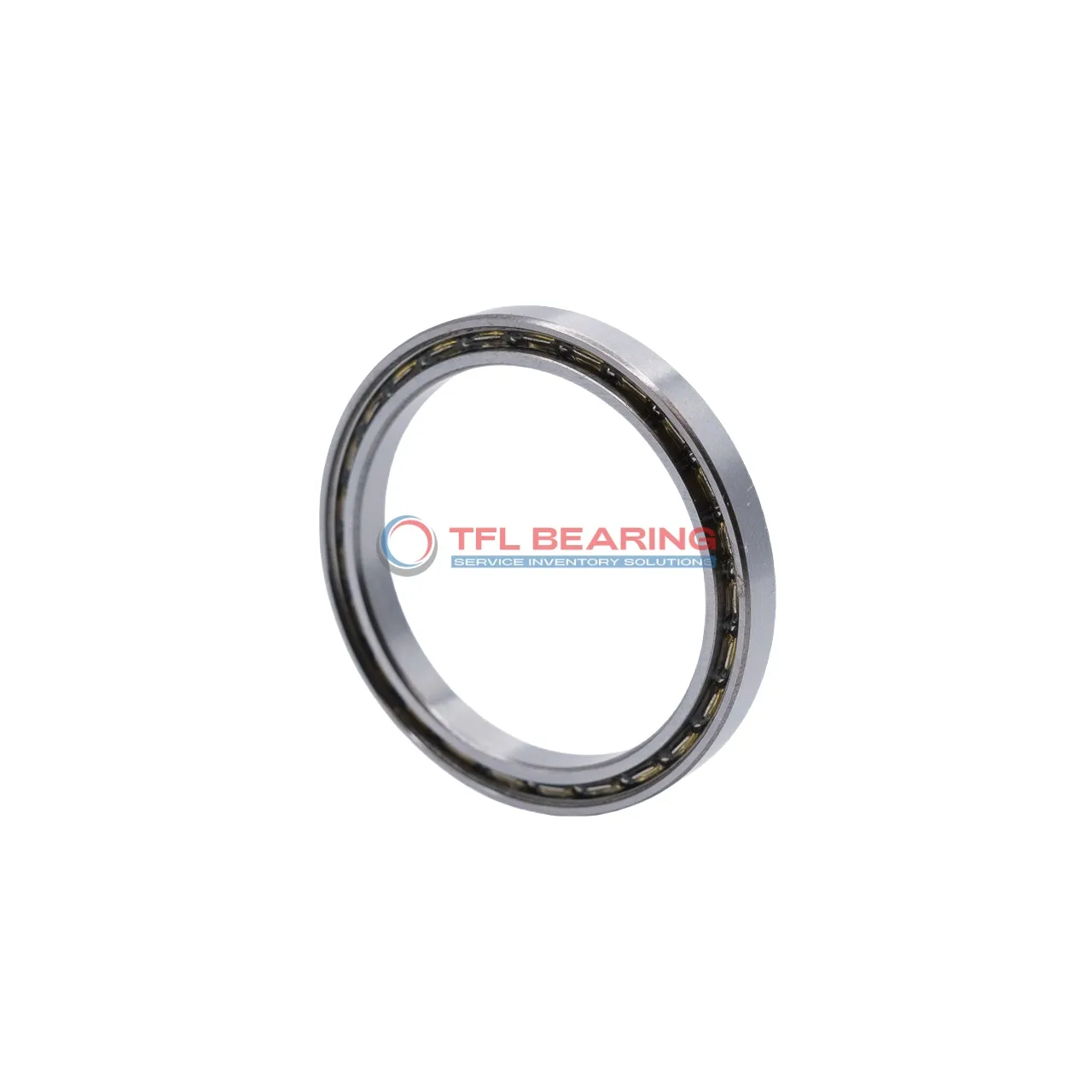

Thin Section Ball Bearings ER1634

Thin Section Ball Bearings ER1634

The ER1634 is a slim radial ball bearing with a compact size of 0.75″×1″×0.1562″, crafted from sturdy chrome steel for durability. It supports radial loads up to 227 lbf and spins smoothly at speeds up to 8000 RPM.

Its open design simplifies lubrication, while the stainless steel cage ensures reliable performance. The bearing operates well in temperatures ranging from -30°C to 110°C.

With ABEC-1 precision and C0 radial clearance, it offers consistent performance for light to moderate loads. Ideal for applications like small motors or precision instruments where space is limited.

Weighing just 4.22g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number ER1634
  • Brand TFL
  • Bore Dia 0.75"
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 1"
  • Outer Dia Tolerance -0.009mm to 0
  • Width 0.1562"
  • Width Tolerance -0.12mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 227 lbf
  • Static Radial Load 155 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 4.22 g
  • Price（$） 3
Thin Section Ball Bearings ER1634 dimension drawing
Download DWG Download PDF

Features

Performance Features of ER1634 Bearing

ER1634 Bearing is crafted with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity reaches 227 lbf, making it suitable for various applications.

The stainless steel cage ensures smooth operation by keeping the balls properly aligned.
With a maximum speed of 8,000 rpm, it balances efficiency and durability.

ER1634 Bearing operates within a temperature range of -30°C to 110°C, ensuring versatility.
Its ABEC-1 tolerance class provides consistent performance for precision tasks.

Application

Industrial Uses of ER1634 Bearing
ER1634 Bearing is commonly used in machine tools, where its thin section design saves space without compromising performance. The open seal allows for easy lubrication, keeping operations smooth in demanding conditions.

In robotics, ER1634 Bearing fits well in compact joints and arms, thanks to its precise radial load handling. The chrome steel construction ensures durability even with frequent movement.

For medical imaging devices, ER1634 Bearing’s lightweight and reliability make it a solid choice. Its ABEC-1 tolerance provides just the right balance of precision and cost-efficiency.

Around the house, ER1634 Bearing can be found in small appliances like fans, where quiet operation matters. The stainless steel cage helps reduce wear over time.
