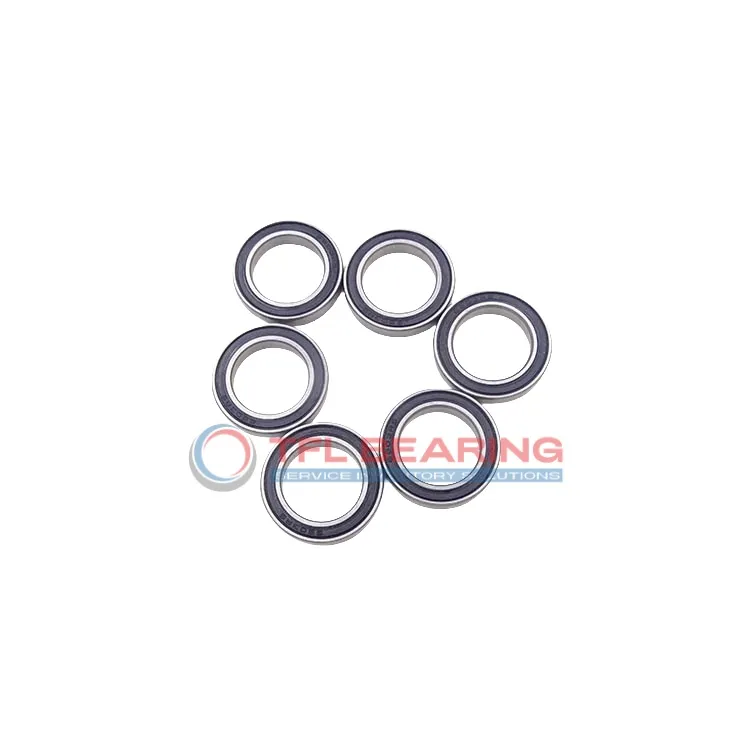

Thin Section Ball Bearings 6917 2rs

Thin Section Ball Bearings 6917 2rs

The 6917 2RS is a thin-section ball bearing with an 85mm bore and 120mm outer diameter, designed for radial loads. Its compact 18mm width makes it ideal for space-constrained applications.

Made from chrome steel with a stainless steel cage, it handles radial loads up to 7178 lbf and operates smoothly at speeds up to 6200 RPM. The sealed design keeps out contaminants and retains lubrication.

This bearing performs reliably in temperatures from -30°C to 110°C, suitable for various industrial environments. Its ABEC-1 tolerance ensures consistent performance without excessive precision requirements.

Weighing 535g, it’s a sturdy yet manageable choice for machinery like robotics or conveyor systems. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6917 2rs
  • Brand TFL
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance -0.200mm to 0
  • Radial Clearance 0.012mm to 0.036mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 7178 lbf
  • Static Radial Load 6660 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6200 rpm
  • Weight 535 g
  • Price（$） 4
Thin Section Ball Bearings 6917 2rs dimension drawing
Download DWG Download PDF

Features

Why Choose 6917 2rs Bearing for Precision Tasks?

6917 2rs Bearing features a sealed design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 7178 lbf, it handles demanding tasks with ease.
The ABEC-1 tolerance class guarantees consistent performance for precision requirements.

6917 2rs Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its stainless steel cage keeps the balls aligned, reducing friction and extending service life.

Application

Industrial Uses of 6917 2RS Bearing
6917 2RS Bearing is commonly used in industrial machinery, especially where space is limited but radial load support is essential, like in conveyor systems. Its sealed design helps keep contaminants out, extending the bearing’s life in dusty environments.

Where Is 6917 2RS Bearing Used?
You’ll often find 6917 2RS Bearing in automotive applications, such as electric motors and gearboxes, where its compact design and radial load capacity are beneficial. The chrome steel construction ensures durability even under continuous use.

Designed for Versatility: 6917 2RS Bearing
In automation and robotics, 6917 2RS Bearing is a reliable choice for robotic arms and precision equipment due to its consistent performance. The stainless steel cage adds extra resistance to wear, making it suitable for high-speed operations.

Medical vs Industrial: Where 6917 2RS Bearing Excels
While 6917 2RS Bearing works well in industrial settings, it’s also found in medical devices like imaging equipment, where smooth, quiet operation is key. The sealed design ensures hygiene and reduces maintenance needs.
