Thin Section Ball Bearings 6914zz

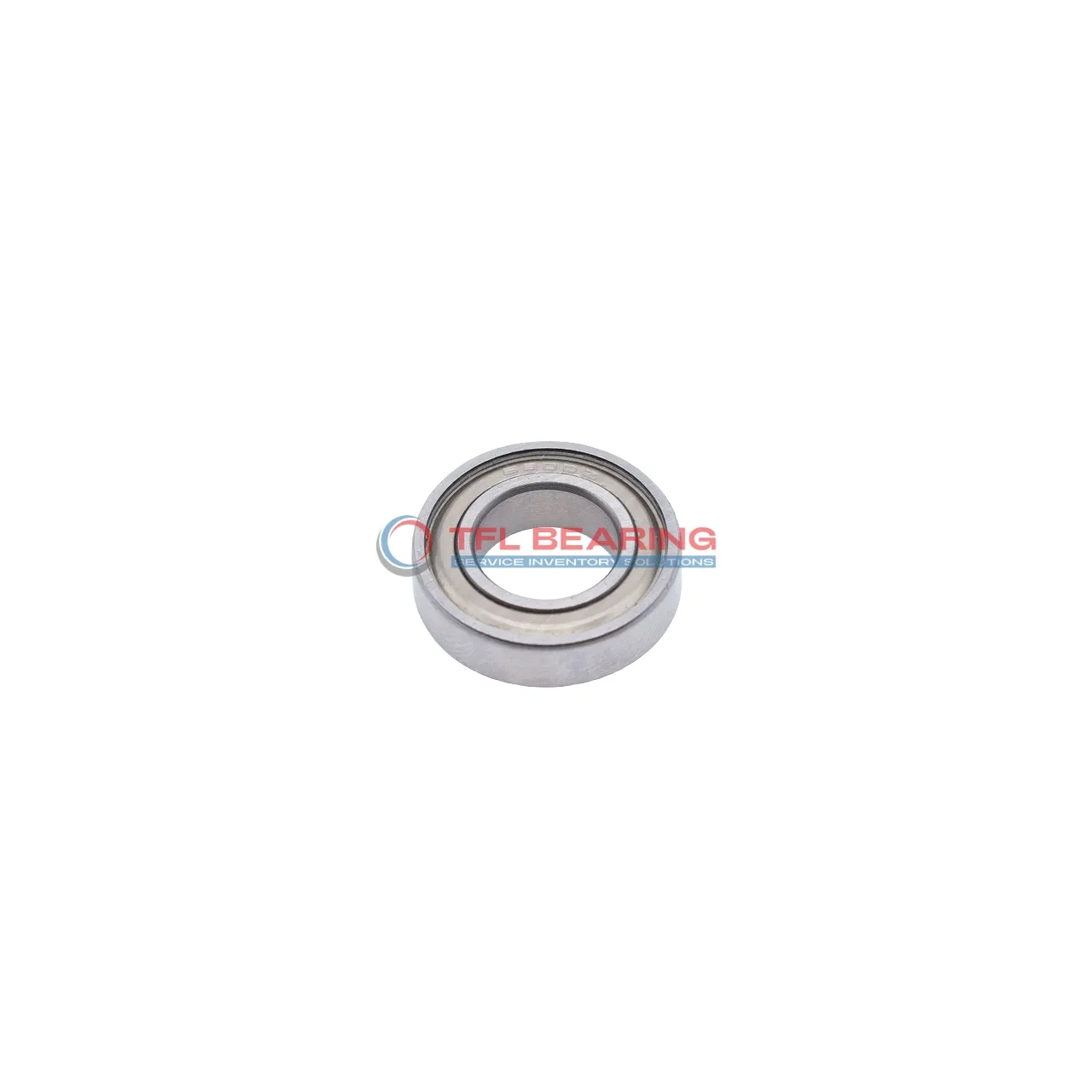

Thin Section Ball Bearings 6914zz

The 6914zz is a thin-section ball bearing with a 70mm bore and 100mm outer diameter, designed for radial loads. Its compact 16mm width makes it ideal for space-saving applications.

Made from chrome steel with stainless steel cage, it handles dynamic radial loads up to 5332 lbf. The shielded design helps keep dirt out while allowing speeds up to 7600 RPM.

This bearing operates smoothly in temperatures from -30°C to 110°C. It requires lubrication for optimal performance and comes with ABEC-1 precision standards.

Weighing 342g, it’s a sturdy choice for machinery where slim profiles are needed, like robotics or medical equipment. Compliant with RoHS and REACH regulations.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6914zz
  • Brand TFL
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 16 mm
  • Width Tolerance -0.150mm to 0
  • Radial Clearance 0.01mm to 0.03mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 5332 lbf
  • Static Radial Load 4748 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7600 rpm
  • Weight 342 g
  • Price（$） 3.2
Thin Section Ball Bearings 6914zz dimension drawing
Download DWG Download PDF

Features

How Does 6914zz Bearing Reduce Friction?

6914zz Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.

Its shielded design helps keep contaminants out, maintaining consistent performance over time.

The ABEC-1 tolerance class ensures reliable precision in radial load applications.

With a dynamic radial load capacity of 5332 lbf, it handles demanding tasks efficiently.

Application

Industrial Uses of 6914zz Bearing
6914zz Bearing is commonly used in machine tools, where its thin section design saves space without compromising load capacity. The shielded seals help keep contaminants out, extending service life in dusty workshops.

In robotics, 6914zz Bearing provides smooth rotation for joints and pivots, thanks to its precise ABEC-1 tolerance. The chrome steel construction ensures durability even with frequent directional changes.

For packaging equipment, 6914zz Bearing handles moderate radial loads in conveyor rollers and indexing tables. Its compact width fits neatly into tight spaces common in production line layouts.

Medical imaging devices benefit from 6914zz Bearing’s consistent performance and low noise operation. The stainless steel cage prevents corrosion in sterilised environments.

Home appliances like washing machines use 6914zz Bearing for drum support, where its balanced design reduces vibration. The C0 clearance offers reliable performance across typical household usage cycles.
