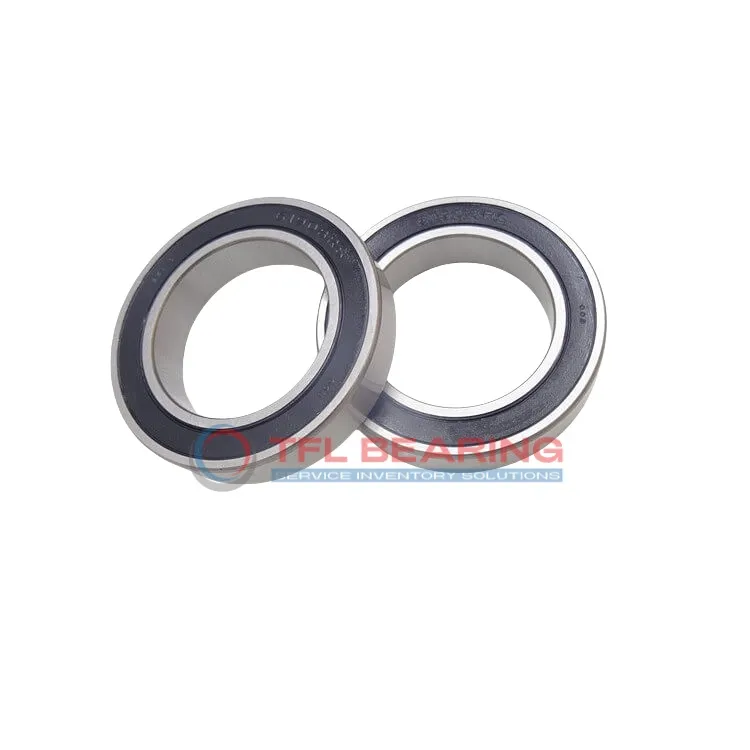

Thin Section Ball Bearings 6813 2rs

Thin Section Ball Bearings 6813 2rs

The 6813 2RS is a thin-section ball bearing with a 65mm bore and 85mm outer diameter, designed for radial loads. Its compact 10mm width makes it ideal for space-saving applications.

Sealed on both sides, this bearing keeps dirt out and grease in, ensuring smooth operation. It handles radial loads up to 2678 lbf and spins at speeds up to 8600 RPM.

Made from chrome steel with a stainless steel cage, it offers durability in temperatures from -30°C to 110°C. The ABEC-1 tolerance ensures reliable performance for most industrial uses.

Perfect for machinery where space is limited but performance can’t be compromised. Compliant with RoHS and REACH standards, it’s a safe choice for various applications. Weighing just 126g, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6813 2rs
  • Brand TFL
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 10 mm
  • Width Tolerance -0.150mm to 0
  • Radial Clearance 0.008mm to 0.028mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2678 lbf
  • Static Radial Load 2588 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8600 rpm
  • Weight 126 g
  • Price（$） 2.8
Thin Section Ball Bearings 6813 2rs dimension drawing
Download DWG Download PDF

Features

Why Choose 6813 2rs Bearing for Precision Tasks?

6813 2rs Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 2678 lbf, it handles demanding tasks with ease.
The ABEC-1 tolerance class guarantees reliable precision in various industrial uses.

Operating smoothly up to 8,600 rpm, it balances speed and stability.
Its compact 10 mm width makes it suitable for space-constrained installations.

Application

Industrial Uses of 6813 2rs Bearing
The 6813 2rs Bearing is commonly used in industrial machinery, especially where space is limited but radial load support is needed. Its thin section design makes it ideal for compact applications like conveyor rollers and packaging equipment.

Where Is 6813 2rs Bearing Used?
You’ll often find 6813 2rs Bearing in automotive components such as electric motors and steering systems. Its sealed design helps keep out contaminants, ensuring reliable performance in demanding conditions.

Built for Versatility: 6813 2rs Bearing
In automation and robotics, 6813 2rs Bearing provides smooth operation for robotic arms and linear actuators. The chrome steel construction offers durability, while the stainless steel cage adds extra resistance to wear.

Medical vs Industrial: Where 6813 2rs Bearing Excels
For medical devices like diagnostic equipment, 6813 2rs Bearing delivers consistent performance due to its precise tolerances. In industrial settings, it’s a go-to for light-duty machinery requiring reliable radial load support.

Perfect Fit for Automation: 6813 2rs Bearing
The 6813 2rs Bearing works well in 3D printers and CNC machines, where its low-profile design and sealed construction are advantageous. Its ABEC-1 tolerance ensures smooth, consistent movement in precision applications.
