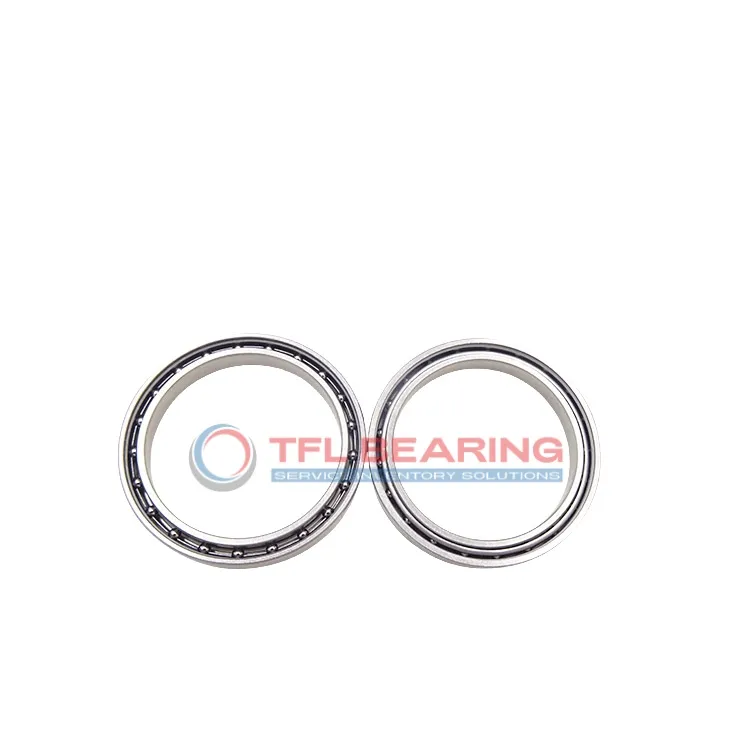

Thin Section Ball Bearings 6705

Thin Section Ball Bearings 6705

The 6705 is a slim radial ball bearing measuring 25mm by 32mm by 4mm, crafted from sturdy chrome steel for reliable performance. It supports radial loads up to 248 lbf and can spin at speeds reaching 8000 RPM.

Its open design simplifies lubrication, while the stainless steel cage ensures smooth operation. With a radial clearance of 0.006mm to 0.020mm, it offers precise movement for delicate applications.

This bearing is ideal for compact machinery or devices where space is limited, such as small motors or precision instruments. It performs well in temperatures from -30°C to 110°C.

Weighing only 7.1g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6705
  • Brand TFL
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 4 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 248 lbf
  • Static Radial Load 189 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 7.1 g
  • Price（$） 2.8
Thin Section Ball Bearings 6705 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6705 Bearing

6705 Bearing is crafted with chrome steel rings and balls, offering reliable radial load support.
Its compact design, at just 4 mm width, makes it ideal for space-constrained applications.
The stainless steel cage ensures smooth ball movement, enhancing operational efficiency.
With a maximum speed of 8,000 rpm, it delivers consistent performance in various conditions.

How Is 6705 Bearing Engineered for Reliability?

6705 Bearing features a single-row construction, providing stability under radial loads up to 248 lbf.
The ABEC-1 tolerance class ensures precise operation, suitable for general-purpose applications.
Its open design allows for easy lubrication, maintaining smooth performance over time.
Operating between -30°C to 110°C, it adapts well to diverse environmental conditions.

Built for Efficiency: 6705 Bearing

6705 Bearing’s thin section design maximises space efficiency without compromising strength.
The C0 radial clearance range (0.006mm to 0.020mm) ensures smooth rotation and reduced friction.
Chrome steel components resist wear, extending the bearing’s service life.
Weighing only 7.1 g, it is lightweight yet durable for various industrial uses.

Open vs Sealed Bearings: Benefits of 6705 Bearing

6705 Bearing’s open design simplifies lubrication, ensuring optimal performance with minimal maintenance.
The chrome steel construction resists corrosion, making it suitable for demanding environments.
Its lightweight build and compact dimensions allow for versatile application across industries.
With a static radial load capacity of 189 lbf, it provides reliable support in precision tasks.

Application

Common Applications of 6705 Bearing
The 6705 Bearing is a great fit for compact machinery where space is tight, like small electric motors or precision instruments. Its thin section design doesn’t compromise on load capacity, making it versatile for various settings.

In robotics, 6705 Bearing works well in joint mechanisms, thanks to its smooth radial movement and lightweight build. The open seal design also simplifies lubrication, which is handy for maintenance.

For consumer electronics, such as printers or small fans, 6705 Bearing offers quiet operation and reliable performance. The chrome steel construction ensures it holds up well over time, even with frequent use.

Medical devices like handheld diagnostic tools benefit from 6705 Bearing’s precision and low friction. Its ABEC-1 tolerance class provides just the right balance of accuracy and cost-effectiveness for these applications.
