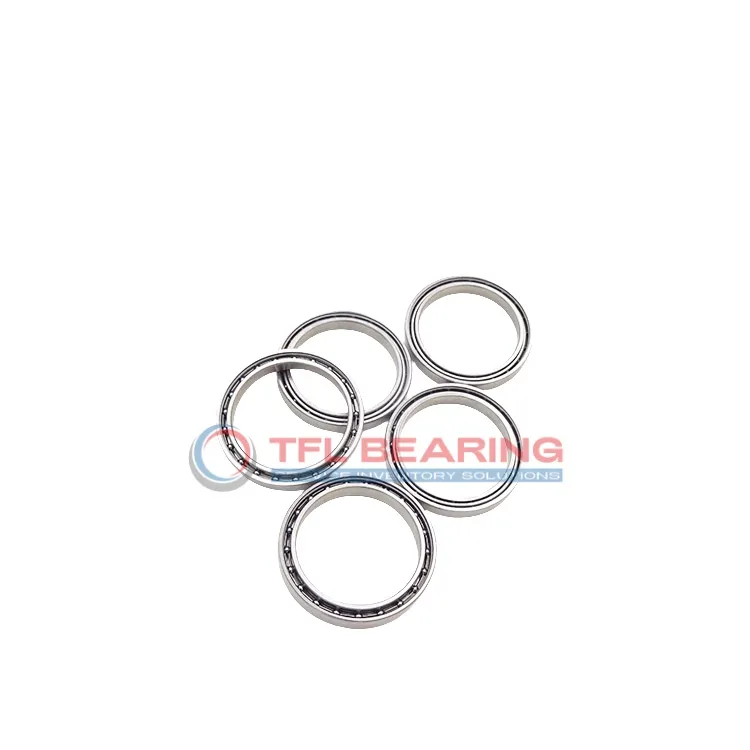

Thin Section Ball Bearings 63802

Thin Section Ball Bearings 63802

The 63802 is a compact thin-section ball bearing with a 15mm bore and 24mm outer diameter, measuring just 7mm wide. Made from chrome steel, it offers reliable radial load support up to 466 lbf.

Its open design allows for easy lubrication, while the stainless steel cage ensures smooth operation at speeds up to 31,000 RPM. The bearing performs well in temperatures from -30°C to 110°C.

With ABEC-1 precision and C0 radial clearance, it provides consistent performance for light to moderate loads. Ideal for applications like small motors or precision instruments where space is limited.

Weighing only 10g, it’s a lightweight yet durable choice. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 63802
  • Brand TFL
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 24 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 466 lbf
  • Static Radial Load 284 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 31000 rpm
  • Weight 10 g
  • Price（$） 2.8
Thin Section Ball Bearings 63802 dimension drawing
Download DWG Download PDF

Features

Performance Features of 63802 Bearing

63802 Bearing is designed with chrome steel rings and balls, offering strong radial load capacity up to 466 lbf.

Its compact size of 15 mm×24 mm×7 mm makes it ideal for applications where space is limited.

The stainless steel cage ensures smooth operation, even at high speeds of up to 31,000 rpm.

With a temperature range of -30°C to 110°C, it performs reliably in various conditions.

Application

Common Applications of 63802 Bearing
63802 Bearing is widely used in industrial automation, particularly in compact machinery where space is limited. Its thin section design makes it ideal for applications like small conveyor systems and precision instruments.

In robotics, 63802 Bearing provides smooth rotation for joints and arms, thanks to its reliable radial load capacity. The open seal design allows for easy lubrication, ensuring long service life in continuous operations.

For consumer electronics, 63802 Bearing can be found in devices like printers and small fans, where its lightweight construction and efficiency are key. The chrome steel rings offer durability without adding unnecessary bulk.

Medical equipment also benefits from 63802 Bearing’s precision, especially in handheld diagnostic tools. Its ABEC-1 tolerance ensures consistent performance in sensitive applications.
