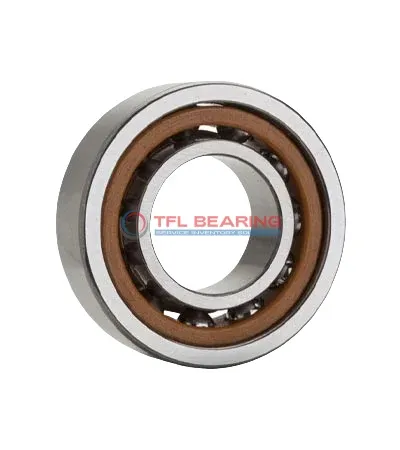

Super Precision Angular Contact Ball Bearings S7213 CD/HCP4A

Brand: TFL Bearing Interchangeable: SKF S7213 CD/HCP4A 65 mm × 120 mm × 23 mm Metric Sealed
Part number: S7213 CD/HCP4A
Super Precision Angular Contact Ball Bearings S7213 CD/HCP4A
In Stock
US$672.76 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia65 mm
Bore Dia Tolerance-0.007mm to 0
Outer Dia120 mm
Outer Dia Tolerance-0.008mm to 0
Width23 mm
Width Tolerance-0.2mm to 0
Ball Dia15.875 mm
Performance
PreloadAvailable
Dynamic Radial Load14,918 lbf
Static Radial Load11,925 lbf
Temperature Range-30° to 110 °C
Max Speed15,000 rpm
Characteristics
Ball Qty15
Contact Angle15°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.88 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S7213 CD/HCP4A is a super precision angular contact ball bearing with a 65mm bore and 120mm outer diameter, crafted from chrome steel for durability. It handles radial loads up to 14918 lbf and reaches speeds of 15000 RPM, thanks to its ceramic balls and phenolic cage.

Its sealed design keeps lubrication in and contaminants out, ensuring smooth operation. The 15° contact angle and P4 tolerance class make it ideal for high-precision applications.

This bearing is available with preload and matched arrangements, offering flexibility for complex setups. It works well in temperatures from -30°C to 110°C.

Weighing 0.88kg, it’s a robust choice for machine tools or high-speed spindles. Interchangeable with SKF bearings, it’s a reliable option for replacements or upgrades.

Features

Performance Features of S7213 CD/HCP4A Bearing

S7213 CD/HCP4A Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction.

The phenolic cage ensures smooth operation, even at high speeds up to 15,000 rpm.
With a dynamic radial load capacity of 14918 lbf, it handles demanding conditions reliably.

Precision-engineered to P4 tolerance class, S7213 CD/HCP4A Bearing delivers consistent performance.
Its sealed design and preload availability make it suitable for various industrial applications.

The bearing operates efficiently within a temperature range of -30° to 110°C.
Its lubricated design ensures long service life with minimal maintenance.

Application

Industrial Uses of S7213 CD/HCP4A Bearing
S7213 CD/HCP4A Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it suitable for continuous operation.

In aerospace applications, S7213 CD/HCP4A Bearing handles both radial and axial loads in components like turbine shafts. Its sealed design protects against contaminants, extending service life in demanding conditions.

For automation systems, S7213 CD/HCP4A Bearing provides reliable performance in robotic arms and CNC machinery. The phenolic cage offers stability, even at high rotational speeds.

Medical imaging devices benefit from S7213 CD/HCP4A Bearing’s smooth operation and low vibration. The P4 tolerance class ensures consistent accuracy in sensitive equipment.
