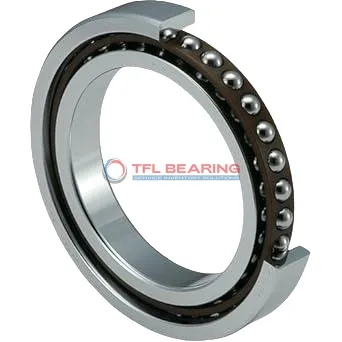

Super Precision Angular Contact Ball Bearings S7201 CDGA/HCP4A

Brand: TFL Bearing Interchangeable: SKF S7201 CDGA/HCP4A 12 mm × 32 mm × 10 mm Metric Sealed
Part number: S7201 CDGA/HCP4A
Super Precision Angular Contact Ball Bearings S7201 CDGA/HCP4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia12 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia32 mm
Outer Dia Tolerance-0.004mm to 0
Width10 mm
Width Tolerance-0.2mm to 0
Ball Dia5.556 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load1,316 lbf
Static Radial Load574 lbf
Temperature Range- 30°C to 110 °C
Max Speed0 rpm
Characteristics
Ball Qty10
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementNo
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationGrease
Weight0.034 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S7201 CDGA/HCP4A is a super precision angular contact ball bearing measuring 12mm by 32mm by 10mm, crafted from chrome steel with ceramic balls for enhanced performance. It handles radial loads up to 1316 lbf and operates smoothly in temperatures from -30°C to 110°C.

With a 15° contact angle and sealed design, it offers reliable performance in high-speed applications. The phenolic cage ensures durability while the grease lubrication simplifies maintenance.

This bearing is part of a universal matching set, suitable for back-to-back, face-to-face, or tandem arrangements. Ideal for precision machinery like spindles or CNC equipment where accuracy is key.

Weighing just 0.034kg, it’s lightweight yet robust, meeting P4A tolerance standards for exceptional precision. Interchangeable with SKF bearings for easy replacement.

Features

Performance Features of S7201 CDGA/HCP4A Bearing

S7201 CDGA/HCP4A Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
The chrome steel rings and ceramic balls enhance durability while reducing friction for smoother operation.

Its extra light preload ensures precise performance, making it suitable for high-precision tasks.
The phenolic cage maintains ball alignment, contributing to longer service life and consistent performance.

With a dynamic radial load capacity of 1316 lbf, S7201 CDGA/HCP4A Bearing handles demanding conditions reliably.
The sealed design and grease lubrication reduce maintenance needs, even in challenging environments.

Application

Key Fields for S7201 CDGA/HCP4A Bearing
S7201 CDGA/HCP4A Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it suitable for high-speed operations.

In robotics, S7201 CDGA/HCP4A Bearing provides smooth motion control for articulated arms, thanks to its extra light preload. The phenolic cage adds durability in repetitive movement scenarios.

For medical imaging devices, S7201 CDGA/HCP4A Bearing’s sealed design keeps contaminants out, maintaining performance in sterile environments. Its P4A tolerance class guarantees the precision needed for diagnostic equipment.

In automotive electric motors, S7201 CDGA/HCP4A Bearing handles both radial and axial loads efficiently. The grease lubrication ensures quiet operation, ideal for hybrid and electric vehicles.

Consumer electronics like high-end printers benefit from S7201 CDGA/HCP4A Bearing’s compact size and reliability. The chrome steel rings provide long-lasting performance in daily use.
