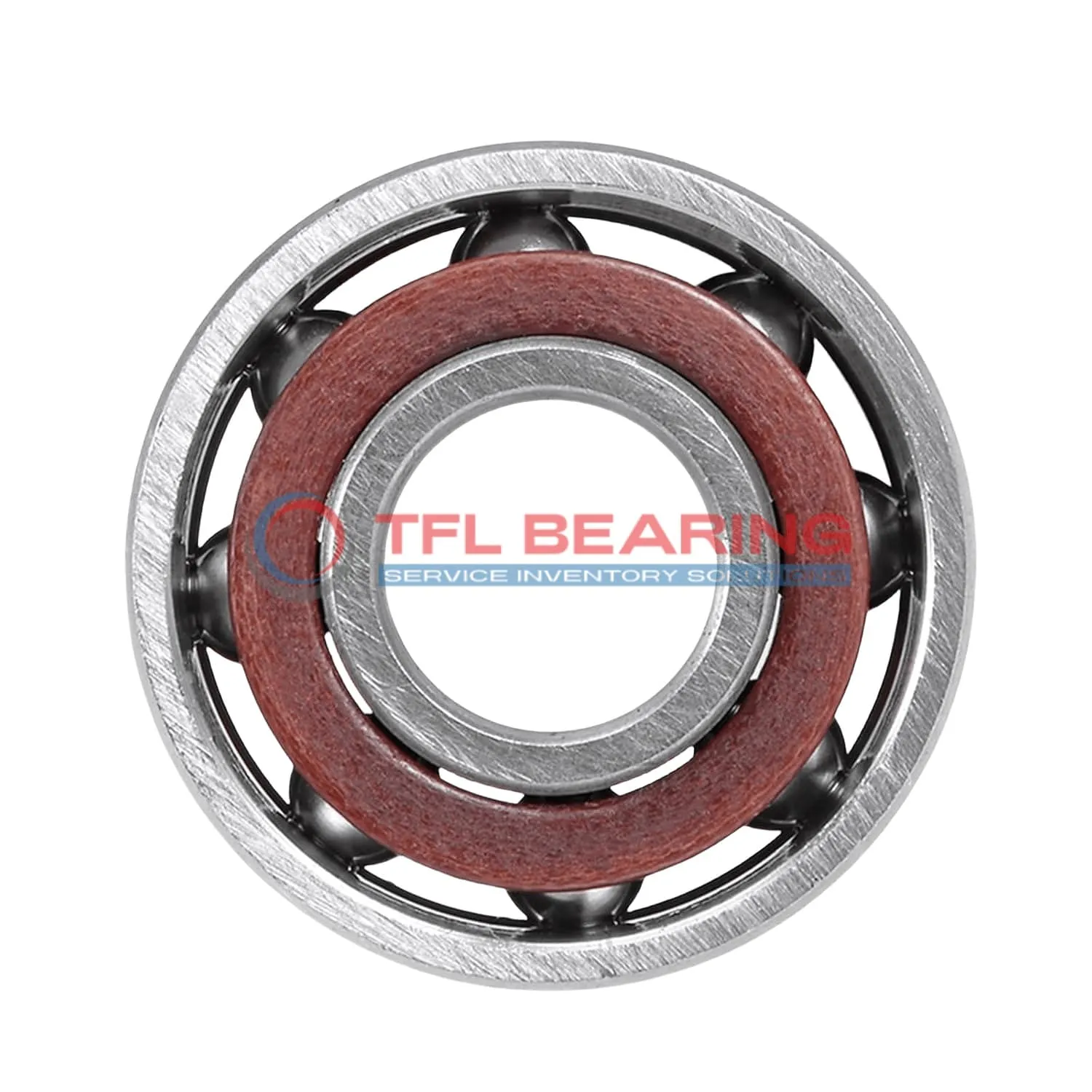

Super Precision Angular Contact Ball Bearings S71922 CB/HCP4A

Brand: TFL Bearing Interchangeable: SKF S71922 CB/HCP4A 110 mm × 150 mm × 20 mm Metric Sealed
Part number: S71922 CB/HCP4A
Super Precision Angular Contact Ball Bearings S71922 CB/HCP4A
In Stock
US$1,694.12 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia110 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia150 mm
Outer Dia Tolerance-0.009mm to 0
Width20 mm
Width Tolerance-0.2mm to 0
Ball Dia8.731 mm
Performance
PreloadAvailable
Dynamic Radial Load5,850 lbf
Static Radial Load6,075 lbf
Temperature Range-30° to 110 °C
Max Speed14,000 rpm
Characteristics
Ball Qty37
Contact Angle15°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.87 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S71922 CB/HCP4A is a super precision angular contact ball bearing with a 110mm bore and 150mm outer diameter, crafted from durable chrome steel. Its compact 20mm width makes it suitable for space-sensitive applications.

With a 15° contact angle, it handles both radial and axial loads efficiently, supporting up to 5850 lbf dynamically. The ceramic balls and phenolic cage ensure smooth operation at speeds up to 14,000 RPM.

Sealed for protection, this bearing comes pre-lubricated and is available with preload options for precise performance. It operates reliably in temperatures from -30°C to 110°C.

Ideal for high-precision machinery like CNC spindles or medical equipment, it meets P4 tolerance standards for exceptional accuracy. Weighing 0.87kg, it balances strength and lightweight design.

Features

Performance Features of S71922 CB/HCP4A Bearing

S71922 CB/HCP4A Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and ceramic balls enhance durability while reducing friction.

The phenolic cage ensures smooth operation, even at high speeds up to 14,000 rpm.
With a dynamic radial load capacity of 5850 lbf, it delivers reliable performance in precision tasks.

S71922 CB/HCP4A Bearing operates efficiently within a temperature range of -30° to 110°C.
Its sealed design and lubrication reduce maintenance needs, making it a practical choice.

Application

Industrial Uses of S71922 CB/HCP4A Bearing
S71922 CB/HCP4A Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it suitable for high-speed operations.

Where Is S71922 CB/HCP4A Bearing Used?
In automotive applications, S71922 CB/HCP4A Bearing supports components like turbochargers and transmission systems, thanks to its ability to handle both radial and axial loads. The sealed design helps keep contaminants out, extending its lifespan.

Perfect Fit for Automation: S71922 CB/HCP4A Bearing
S71922 CB/HCP4A Bearing works well in robotic arms and automated assembly lines, where precision and reliability are key. The phenolic cage provides stability, even under continuous use.

Medical vs Industrial: Where S71922 CB/HCP4A Bearing Excels
S71922 CB/HCP4A Bearing is ideal for medical imaging devices, offering smooth and quiet operation. In industrial settings, it’s often found in pumps and compressors, where its high-speed capability is a plus.

Light-Duty vs Heavy-Duty: Best Uses for S71922 CB/HCP4A Bearing
For light-duty applications, S71922 CB/HCP4A Bearing is great in small electric motors and precision instruments. In heavy-duty scenarios, it performs well in large industrial gearboxes and heavy machinery.
